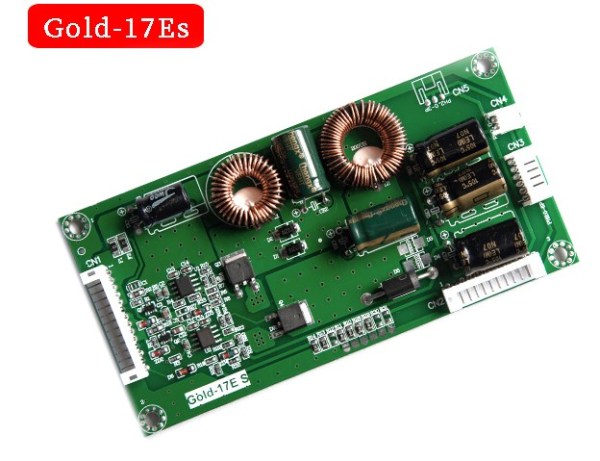

GOLD-17E 26-55inch CA288 Universal Backlight Driver
$80.06
$127.29

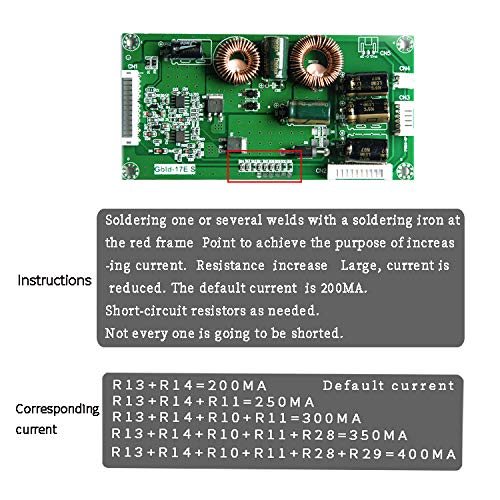

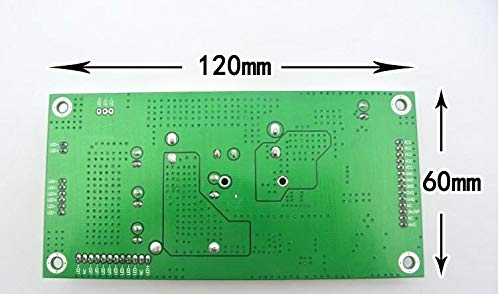

Model Name Gold-17E Input voltage-10-26v. Output Voltage-65-165v Output Current-10-1000MA 36-W. Size: 120mm*60mm, 26-55inch led TV Constant Current Board. Application – LCD LED TV, Monitor. Please Carefully Match of This Product And Your Item to make Sure you Purchase The Same Product. Professional skills are needed while installing. backlight driver board The operating voltage of the light bar must be any voltage between 65V and 165. Can’t be lower than 65V, if it is lower than 65V, you can choose to buy other goods in our store. Can not be higher than 165V, the design working limit voltage condition of this product shall not be higher than 165V. If this voltage is exceeded, the screen may be dark or the lamp may flicker. This product only has constant current, no constant voltage, and the voltage will be automatically adjusted to the corresponding voltage according to the required voltage of the light bar, so you do not need to entangle the voltage measured at no load. Model Name Gold-17E Size 120mm*60mm Input Voltage10-26v Output Voltage65-165v Output Current10-1000MA Power 26-55inch constant current board for led TV
