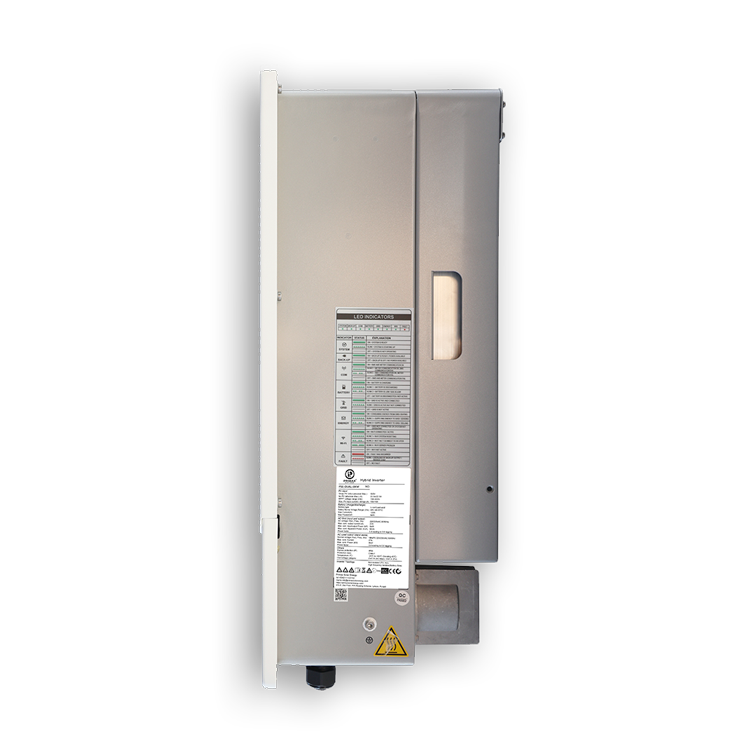

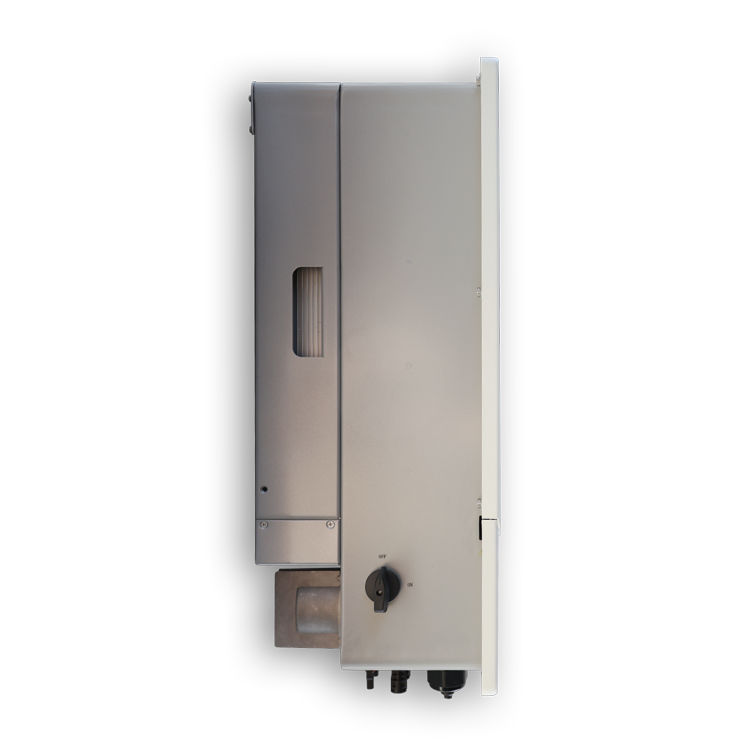

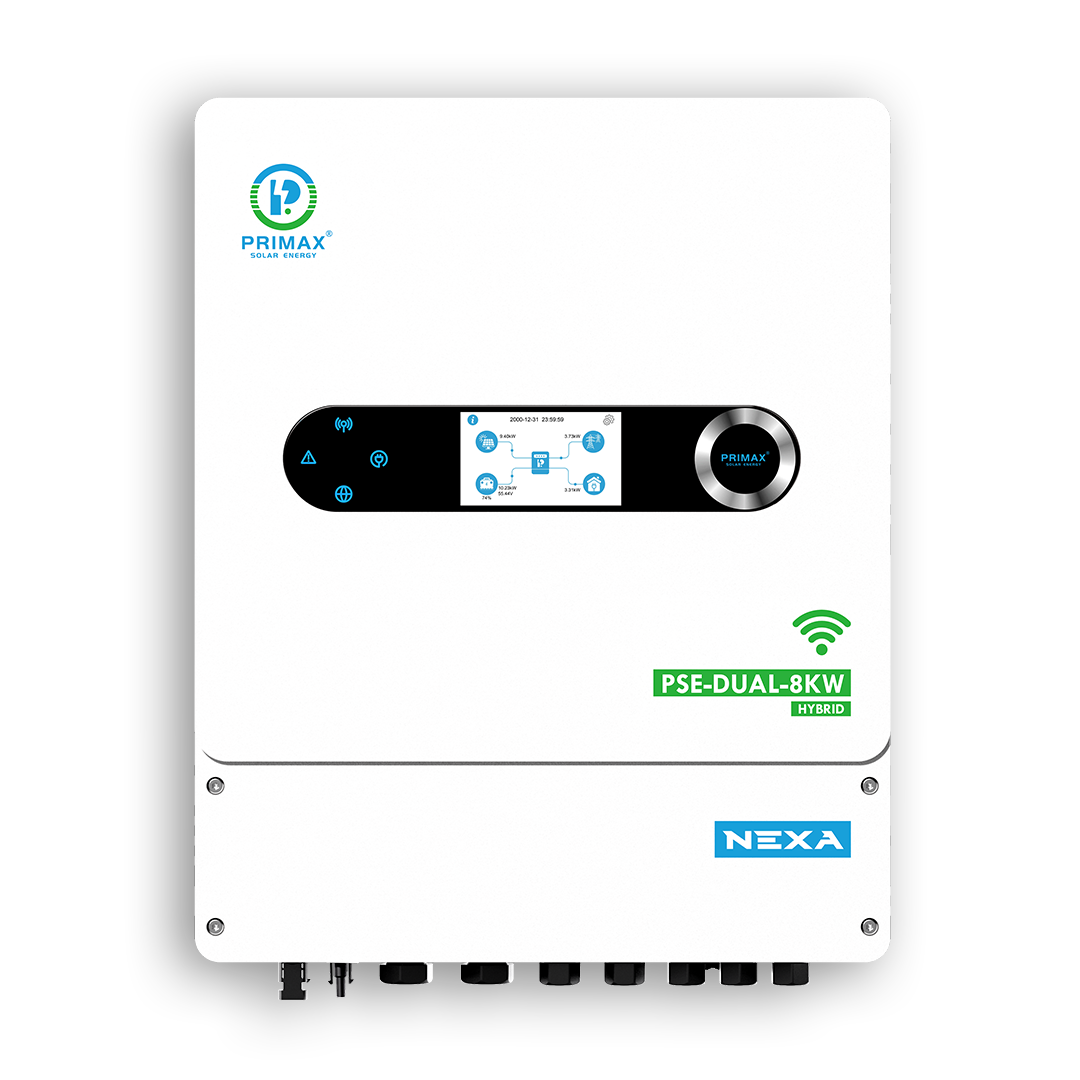

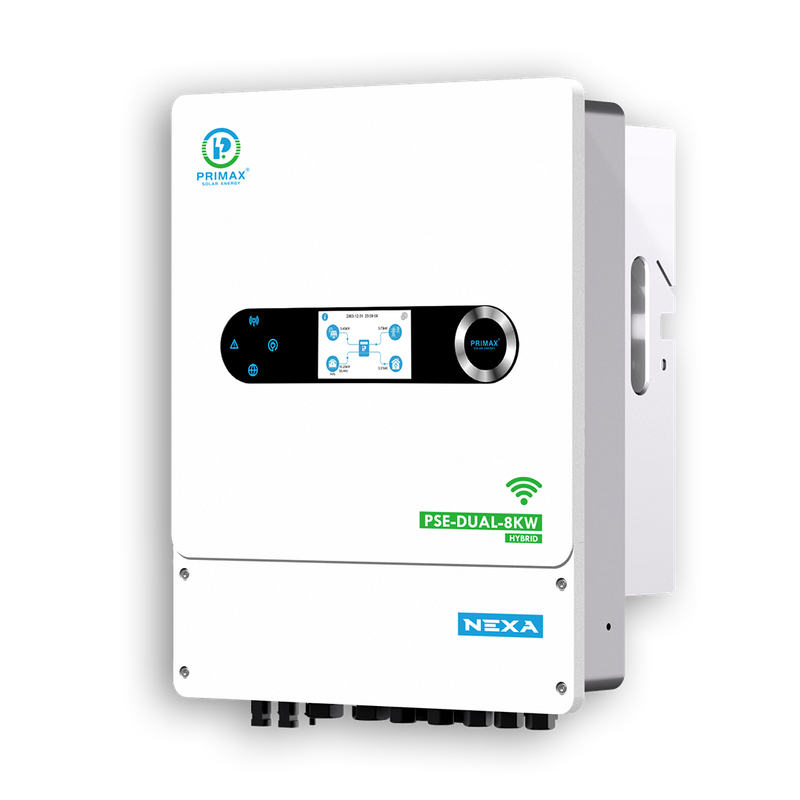

NEXA PSE-DUAL-8KW – HYBRID SOLAR INVERTER

MAX. DC Input Power (W):  12000 MAX. DC Input Voltage (V):   500 MPPT Voltage Range (V):  150-450 Starting Voltage (V):  125 MAX. Input Current (A):  30/18 Number of MPPT:  2 String / MPPT:  2/1 Rated Output Power (W):  8000 MAX Output Current (A):  27 Battery Type:  Lithium / Lead Acid Rated Battery Voltage (V):  48 Voltage Range (V):  44-57 MAX. Charge/Discharge Current (A):  120A BMS Communication:  CAN/RS485 Size (W x H x D) mm:  424 x 555 x 197 Weight (kg): 19
