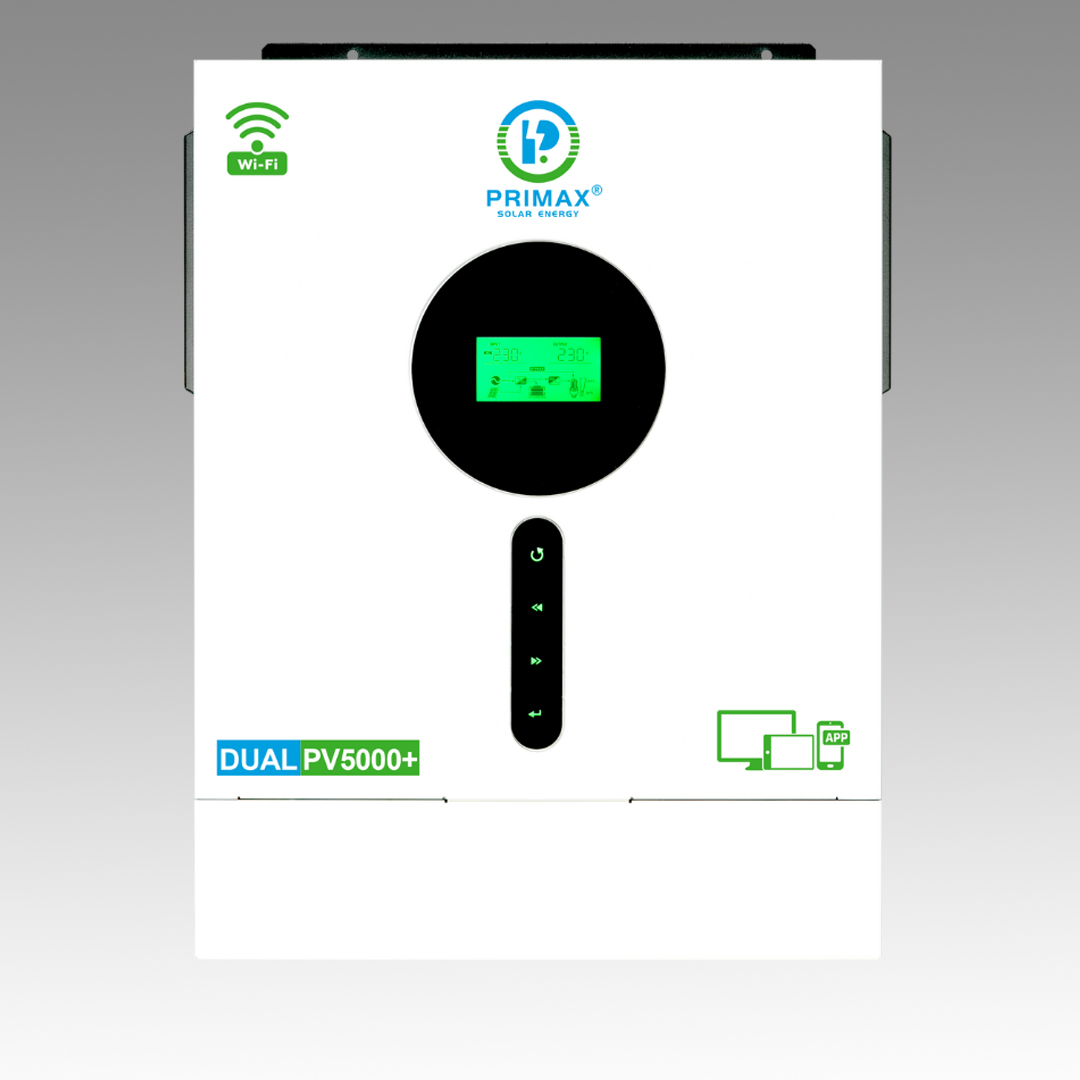

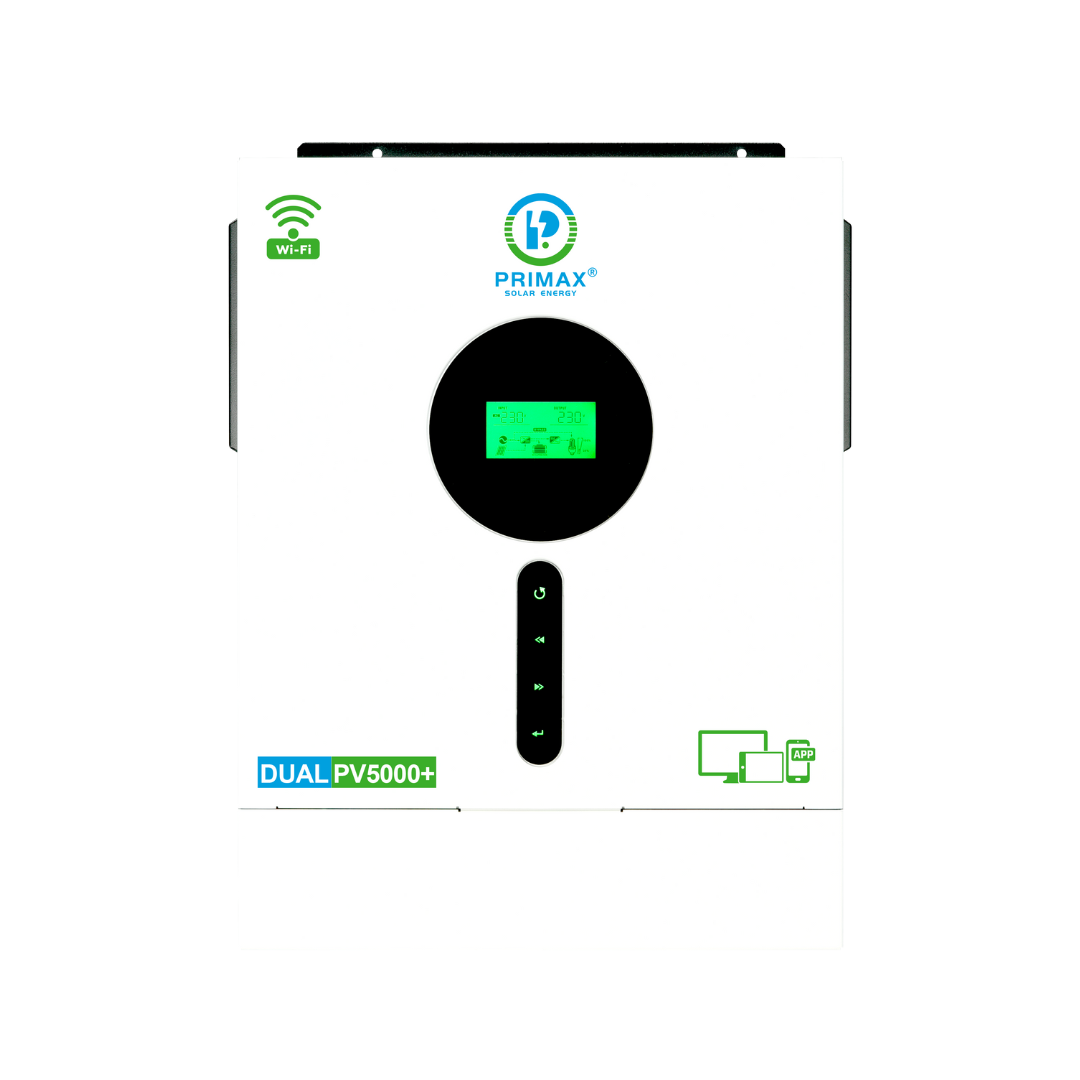

HYBRID SOLAR INVERTER – GALAXY DUAL PV5000

HYBRID SOLAR INVERTER – GALAXY DUAL PV5000 Download PDF RATED POWER 3600VA/3600W INPUT Voltage 230VAC Selectable Voltage Range 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) Frequency Range 50Hz/60Hz(Auto Sensing) OUTPUT AC Voltage Regulation (Batt. Mode) 230VAC -10% Surge Power 7200VA Efficiency (Peak) 93% Transfer Time 10ms (For Personal Computers) 20ms (For Home Appliances) Waveform Pure Sine Wave BATTERY Battery Voltage 24VDC Floating Charge Voltage 27VDC Overcharge Protection 33VDC SOLAR CHARGER & AC CHARGER Solar Charger Type MPPT Maximum PV Array Open Circuit Voltage 500VDC Maximum PV Array Power 5000W MPPT Range@ Operating Voltage Maximum PV Input Current 90¬450V DC 27A Maximum Solar Charge Current 120A Maximum AC Charge Current 100A Maximum Charge Current 120A PHYSICAL Dimension D*W*H(mm) Net Weight (Kgs) 107*322.6*420.3 9.5 Communication Interface USB/RS232 OPERATING ENVIRONMENT Humidity 5% to 95% Relative Humidity (Non-Condensing) Operating Temperature -10¬50C Storage Temperature -15¬60C
