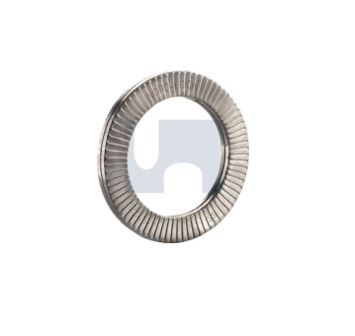

DescriptionNord-Lock original washers are recognized around the world for their ability to secure bolted joints exposed to severe vibration and dynamic loads. The washers increase operational reliability and lower your maintenance costs, while significantly reducing the risks of unplanned production stops, accidents and warranty claims.Applications Nord-Lock washers cannot loosen unintentionally as a wedge-effect is created underneath the bolt head/nut. Our extensive range includes washers in various materials and sizes. Nord-Lock washers are available in two outer diameters — standard and enlarged. Washers with an enlarged outer diameter (SP washers) are ideal for use on large holes, sensitive surfaces and soft materials. Nord-Lock SP washers suit flanged bolts/nuts for optimum load distribution.Advantages – Nord-Lock original washers secure bolted joints exposed to severe vibration and dynamic loads – Available in a wide range of materials to suit use in general steel and stainless steel applications, and in corrosive, acidic and high-temperature environments – Locking function not affected by lubrication – Achieves accurate preload with defined and uniform friction – Available in a wide range of sizes (metric and imperial) – Designed for bolts up to and including property class 12.9 (steel) and A4-80 (stainless steel) – High corrosion resistance (minimum 1,000 hours in salt spray test according to ISO 9227) for steel washers – Reusable (depending on conditions of use)[CLICK HERE FOR PRODUCT BROCHURE] PartDescriptionProductFinishSizeLengthWN16DPM03316 NORD-L STD WASH:M3(#5)STANDARD WASHER316L STAINLESSM3(#5)7.0×2.2WN16DPM035316 NORD-L STD WASH:M3.5(#6)STANDARD WASHER316L STAINLESSM3.5(#6)7.6×2.2WN16DPM04316 NORD-L STD WASH:M4(#8)STANDARD WASHER316L STAINLESSM4(#8)7.6×2.2WN16DPM05316 NORD-L STD WASH:M5(#10)STANDARD WASHER316L STAINLESSM5(#10)9.0×2.2WN16DPM06316 NORD-L STD WASH:M6STANDARD WASHER316L STAINLESSM610.8×2.2WN16DPM08316 NORD-L STD WASH:M8(5/16)STANDARD WASHER316L STAINLESSM8(5/16)13.5×2.0WN16DPM10316 NORD-L STD WASH:M10STANDARD WASHER316L STAINLESSM1016.6×2.0WN16DPM12316 NORD-L STD WASH:M12STANDARD WASHER316L STAINLESSM1219.5×2.0WN16DPM16316 NORD-L STD WASH:M16(5/8)STANDARD WASHER316L STAINLESSM16(5/8)25.4×3.0WN16DPM20316 NORD-L STD WASH:M20STANDARD WASHER316L STAINLESSM2030.7×3.0WN16DPM24316 NORD-L STD WASH:M24STANDARD WASHER316L STAINLESSM2439.0×3.2WN16DPM30316 NORD-L STD WASH:M30(1-1/8)STANDARD WASHER316L STAINLESSM30(1-1/8)47.0×6.8WN16DPM36316 NORD-L STD WASH:M36(1-3/8)STANDARD WASHER316L STAINLESSM36(1-3/8)55.0×6.8WN16DPM42316 NORD-L STD WASH:M42STANDARD WASHER316L STAINLESSM4263.0×6.8WN16DPM48316 NORD-L STD WASH:M48(1-7/8)STANDARD WASHER316L STAINLESSM4875.0×6.8
