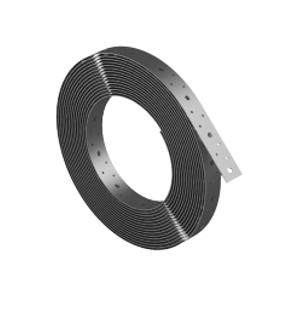

DescriptionProduct OverviewThe Galvanised Hoop Iron Structural Bracing Strap is engineered for timber frame bracing in domestic construction, including single and two-storey buildings. Ideal for structural wall bracing and tie-down applications, such as roof truss to top plate, bearer to post, floor joist to top plate, and beam to lintel.Key FeaturesManufactured from G300 roll-formed structural steel.Galvanised Z275 coating for outstanding corrosion resistance.Complies fully with AS1684 Section 8.3.6 for residential timber construction.Available in punched and unpunched variants.Performance tested in NATA-accredited laboratories.SpecificationsModel / LengthWidthThicknessYield LoadTensile CapacityGSBMG08P3020 – 20 m30 mm0.8 mm4.9 kN5.6 kNGSBMG08P3030 – 30 m30 mm0.8 mm4.9 kN5.6 kNGSBMG08P3050 – 50 m30 mm0.8 mm4.9 kN5.6 kNGSBMG10P3020 – 20 m30 mm1.0 mm6.2 kN7.0 kNGSBMG10P3030 – 30 m30 mm1.0 mm6.2 kN7.0 kNGSBMG10P3050 – 50 m30 mm1.0 mm6.2 kN7.0 kNGSBMG12P3030 – 30 m30 mm1.2 mm7.4 kN8.4 kNGSBMG08U3030 – 30 m Unpunched30 mm0.8 mm5.6 kN6.4 kNDownload the official data sheet (PDF)
