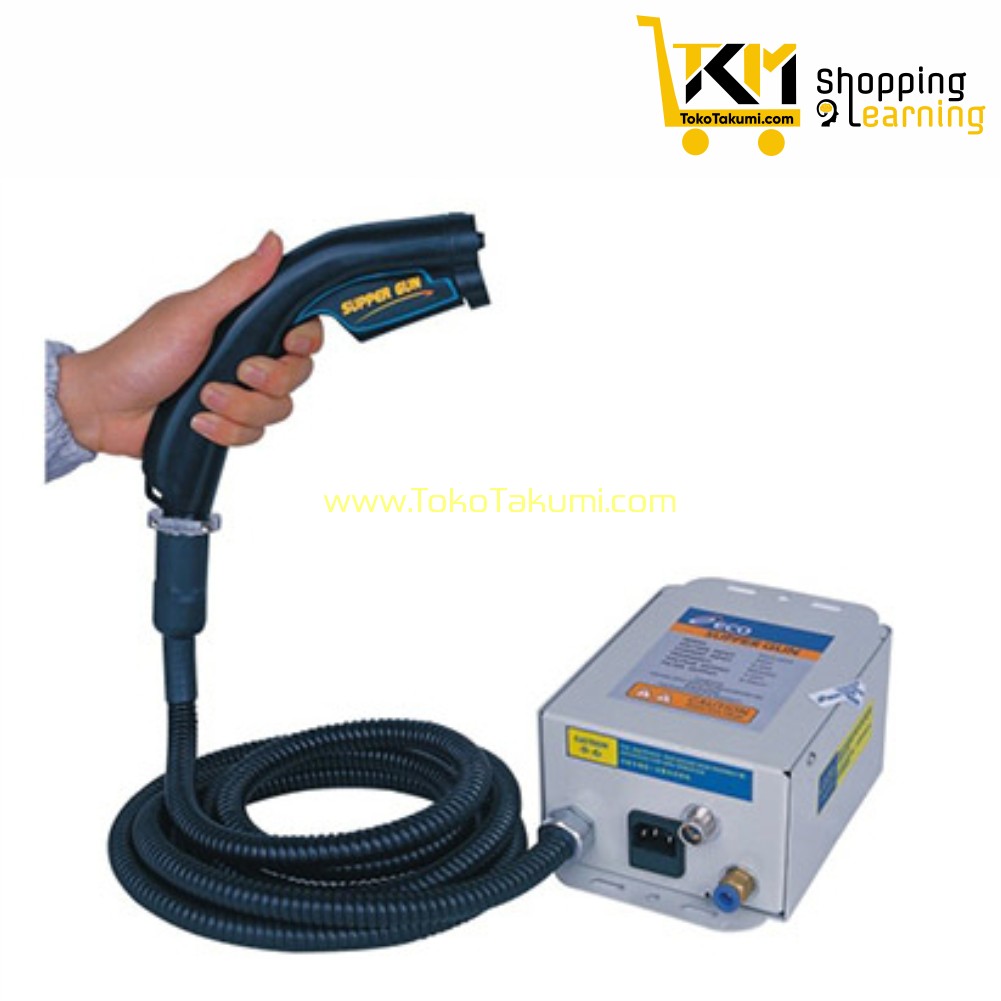

Description ECO-G03 High performance AC Ionizing Air Gun belongs to electrostatic eliminators and can eliminate static and dust. It features light, small, flexible operation, convenient maintenance, wide application, etc. Also, it’s the ideal device for static-preventing areas of electronic product process, printing, surface process, plastic machining, etc. Features of ECO-G03 High performance AC Ionizing Air Gun: * The filter at the air outlet can ensure the airflow blown to protected goods clean. * Light and humanizing design makes the operation more comfortable. * Airflow control valve can be adjusted according to different requests. * Ionizing indicator light indicates state of generating ions. * Ion Balance: ≤±15V Specifications of ECO-G03 High performance AC Ionizing Air Gun: * The length of cable: 2.8M * Operating voltage: 5.6V * Current consumption (at rest): 0.05Amps * Dimensions of windpipe tie-in: 1/8NPT (female) * Air input pressure: 100PSI (7bar) maximal pressure; Compressed air, inert gas or nitrogen gases * Air consumption: 2.4 SCFM at 30PSI(68l/min, at 2bar); 4.6 SCFM at 60PSI(130l/min, at 4bar); 7.4 SCFM at 100PSI(210l/min, at 7bar) * Replaceable filter: 0.02micron * Noise: 76 dB at 30 PSI(2bar); 89 dB at 60 PSI(4bar); 97 dB at 100 PSI(7bar) * Ozone content: 0.001PPM measure at 18â€(450mm)away from gun and working pressure 15 PSI(1bar), Test depends on American Federation Standard: EPA EQOA-0577-019. Using Dasibij ozone measuring instrument, model 1003AH * Working temperature: 0℃ to 50 ℃ * Material: Gun body: ABS molded; Cable: Shielding cable; Generator: Cold rolled steel plates sprinkled with powder * Weight: 4.6kg(including gun body, high voltage ionizer and cable) * Ion balance: ≤±15v
