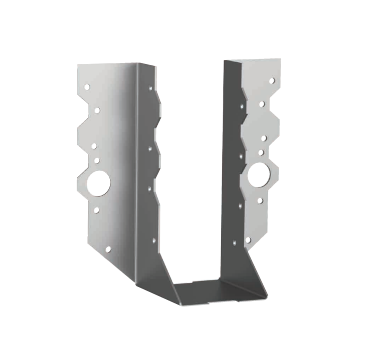

DescriptionOur Galvanised Joist Hangers provide a strong and reliable connection point for joining joists to beams, rafters to fascias, trusses to beams, and beams to masonry. Made from G300 structural steel with a Z275 galvanised finish, these brackets are engineered to meet AS 1720.1 standards for structural integrity.ApplicationsConnects joists to beamsFixes rafters to fasciasSecures floor trusses to beamsAnchors beams to masonryFeaturesManufactured from G300 Structural SteelZ275 galvanised finish for corrosion resistanceFast fixing method – no pre-drilling requiredCompatible with 2.8mm nails or M12 boltsAvailable in a range of sizes to suit your projectSize TablePart NumberQFindNail Size (Ø mm)Width W (mm)Length L (mm)Thickness T (mm)Depth D (mm)HHJMGD-035090GD-0350902.8100553583.5HHJMGD-035120GD-0351202.81005535120.0HHJMGD-035190GD-0351902.81005535182.0HHJMGD-045090GD-0450902.8110554576.0HHJMGD-045120GD-0451202.81105545110.0HHJMGD-045140GD-0451402.81105545130.0HHJMGD-045190GD-0451902.81105545175.0HHJMGD-050090GD-0500902.8115555090.0HHJMGD-050120GD-0501202.81155550110.0HHJMGD-050140GD-0501402.81155550130.0HHJMGD-050190GD-0501902.81155550175.0[CLICK HERE FOR DATA SHEET]
