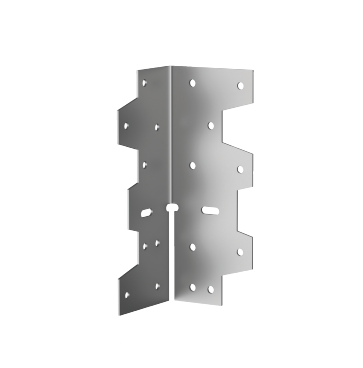

DescriptionGalvanised Multi-Grip – G300 / Z275Multi-grips are designed for use in structural timber framing where a secure, high-load connection is required. Each grip can be bent to suit various orientations, offering flexibility for truss, rafter and stud connections. Fabricated from G300 structural steel and coated in a Z275 galvanised finish for corrosion resistance, they’re suitable for both internal and external use (non-marine exposure zones).ApplicationsCeiling joists to hanging beamsTrusses to top platesJack flyovers to truncated trussesStuds to bottom platesAS 1684 compliant timber framingMaterialG300 Structural SteelFinishGalvanised Z275 for corrosion protectionSpecificationsPartWidth (W)Depth (D)Leg Depth (L)ThicknessHGMMGD40 mm95 mm40 mm1.0 mmInstallation GuideTo achieve stated design capacities, use 30 × Ø2.8mm Hot Dip Galvanised Nails.Bend the tabs of the multigrip to the required orientation.Fix the multigrip using 10 × 30mm Ø2.8mm nails.In bent orientations, install:At least 4 nails in the side of each member2 nails into the top of one memberIn unbent orientation, install 5 nails in each member per multigrip.FeaturesFlexible bent or unbent installation optionsHeavy-duty G300 structural steel for maximum load capacityProtective Z275 galvanised coating for long-term durabilityQuick installation with standard hot-dip galvanised nailsNote: Always ensure proper nail quantity and placement per AS1684 guidelines.
