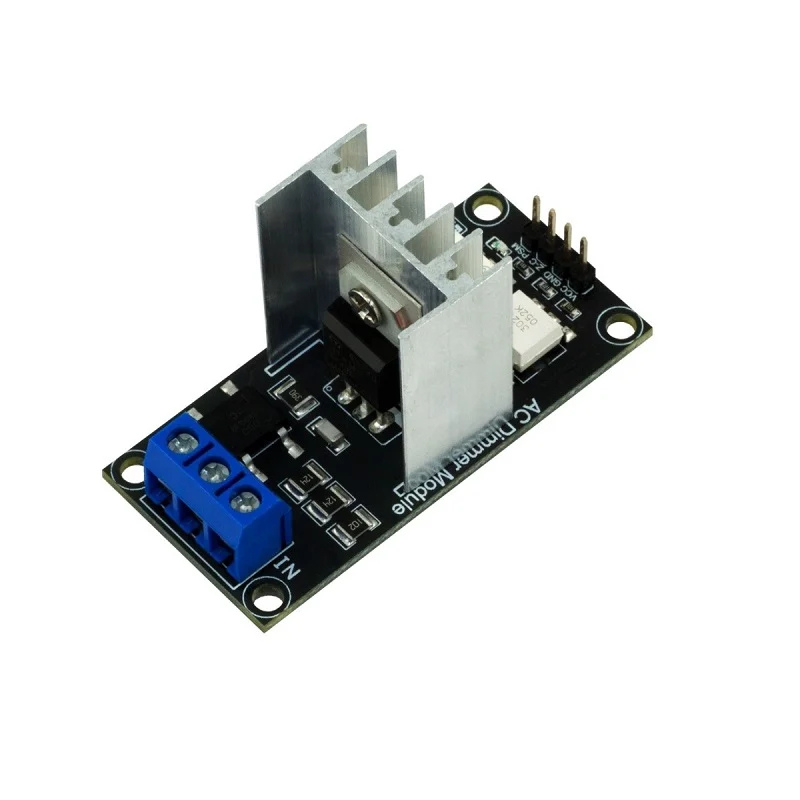

AC Dimmer Module 1 Channel – Smart AC Light & Motor Speed Controller The AC Dimmer Module 1 Channel allows precise control of AC-powered devices such as lights, fans, and small motors. It is ideal for Arduino, ESP32, and Raspberry Pi projects involving automation or smart lighting control. ⚙️ Features of AC Dimmer Module 1 Channel Single Channel AC Dimmer Board (Zero Cross Detection Supported) Compatible with Arduino, ESP32, and STM32 Uses BTA16-600B Triac with Opto-Isolation Supports 220V AC input for dimming lamps or controlling motors Heat-sink included for better thermal performance Ideal for home automation, IoT systems, and AC load control �� Specifications Input Voltage: 220V AC Frequency: 50Hz / 60Hz Control Signal: 3.3V / 5V logic level Load Type: Resistive / Inductive Triac Type: BTA16-600B PCB Size: 65mm × 45mm Mounting Holes: 4 �� Applications of AC Dimmer Module 1 Channel Smart Lighting Automation Ceiling Fan Speed Control AC Motor Regulation IoT-based Light Dimmer Projects Arduino and ESP32 Smart Control Systems ⚠️ Safety Note Ensure proper insulation and electrical safety precautions while handling AC mains power. Only use under supervision or with a certified power supply system.
