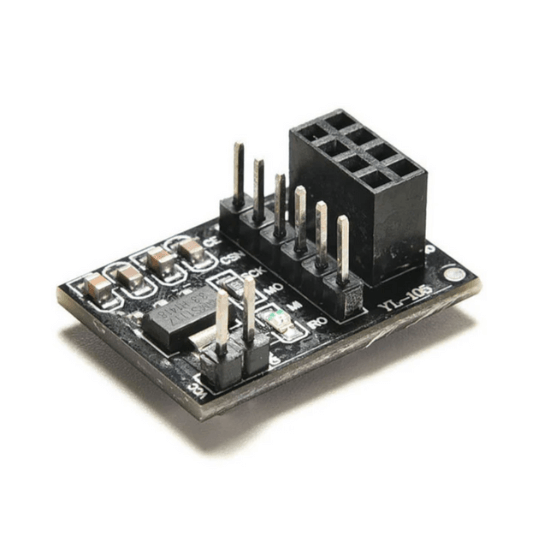

This 3.3V Adapter Board for NRF24L01 Wireless Transceiver Module enables you to use NRF24l01 type transceivers on 5V systems like Arduino. It regulates the 3.3V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced ShockBurst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgment, and automatic re-transmission of lost packets. A 3.3V adapter board for the 24L01 wireless module is a crucial component in ensuring seamless integration and functionality of the module within various electronic systems. The 24L01 wireless module, widely used in applications like wireless communication, IoT devices, and remote control systems, operates at a voltage level of 3.3V, necessitating a compatible adapter board to provide the correct voltage and facilitate easy connection with other components. The adapter board serves as an intermediary platform, bridging the gap between the 24L01 module and the host system, ensuring proper power supply and communication protocols. Its primary function is to regulate the voltage from the power source to the required 3.3V level, safeguarding the sensitive electronics of the wireless module from potential damage due to overvoltage. At its core, the 3.3V adapter board consists of a voltage regulator circuit, typically employing components such as linear or switching regulators, capacitors, and resistors. These components work in tandem to convert the input voltage, usually ranging from 5V to 12V, to a stable 3.3V output, providing the necessary power supply for the 24L01 module. Additionally, the adapter board often incorporates supporting circuitry for level shifting and signal conditioning to ensure seamless communication between the 24L01 module and the host system, especially if the latter operates at a different voltage level or logic standard. Level-shifting circuits utilizing components like voltage translators or level shifters facilitate bidirectional data transfer while maintaining compatibility between disparate voltage domains. Furthermore, the adapter board may feature standardized connectors or headers for easy interfacing with both the 24L01 module and the host system. These connectors not only simplify the assembly process but also enhance modularity and interoperability, allowing for quick integration into diverse electronic designs. In terms of physical design, the adapter board is typically compact and lightweight, conducive to integration into space-constrained environments commonly encountered in embedded systems and IoT devices. PCB (Printed Circuit Board) layout considerations prioritize signal integrity, thermal management, and electromagnetic compatibility (EMC), ensuring reliable operation and compliance with industry standards. Moreover, the 3.3V adapter board may incorporate additional features for enhanced functionality and versatility. This could include power management capabilities such as overvoltage protection, reverse polarity protection, and power-on reset circuits, safeguarding the integrity of the wireless module and the host system under varying operating conditions. In summary, the 3.3V adapter board for the 24L01 wireless module plays a pivotal role in facilitating seamless integration, ensuring proper power supply, and enabling efficient communication within electronic systems. By providing voltage regulation, level shifting, and interface compatibility, this essential component enables developers to harness the capabilities of the 24L01 module across a wide range of applications, from simple sensor networks to complex IoT infrastructures. Note: HW-200 on board working remains the same. Features: It can be used with the NRF24L01 wireless module Add core nRF24L01 Breakout Adapter with onboard 3.3V Regulator Onboard 3.3V voltage regulator accepts your Arduino 5V supply and provides 3.3V for the attached nRF24L01 module Allows for easy connection to nRF24L01 modules Small power on SMD LED indicator On-Board Voltage Regulator: Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V) Package Includes: 1 x 3.3V Adapter Board for 24L01 Wireless Module SKU: IK-141 Categories: All Products, RF/NRF Module Tags: 2.4GHz Antenna Wireless Transceiver, 24L01 Wireless Module, M177 NRF24L01, Nordic Loading...Barcode:
