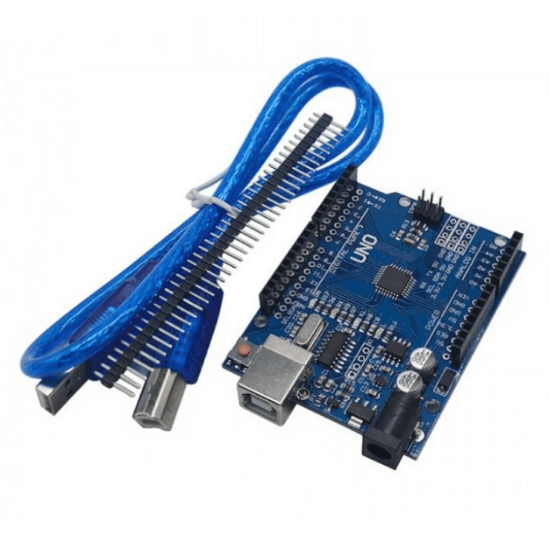

The Arduino Uno R3 SMD CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip. We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without the CH340 chip. The Arduino Uno R3 SMD Compatible Development Board, bundled with a cable, is a versatile and widely used microcontroller platform that enables enthusiasts, hobbyists, and professionals to create interactive electronic projects with ease. This development board is based on the ATmega328P microcontroller, offering a range of features and capabilities suitable for a diverse array of applications. At the heart of the Arduino Uno R3 board is the ATmega328P microcontroller, which boasts 32KB of flash memory for storing program code, 2KB of SRAM for data storage, and 1KB of EEPROM for non-volatile storage. This microcontroller provides a wide range of digital and analog I/O pins, allowing users to interface with various sensors, actuators, displays, and other electronic components seamlessly. One of the key features of the Arduino Uno R3 board is its ease of use and accessibility. The board comes with a user-friendly integrated development environment (IDE) that simplifies the process of writing, compiling, and uploading code to the microcontroller. Additionally, the Arduino programming language, based on Wiring and C/C , is easy to learn, making it accessible to beginners while still powerful enough for advanced users. The Arduino Uno R3 board features a robust and compact design, making it suitable for use in a wide range of projects, from simple blinking LED experiments to complex robotics and automation systems. Its compatibility with a vast ecosystem of shields, modules, and accessories further expands its capabilities, allowing users to easily add functionality such as wireless communication, motor control, and sensor integration. Furthermore, the inclusion of a USB cable with the Arduino Uno R3 board simplifies the process of connecting it to a computer for programming and power supply. This ensures that users can quickly get started with their projects without the need for additional accessories or components. In summary, the Arduino Uno R3 SMD Compatible Development Board, bundled with a cable, offers a powerful and versatile platform for prototyping and building electronic projects. With its ease of use, wide range of features, and extensive compatibility, it remains a popular choice among makers, students, educators, and professionals alike. Main changes from the older version: 1. Two rows of holes for the pins (Male and Female). So it can be connected with normal Female Jumpers. 2. Additional 3 rows of the holes for wiring. 3. Changes to the DIP package of ATMEGA328P to flat package. 4. CH340G replace ATmega16U2 How to use: 1. Download the IDE Arduino Link: http://arduino.cc/en/Main/Software (Copy to open) 2. Download the USB chip driver Link: http://www.5v.ru/zip/ch341ser.zip (Copy to open) 3. Plug in the UNO development board, the driver will be installed automatically 4. Select the UNO from the die 5. Select the COM port 6. The best choice first, Arduino comes with routine procedures, burn into it. Package Includes : 1 x Uno R3 CH340G ATmega328p Development Board Compatible with Arduino(With cable) 1 x set of male Jumper Header. SKU: IK-268 Categories: All Products, Arduino Boards Tags: Arduino, Arduino UNO, Arduino with USB Cable, Development Board, Mega, Microcontroller, Robot Brain, Uno Loading...Barcode:
