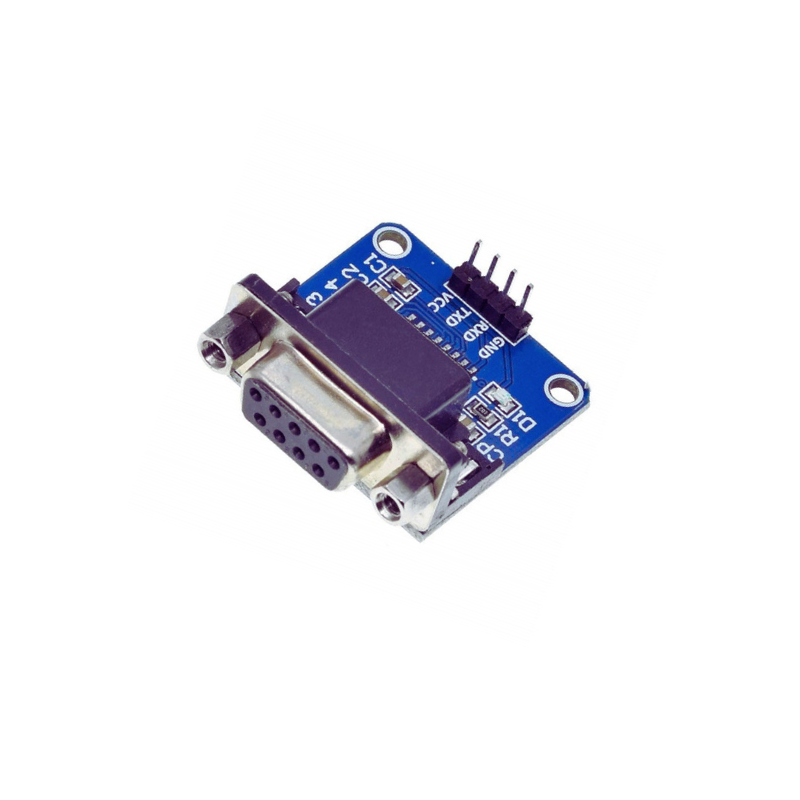

�� Overview of TTL to RS232 Converter Module The TTL to RS232 Converter Module is designed to convert logic-level UART signals (TTL) into standard RS232 voltage levels. It uses the MAX3232 IC, which ensures dependable and bidirectional serial communication between embedded systems and RS232-compatible devices. �� Why Use a TTL to RS232 Converter Module Many microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi use TTL-level UART communication, while industrial equipment such as PLCs, modems, and sensors use RS232 standard. This converter acts as a bridge between both systems, enabling stable data transmission. ⚙️ Key Features of TTL to RS232 Converter Module Built around the reliable MAX3232 IC Supports 3.3V and 5V logic levels Fully compatible with Arduino, ESP32, STM32, Raspberry Pi Compact and easy to mount with DB9 Female connector Simple 4-pin interface: VCC, GND, TXD, RXD High signal integrity and low power consumption �� Technical Specifications Parameter Description Operating Voltage 3.3V to 5V Communication Type RS232 ↔ UART (TTL) Chipset MAX3232 Connector DB9 Female Operating Temperature -40°C to 85°C Dimensions Approx. 42mm × 33mm ⚡ Applications of TTL to RS232 Converter Module Serial communication between microcontrollers and PCs Industrial automation and PLC interfacing Connecting GPS modules, sensors, or modems Debugging UART signals via RS232 Embedded systems requiring RS232 protocol conversion
