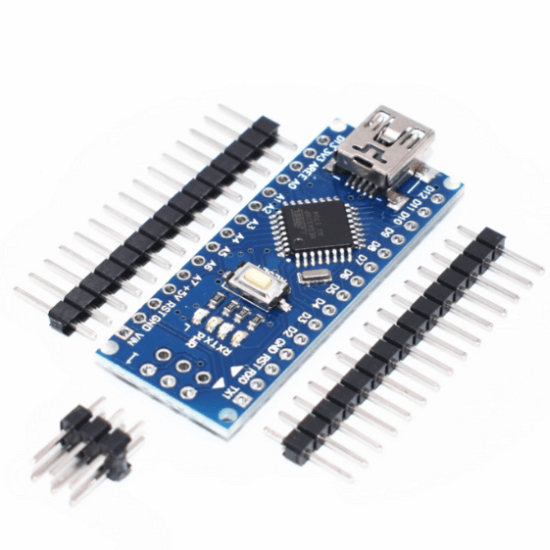

The Arduino nano CH340 Unsoldered Nano Board R3 Chip without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno but with a smaller footprint. Nano CH340 Soldered Board R3 Chip without USB cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. The Nano equips a low-cost USB-Serial Chip that makes it less in price than the Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano. The nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3). It has more or less the same functionality as the Arduino Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected as the highest voltage source. The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from a total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed, and 32kB of flash memory. The Nano R3 compatible board with a CH340 chip is a microcontroller board that shares many similarities with the official Arduino Nano R3. However, instead of using the FTDI chip for USB-to-serial communication like the original Nano, this board utilizes the CH340 chip. The CH340 chip serves the same purpose, enabling communication between the Arduino and a computer via USB. This board is popular among hobbyists and makers due to its compact size, affordability, and compatibility with the Arduino IDE. It retains all the features of the official Nano, including a wide range of digital and analog I/O pins, PWM capability, and compatibility with various sensors and modules. The use of the CH340 chip allows for cost savings, making it an attractive option for projects where budget is a consideration. However, users should ensure they have the necessary drivers installed on their computer to properly communicate with the board over USB. Overall, the Arduino nano R3 compatible board with the CH340 chip offers a cost-effective solution for small-scale electronics projects and prototyping. Note:- CH34The 0 chip might not work directly with some PC/Laptop, you will need some ch340 drivers. Features : 1 pair of TTL level serial transceiver ports RX / TX Using Atmel Atmega328P-AU MCU There is a bootloader installed in it Support USB download and Power Support for external 5V ~ 12V DC power supply Support power supply by 9V battery Support ISP download Automatic reset during program download. Power OK blue LED on the bottom. Green (TX), red (RX), and orange (L) LED. 5V to AREF jumper. Auto sensing/switching power input. Small mini-B USB for programming and serial monitor (cable not included). ICSP header for direct program download. Standard 0.1” spacing DIP (breadboard friendly). Manual reset switch. Product Description To connect and program this development board you need to have Arduino IDE installed in your computer and the Mini USB Programming Cable. After installing the IDE you just need to go to TOOLS> BOARDS> Arduino Nano and you are ready to upload the programs with the help of a Mini USB B cable. Its programming is not different from Arduino UNO. Package Includes : 1 x Nano CH340 Chip Board without USB cable compatible with Arduino (UnSoldered) SKU: IK-115 Categories: All Products, Arduino Boards Tags: Arduino, Arduino Nano, Arduino Nano R3, ATmega328, CH340, Microcontroller, Nano, nano unsoldered Loading...Barcode:
