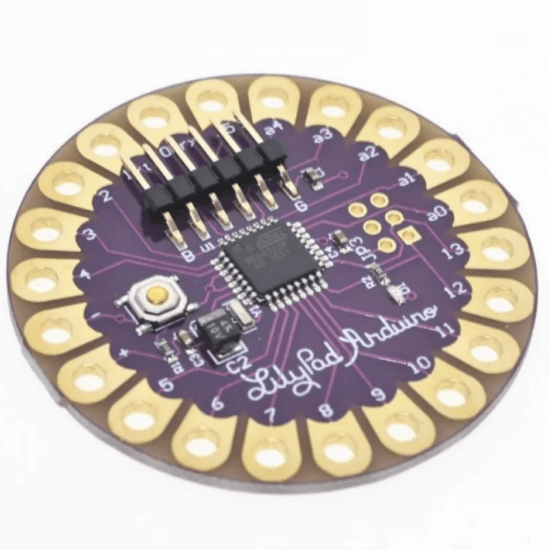

The Arduino LilyPad 328 Main Board is a microcontroller board designed for wearables and e-textiles projects. Arduino Lilypad is a fancy-looking development board from Arduino. It is based on the ATmega328V microcontroller and offers 14 Digital I/O pins and 6 Analog Channels. It also has 6 PWM channels and a wide operating voltage from 2.7V to 5.5V making it suitable for battery-operated applications. This arduino lilypad 328 16M board has a flat bottom and large pinholes making it easy for being sewn into clothing. It is commonly used in e-textile and other wearable electronics applications. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. The arduino lilypad 328 consists of an ATmega328 compatible with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. It’s based on the ATmega328P microcontroller, the same chip used in the Arduino Uno, and it’s compatible with Arduino IDE for programming. This arduino lilypad 328 board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of ( ) and (-), can control an attached input or output device (like a light, motor, or switch). Key features of the arduino lilypad 328 Main Board include: Compact Design: The board is small and round, designed to be easily sewn into fabric or attached to wearable projects. Onboard Components: It includes various components like digital and analog pins, power pins, and a reset button, allowing for versatile functionality. Low Power Consumption: Designed with low power consumption in mind, making it suitable for battery-powered wearable projects. Sewing-friendly: The board features large sew tabs around the edges, making it easy to connect conductive thread or fabric to create wearable electronics. Open Source: Like other Arduino boards, the arduino lilypad 328 Main Board is open-source hardware, meaning its design files are freely available for modification and customization. Compatibility: It’s compatible with a wide range of sensors, actuators, and other electronic components commonly used in wearable technology and e-textiles projects. Programming: Programming the arduino lilypad 328 Main Board is done through the Arduino IDE using a USB to TTL serial adapter or a LilyPad FTDI Basic Breakout board. Overall, the arduino lilypad 328 Main Board is a versatile and user-friendly platform for creating wearable electronics projects, whether you’re a beginner or an experienced maker. Here are some more detailed specifications of the Arduino LilyPad 328 Main Board: Microcontroller: ATmega328P Operating Voltage: 2.7V – 5.5V Input Voltage (recommended): 3.7V – 5.5V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 6 DC Current per I/O Pin: 40 mA Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader SRAM: 2 KB (ATmega328P) EEPROM: 1 KB (ATmega328P) Clock Speed: 8 MHz Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable! Features and Specifications: Microcontroller: ATmega328V Operating Voltage Range: 2.7-5.5 V Input Voltage : 2.7-5.5 V Digital I/O Pins:14 Nos (of which 6 provide PWM output) Analog Input Pins: 6 PWM Channels: 6 DC Current per I/O Pin:40 mA Flash Memory: 16 KB (of which 2 KB used by bootloader) SRAM: 1 KB EEPROM: 512 bytes Clock Speed: 8 MHz Washability: Wash at your own risk. We recommend washing projects by hand with a mild detergent. Drip dry. Make sure you remove your power supply first! SKU: IK-245 Categories: All Products, Arduino, Arduino Boards Tags: Development Board, LilyPad, Microcontroller, Wearable, Wearable Electronics Loading...Barcode:
