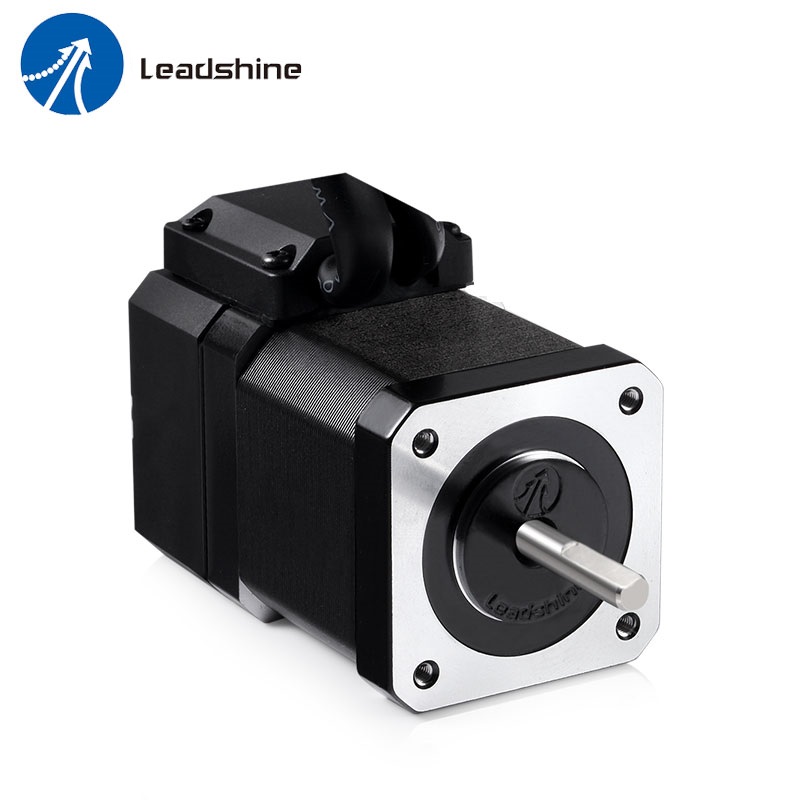

Item Name: Leadshine Nema 17 Closed Loop Stepper Motor and Driver Motor Specification: 2 Phase, Step Angle 1.8, NEMA 17 (42×42 mm), Closed Loop. PCs in Item: 1 Manufacturer: Leadshine Control Technology Co. Ltd., ShenZhen China Reference: Model# Length(mm) Holding Torque(Nm) Rating Current(A) Phase Resistance(Ω) Inductance(mH) Inertia(g.cm²) Shaft(mm) 42CME02 56 0.2N.m 1.5 1.4 1.4 35.0 5.0 42CME04 62 0.4N.m 1.5 2.3 4.3 48.0 5.0 42CME04D 62 0.4N.m 1.5 2.3 4.3 54.0 5.0 42CME06 70 0.6N.m 2.5 0.9 1.6 66.0 5.0 42CME06D 70 0.6N.m 2.5 0.9 1.6 72.0 5.0 42CME08 83 0.8N.m 2.5 1.0 2.4 110.0 5.0 Encoder Optical Incremental. (Avago USA) Encoder Resolution 4000 PPR Encoder Output Signal Channels 2 Channels Output High Voltage 0.4v@20mA Max Output Low Voltage 2.4v@~20mA min Shaft Length 24mm Step Angle 1.8 Deg
