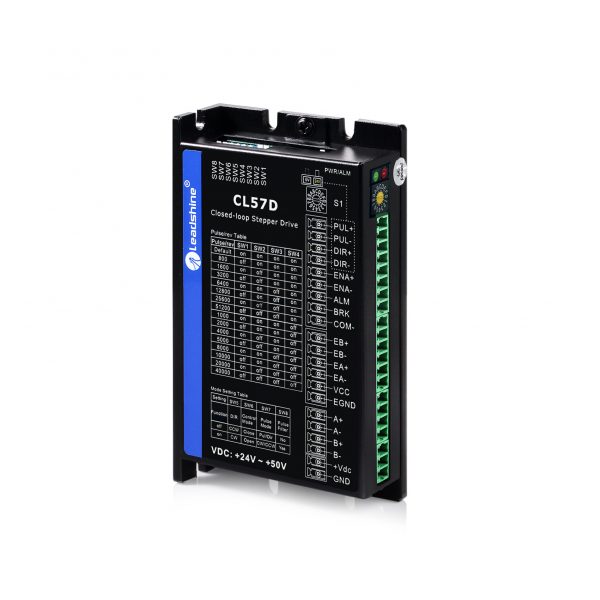

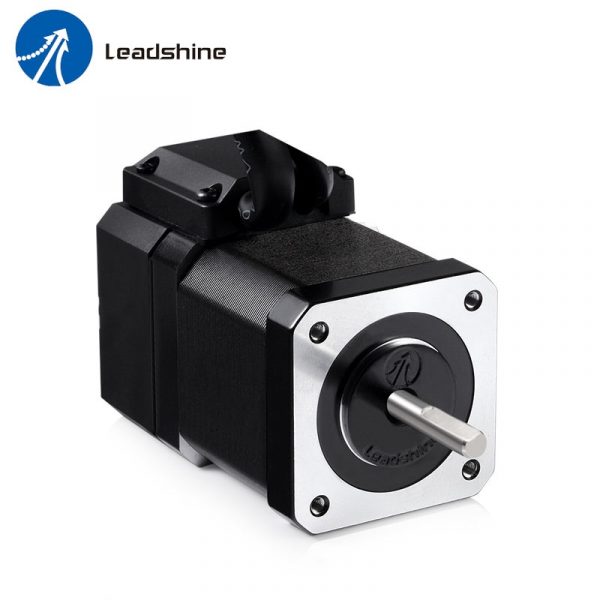

Item Name: Leadshine Nema 23 Closed Loop Stepper Motor and Driver Motor Specification: 2 Phase, Step Angle 1.8, NEMA 23 (57×57 mm), Closed Loop. PCs in Item: 1 Manufacturer: Leadshine Control Technology Co. Ltd., ShenZhen China Reference: Model# Length(mm) Holding Torque(Nm) Rating Current(A) Phase Resistance(Ω) Inductance(mH) Inertia(g.cm²) Shaft(mm) 57CME06 60 0.6 3 0.70 1.40 120.0 Ø8-21 57CME13D 75 1.3 4 0.42 1.60 300.0 Ø8-21 57CME13 75 1.3 4 0.42 1.60 300.0 Ø8-21 57CME23 96 2.3 5 0.38 1.75 480.0 Ø8-21 Encoder Optical Incremental. (Avago) Encoder Resolution 4000 PPR Encoder Output Signal Channels 2 Channels Output High Voltage 0.4v@20mA Max Output Low Voltage 2.4v@~20mA min Shaft Ø8 x 21mm Step Angle 1.8 Deg
