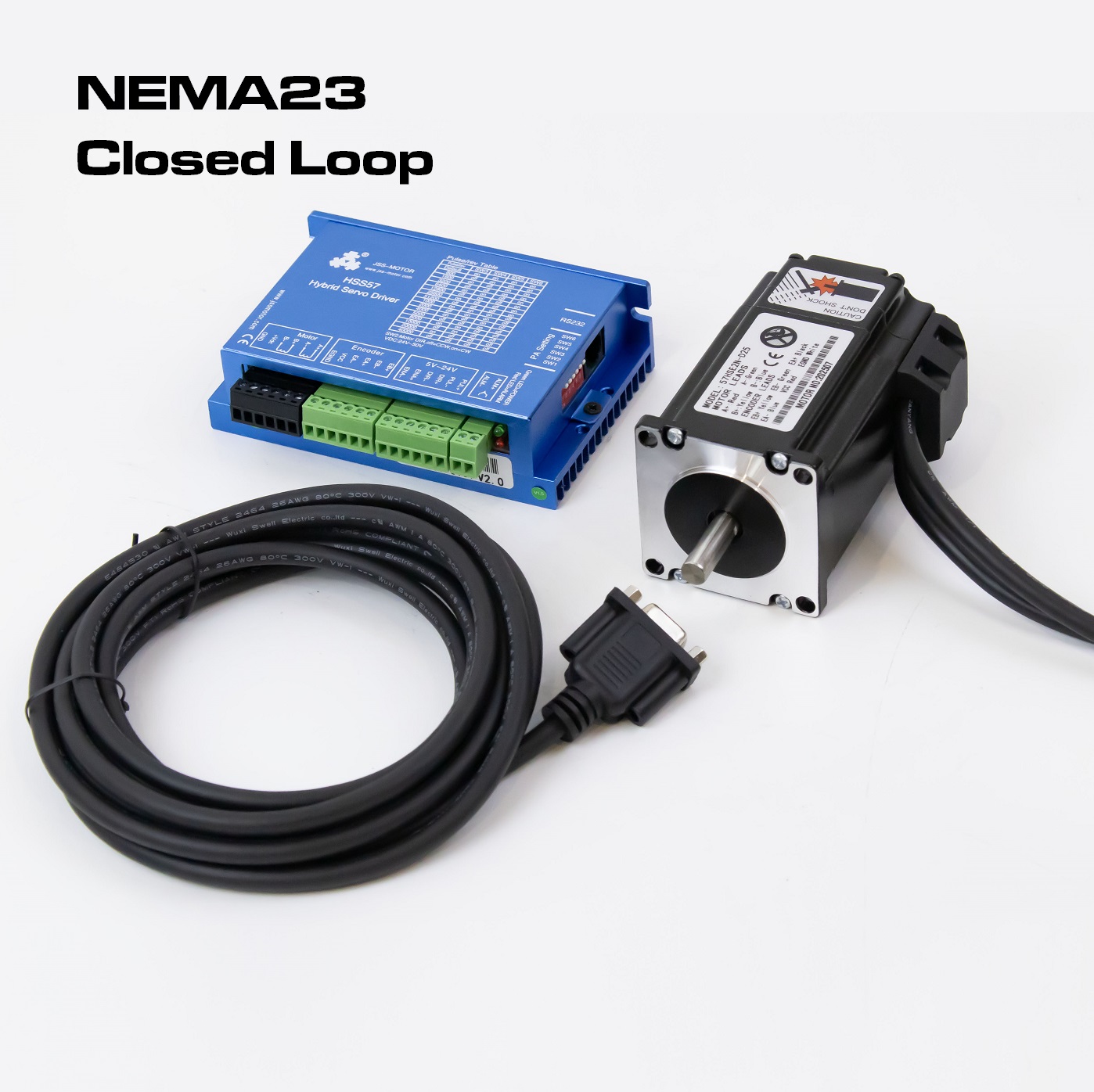

Item Name: Nema 23 Closed Loop Stepper Motor Driver with LED, or with driver kits Specification: Motor 2 Phase, Step Angle 1.8, NEMA 23 (57×57 mm), Closed Loop. HSS57 CL Driver: 32-bit DSP Chip, ModBusRTU on RS232, Stauts and Position and Speed controll Single and double pulse input, up to 200KHz response. PCs in Item: Motor (with 0.5m Motor Cable and 3m Encoder Cable) or Kit (Motor, Driver and RS232 – USB Cable) Manufacturer: LiChuan Motor, GuangDong China Reference: LiChuan Motor LiChuan Closed Loop Motor Driver Model# Holding Torque Rating Current Operation Voltage Phase Resistance Inductance Body Length Encoder Lines Shaft Length Shaft Diameter LC57H256 1.0Nm 3.0A 24~50V 0.4Ω 1.2mH 76mm 1000P 25mm 8mm LC57H265 1.5Nm 3.0A 24~50V 0.4Ω 1.2mH 85mm 1000P 25mm 8mm LC57H276 2.0Nm 3.0A 24~50V 0.5Ω 1.8mH 98mm 1000P 25mm 8mm LC57H282 2.2Nm 4.0A 24~50V 0.55Ω 2.2mH 102mm 1000P 25mm 8mm LC57H2100 3.0Nm 4.0A 24~50V 0.55Ω 1.8mH 122mm 1000P 25mm 8mm LC57H2112 3.5Nm 4.0A 24~50V 0.55Ω 1.8mH 134mm 1000P 25mm 8mm
