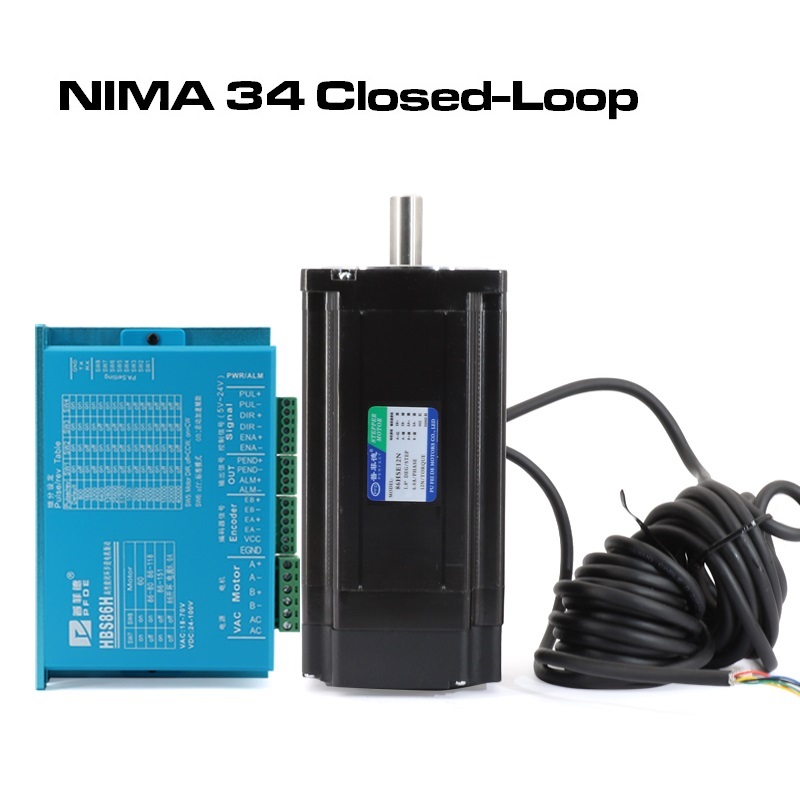

Item Name: NEMA 34 Closed Loop Stepper Motor with Driver Set PFDE PCs in Item: Closed Loop Stepper Motor (4.5Nm,8Nm,12Nm) x 1, Driver 3/5 Meter Cable (build-in or plug-in). Build-in Cable: Motor Cable Encoder Cable Plug-in Cable: Motor Cable Extend Encoder Cable with 9 pin plug-in Manufacturer: PFDE, Made in China Notes: English Version of User Manual has been verified by DIYCNC Model Step Angle Holding Torque (Nm) Rated Current (A) Phase Resistance (Om) Phase Inductance (mH) Inertia(g·cm²) Length (mm) Shaft Length (mm) Shaft Diameter(mm) Weight(kg) 86HSE4.5N 1.8 4.5 4 1.0 4.4 1500 101 31.75 14 2.8 86HSE8.5N 1.8 8.5 6 0.97 5.5 4100 137 31.75 14 3.8 86HSE12N 1.8 12 8 1.2 6.0 6200 180 31.75 14 5.2
