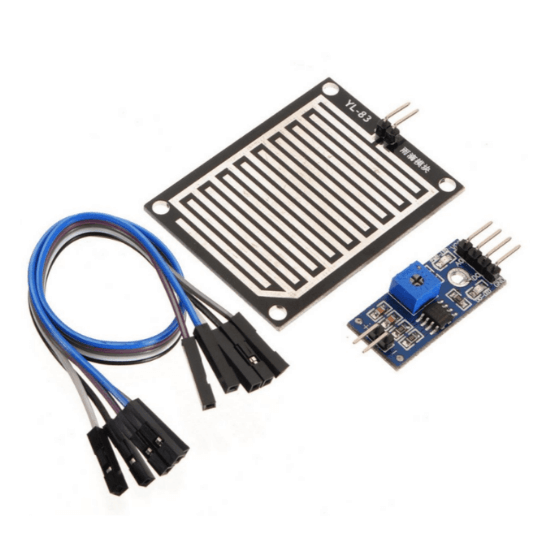

The Raindrops Detection sensor module is used for rain detection. It is also for measuring rainfall intensity. Rain sensors can be used for all kinds of weather monitoring and translated into output signals and AO. Raindrops Detection Sensor Module Rain Weather Module for Arduino, etc. Rain sensor can be used to monitor a variety of weather conditions and turned into several fixed output signal and Analog output. It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V. The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp. The Raindrops Detection Sensor Module is a vital component in weather monitoring systems and automated irrigation setups. This Raindrops Detection Sensor Module module is designed to detect the presence of raindrops, providing crucial data for various applications. One of the key features of this sensor module is its high sensitivity, allowing it to detect even small raindrops accurately. This sensitivity ensures that the system can react promptly to changes in weather conditions, triggering appropriate actions such as closing windows, activating pumps for drainage, or adjusting irrigation systems. The Raindrops Detection Sensor Module module typically consists of a sensor unit and associated circuitry housed in a compact and durable package. The sensor unit is often equipped with conductive traces or a grid that interacts with raindrops to produce electrical signals. These signals are then processed by the circuitry to determine the intensity of rainfall. Installation of the Raindrops Detection Sensor Module is relatively straightforward, typically involving mounting the sensor in an exposed location where it can effectively capture rainfall. Many modules are designed to be compatible with microcontrollers such as Arduino, Raspberry Pi, or other embedded systems, allowing for seamless integration into larger projects. In addition to its primary function of rain detection, some sensor modules may offer additional features such as adjustable sensitivity settings or built-in heating elements to prevent false readings caused by dew or condensation. Overall, the Raindrops Detection Sensor Module plays a crucial role in various applications where accurate rainfall data is essential for decision-making and automation, ranging from agriculture and gardening to building automation and weather monitoring systems. Its reliability, sensitivity, and ease of integration make it a valuable tool for both hobbyists and professionals alike. In summary, the Raindrops Detection Sensor Module is crucial for applications where accurate rainfall data is vital, from agriculture to building automation. Its reliability, sensitivity, and ease of integration make it valuable for hobbyists and professionals alike. Features The LM393, use of the wide voltage comparator Provide both digital and analog output Output LED indicator Compatible with Arduino TTL Compatible The sensor uses the high-quality FR – 04 double material, the large area of 5.5 * 4.0 CM Treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA; With potentiometer sensitivity adjustment The output format: digital switch output (0 and 1) and analog AO voltage output; Has a fixed bolt hole, convenient installation Package Includes 1 x Printed Circuit Board for Rain Water Collection 1 x Control Board with LM393 Voltage Comparator A 5-Wire Dupont Cable SKU: IK-183 Categories: All Products, Force/Flex/Load, IR Proximity/Motion, Miscellaneous Tags: Rain Detection, Rain Drop Sensor, Rain Sensor, Water Detection, Water Drop Sensor Loading...Barcode:
