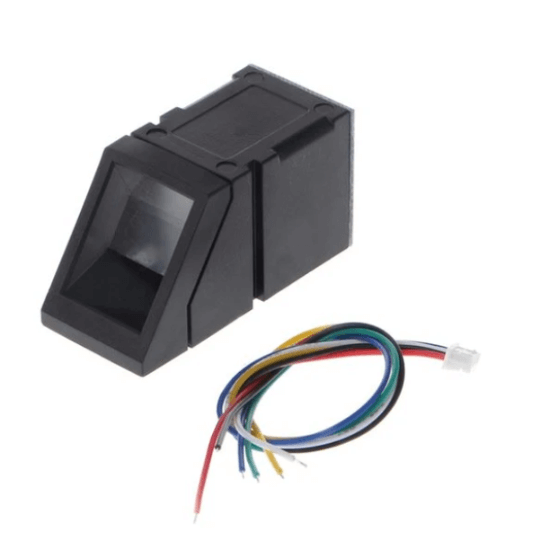

This is the R307s Fingerprint Identification Biometric Module. R307s fingerprint module is a fingerprint sensor with a TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the fingerprint data in the module and can configure it in 1:1 or 1:N mode for identifying the person. The FP module can directly interface with a 3.3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with the PC serial port. Integrated image collecting and algorithm chip together, an ALL-in-One Fingerprint reader can conduct secondary development and can be embedded into a variety of end products. Users can conduct secondary development, which can be embedded into a variety of end products, such as access control, attendance, safety deposit boxes, and car door locks Low power consumption, low cost, small size, excellent performance, Professional optical technology, and precise module manufacturing techniques. Good image processing capabilities can successfully capture an image up to a resolution of 500 dpi Finger detection function. At the heart of the R307S module lies a highly sensitive optical sensor capable of capturing high-resolution fingerprint images. This sensor utilizes advanced algorithms to extract unique fingerprint features, such as ridge patterns and minutiae points, ensuring accurate and reliable identification. With a resolution of up to 500 DPI (dots per inch), the sensor can capture fine details of a fingerprint with exceptional clarity, enabling precise recognition even in challenging environments. The R307S module integrates powerful processing capabilities, including a dedicated fingerprint recognition algorithm and memory storage for fingerprint templates. This allows the module to perform fast and accurate fingerprint matching directly on the device, eliminating the need for external processing units and reducing overall system complexity. Additionally, the module supports template storage for a large number of users, enabling scalable deployment in applications requiring support for multiple users or identities. One of the key features of the R307S module is its versatility and ease of integration. Designed with a compact form factor and a simple interface, the module can be easily integrated into existing hardware platforms, such as microcontrollers, single-board computers, and embedded systems. It communicates with the host device via standard interfaces such as UART (Universal Asynchronous Receiver/Transmitter), SPI (Serial Peripheral Interface), or USB (Universal Serial Bus), providing flexibility for integration with a wide range of systems. Security is paramount in biometric authentication systems, and the R307S module offers several features to ensure the integrity and confidentiality of user data. It employs advanced encryption techniques to protect stored fingerprint templates and communication channels, safeguarding against unauthorized access and tampering. Additionally, the module supports anti-spoofing measures to prevent unauthorized access using fake or replicated fingerprints, enhancing overall system security. The R307S module is accompanied by comprehensive software development tools and libraries, facilitating seamless integration into software applications. Manufacturers and developers can leverage SDKs (Software Development Kits) and APIs (Application Programming Interfaces) provided by the module’s manufacturer to develop custom applications tailored to their specific requirements. These tools enable developers to implement advanced features such as fingerprint enrollment, verification, and identification, as well as integration with existing security systems and databases. In summary, the R307S fingerprint identification biometric module offers a reliable, secure, and cost-effective solution for incorporating fingerprint recognition capabilities into various applications. Its high-performance optical sensor, powerful processing capabilities, and robust security features make it an ideal choice for applications requiring an accurate and reliable user authentication. Whether used in access control systems, time attendance terminals, or secure payment devices, the R307S module provides a seamless and efficient solution for enhancing security and user experience. Pinouts : 5V : Regulated 5V DC GND: Common Ground TXD: Data output – Connect to MCU RX RXD: Data Input – Connect to MCU TX TOUCH: Active Low output when there is a touch on the sensor by finger 3.3V : Use this wire to give 3.3V to sensor instead of 5V USB Cable Connections are 5V/D /D-/GND (Optional) Features Integrated image collecting and algorithm chip together, ALL-in-One. The fingerprint reader can conduct secondary development and can be embedded into a variety of end products. Low power consumption, low cost, small size, excellent performance. Professional optical technology, and precise module manufacturing techniques. Good image processing capabilities can successfully capture an image up to a resolution of 500 dpi. Package Includes 1 x R307s Optical Fingerprint Reader Sensor Module. 1 x 6-pin RMC Connector with wire SKU: IK-168 Categories: All Products, IR Proximity/Motion, Sensors Tags: Biometric sensor, Fingerprint Scanner, Fingerprint Sensor, optical sensor, Sensors Loading...Barcode:
