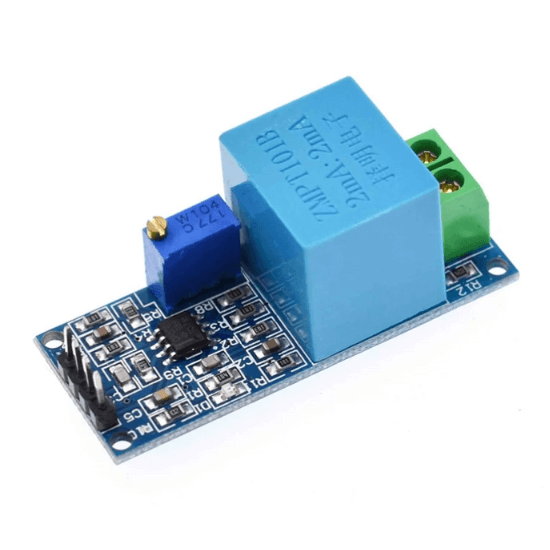

AC Voltage Sensor Module ZMPT101B (Single Phase) is the best for the DIY project, where we need to measure the accurate AC voltage with a voltage transformer. This is an ideal choice to measure the AC voltage using Arduino/ESP8266/Raspberry Pi like an open-source platform. In many electrical projects, an engineer directly deals with measurements with a few basic requirements like High galvanic isolation, Wide Range, High accuracy, and Good Consistency. Onboard precision miniature voltage transformer, The active phase AC output voltage transformer module. Onboard precision op-amp circuit, the signal sampling, and appropriate compensation for precise functions. Modules can be measured within 250V AC voltage, and the corresponding analog output can be adjusted. It is brand new, good quality high performance. At the heart of the ZMPT101B module lies the ZMPT101B IC, which serves as the primary sensing element responsible for detecting AC voltage signals. This specialized integrated circuit features a built-in voltage transformer and conditioning circuitry, optimized for AC voltage measurement in single-phase systems. The IC is designed to provide a proportional output voltage that accurately reflects the amplitude of the input AC voltage signal. The ZMPT101B module typically consists of the ZMPT101B IC, supporting passive components, and interface circuitry. The interface circuitry may include components such as resistors, capacitors, and operational amplifiers, configured to provide signal conditioning, amplification, and isolation functions. Additionally, the module may incorporate features like overvoltage protection and noise filtering to enhance performance and reliability in real-world applications. One of the key features of the ZMPT101B module is its compatibility with microcontrollers and digital signal processing (DSP) systems. The module outputs an analog voltage signal proportional to the measured AC voltage, allowing it to interface seamlessly with analog-to-digital converters (ADCs) or analog input channels of microcontrollers. This enables easy integration into various electronic systems, where the measured voltage can be processed, analyzed, and used to implement control algorithms or display voltage readings. The ZMPT101B module offers several advantages, including high accuracy, wide input voltage range, and low power consumption. With its high accuracy, typically within a few percentage points of the measured voltage, the module provides reliable voltage measurement suitable for precision applications. The wide input voltage range of the module allows it to measure AC voltages ranging from a few volts to several hundred volts, making it versatile and adaptable to different voltage levels encountered in various AC power systems. Another notable feature of the ZMPT101B module is its compact size and easy-to-use design. The module is often housed in a small form factor, making it suitable for integration into space-constrained applications. Additionally, the module typically requires minimal external components and straightforward wiring, simplifying installation and reducing development time and effort. Applications of the ZMPT101B module span across a broad range of industries and sectors. In power monitoring and energy management systems, the module is used to measure AC voltage levels in electrical grids, distribution systems, and renewable energy installations. In voltage regulation and control systems, the module serves as a feedback sensor, providing real-time voltage measurements for adjusting voltage levels and maintaining system stability. Overall, the AC voltage sensor module ZMPT101B (Single Phase) offers a reliable and efficient solution for AC voltage measurement in single-phase systems. With its high accuracy, wide input voltage range, and compact design, the module is well-suited for diverse applications requiring precise voltage monitoring and control. Whether deployed in industrial automation, smart grid infrastructure, or consumer electronics, the ZMPT101B module plays a vital role in ensuring the efficient and safe operation of AC power systems. Features: Low price Small size and lightweight Easy PCB mounting Good consistency Widely acclaimed Package Includes: 1 x AC Voltage Sensor Module ZMPT101B SKU: IK-151 Categories: All Products, Current/Voltage, Power Supply, Sensors Tags: Current and Frequency Meter, Digital Voltage Loading...Barcode:
