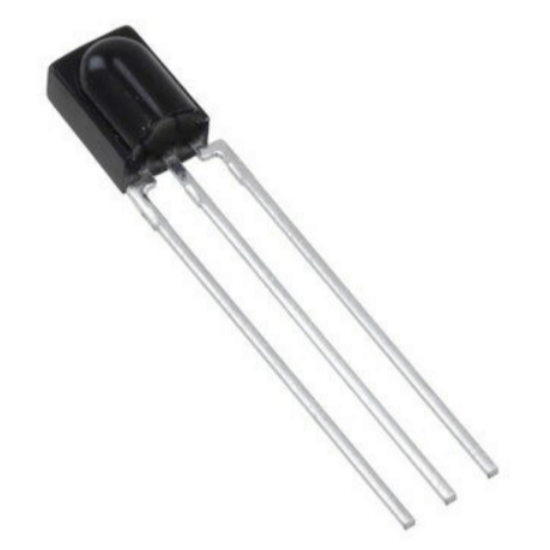

The TSOP1738 IR Receiver is an infrared (IR) receiver module widely used in remote control systems. Use this IR Receiver Diode – TSOP1738, a simple IR receiver for infrared remote control of your next project. With low power consumption and an easy-to-use package, it mates well with embedded electronics and can be used with common IR remotes. The TSOP1738 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame while the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP1738 is compatible with all common IR remote control data formats. It is designed to receive infrared signals transmitted at a frequency of 38 kHz, which is commonly employed in consumer electronics remote controls. The module consists of a photo detector, pre-amplifier, AGC (Automatic Gain Control) circuit, and a demodulator. Its sensitivity and immunity to ambient light make it suitable for various applications requiring remote control functionality. The TSOP1738 operates on a supply voltage typically ranging from 2.5V to 5.5V and provides a digital output signal that corresponds to the detected IR signal. With its compact size and straightforward interface, the TSOP1738 is a popular choice for integrating IR remote control capabilities into electronic projects and devices. Here are some common uses of the TSOP1738 IR receiver module in bullet points: Remote control systems: Used in TVs, DVD players, air conditioners, and other consumer electronics for receiving infrared signals from remote controllers. Home automation: Integrated into smart home devices to enable remote control functionality via IR remotes or smartphone apps. Robotics: Incorporated into robot designs to allow remote control operation using IR remotes. Security systems: Utilized in IR-based security systems for detecting and responding to remote control signals. Automotive applications: Integrated into automotive systems for controlling features such as car audio systems and climate control using IR remotes. Industrial automation: Employed in industrial environments for remote control of machinery and equipment. Gaming consoles: Used in gaming consoles and accessories for wireless control using IR remote controllers. Educational projects: Incorporated into educational projects to teach about infrared technology and remote control principles. DIY electronics: Utilized by hobbyists and DIY enthusiasts in various electronics projects requiring IR remote control capabilities. Medical devices: Integrated into medical equipment for remote control operation in healthcare settings. Here are more specifications of the TSOP1738 IR receiver module: Carrier frequency: 38 kHz Supply voltage: Typically 2.5V to 5.5V Supply current: Typically 5mA Operating temperature range: -25°C to 85°C Detection range: Typically up to several meters Output type: Digital output signal Output active low Photo detector type: PIN photodiode Filter type: Bandpass Dimensions: Small form factor, typically around 6mm x 6mm x 5mm Package type: Through-hole or surface-mount Pinout: Typically three pins, including VCC, GND, and output pin Sensitivity: High sensitivity to 38 kHz infrared signals while being immune to noise and ambient light interference Modulation: Demodulates IR signals based on the 38 kHz carrier frequency Application circuit: Requires minimal external components for operation, typically including a decoupling capacitor and pull-up resistor for the output pin Applications : Optical switch. Light detecting portion of a remote control. AV instruments such as Audio,TV,VCR,CD,MD,DVD,etc. Home appliances such as Air-conditioner, Fan,etc. CATV set-top boxes. Multi-media Equipment. Features: Very low supply current. Photo-detector and preamplifier in one package. Internal filter for PCM frequency. Improved shielding against EMI. Supply voltage: 2.5 V to 5.5 V. Improved immunity against ambient light. Package Includes: 2 x IR Receiver Diode – TSOP1738 SKU: IK-264 Categories: All Products, IR Proximity/Motion, Miscellaneous Tags: IR, IR Remote, IR Sensor, Receiver Diode, tsop1738, TSOP38238, VS1838B Loading...Barcode:
