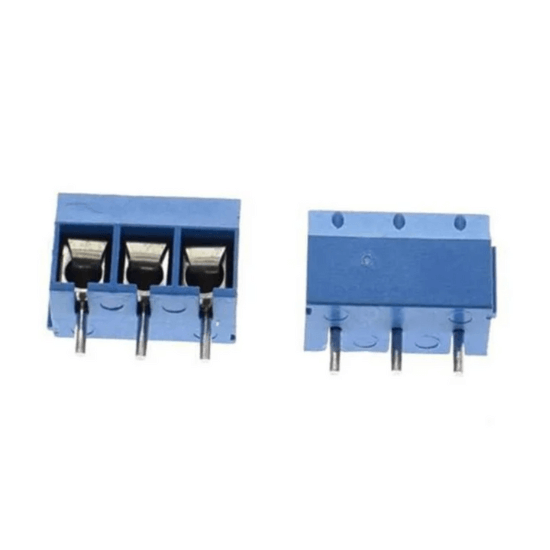

KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and nickel-plated brass contacts. The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0), and has good insulation properties. The KF301 3-pin 5.08mm pitch plug-in screw terminal block connector is a versatile and widely used component in electronic circuits, offering secure and reliable connections between wires and printed circuit boards (PCBs). This particular terminal block connector model, designated as KF301, is known for its robust construction, user-friendly design, and compatibility with various applications across different industries. The “KF301” designation specifies the model number or part name of the terminal block connector, providing a standardized reference for procurement and integration into electronic systems. The “3-pin” identifier indicates that the connector accommodates three electrical conductors or wires, while “5.08mm pitch” refers to the spacing between the pins. The 5.08mm pitch is a common measurement in terminal block design, ensuring compatibility with standard PCB layouts and components. The KF301 terminal block connector features a plug-in screw terminal design, which simplifies the wiring process and facilitates quick installation and maintenance. Each terminal block consists of three main components: the housing, the screw terminals, and the wire guards. The housing, typically made of durable thermoplastic or thermoset materials, provides mechanical support and insulation for the internal components. The screw terminals, usually made of brass or another conductive metal, securely hold the wires in place and establish electrical connectivity with the PCB. The wire guards prevent accidental contact between adjacent terminals, reducing the risk of short circuits or electrical hazards. Installation of the KF301 terminal block connector involves plugging the connector directly into a matching receptacle or socket on the PCB. The plug-in design eliminates the need for soldering or crimping, making it suitable for both prototype and production environments. Once plugged in, the terminal block connector forms a secure and stable connection with the PCB, ensuring reliable performance even in harsh operating conditions. The screw terminals of the KF301 connector allow for tool-assisted wire termination, offering a secure and vibration-resistant connection. Users can easily insert the stripped ends of the wires into the terminal slots and tighten the screws to clamp the wires in place. This screw-clamp mechanism provides excellent contact force and conductivity, minimizing resistance and ensuring efficient power or signal transmission within the circuit. The KF301 terminal block connector is designed for versatility and flexibility, with features that accommodate various wire sizes, types, and configurations. The terminal slots are typically color-coded or labeled to indicate polarity or signal assignments, facilitating correct wiring and preventing errors during installation. Additionally, the connector may include optional accessories such as jumper bars, marking labels, or protective covers to further customize its functionality and enhance safety. In terms of application, the KF301 terminal block connector finds widespread use in industrial automation, control systems, instrumentation, telecommunications, and consumer electronics. Its rugged construction, reliable performance, and ease of installation make it suitable for demanding environments where robust connectivity is essential. Whether used for power distribution, signal routing, or sensor interfacing, the KF301 connector provides a dependable solution for managing electrical connections in diverse applications. In summary, the KF301 3-pin 5.08mm pitch plug-in screw terminal block connector offers a combination of durability, versatility, and ease of use, making it a preferred choice for engineers, designers, and hobbyists seeking reliable connectivity solutions for their electronic projects. Its plug-in design, screw terminal construction and compatibility with standard PCB layouts make it an indispensable component in various industries and applications, contributing to the efficient and reliable operation of electronic systems worldwide. Features: Pin header: Tin-plated brass. Contacts: Nickel-plated brass. Strong, compact, and lightweight. Heat resistant. Package Includes: 1 x KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector SKU: IK-221 Categories: All Products, Cables & Connector, Prototyping & Misc, Terminal Blocks Tags: 2 pin, screw terminal Loading...Barcode:
