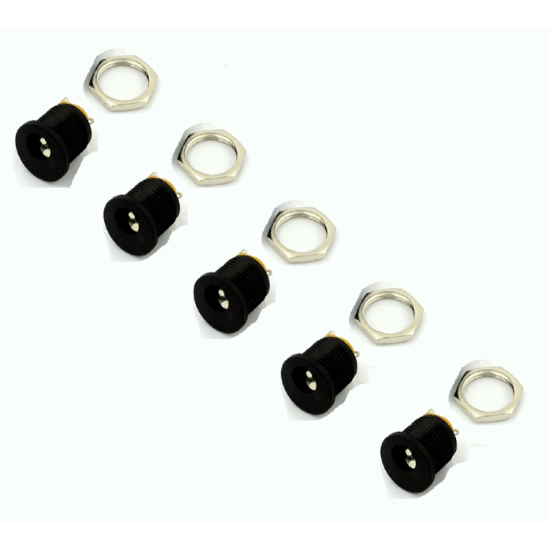

2.1×5.5mm DC Power Jack Socket Panel Mount(Female) comes with a Metal Nut to mount the jack in your Application. The 2.1×5.5mm DC Power Jack Socket Panel Mount (Female) is a versatile component widely used in electronic devices for secure power connections. Its panel-mount design ensures easy installation onto surfaces like circuit boards or enclosures. With a typical voltage rating ranging from 12V to 24V and varying current capacities, it caters to diverse applications, from power supplies to audio equipment. Constructed from durable materials and featuring solder or screw terminals, it offers reliable performance and easy wiring. Its resilience to environmental factors and repeated use makes it a staple in DIY projects and commercial electronics alike. DC Power Jack Socket has Plastic Cover which provides a tight connection with a male pin, Centre pin can be 2.1mm or 2.5mm. addition, the male plug is 2.5mm/2.1mm x 5.5mm also provides good environmental protections. DC Power Jack Socket is widely used in small-scale as well as prototyping projects where 12 to 30 Volt power supply needed such as household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Music Instrument, etc. The 2.1×5.5mm DC Power Jack Socket Panel Mount (Female) is a commonly used component in electronic devices for connecting power sources. This particular socket features a panel-mount design, meaning it can be securely attached to a surface such as a circuit board or enclosure. The dimensions of 2.1×5.5mm refer to the inner diameter and outer diameter of the plug that fits into the socket, ensuring compatibility with corresponding power plugs. This socket is typically used in applications where a stable and reliable connection for DC power input is required, such as in power supplies, battery chargers, audio equipment, and various electronic gadgets. Its female connector design allows it to receive and secure the male plug, providing a convenient and durable power connection. Here are some specifications for the 2.1×5.5mm DC Power Jack Socket Panel Mount (Female): Voltage Rating: Typically rated for low-voltage DC applications, commonly ranging from 12V to 24V, but can vary depending on the specific model and manufacturer. Current Rating: The maximum current carrying capacity of the socket, usually specified in amps (A), which determines the amount of electrical current it can safely handle without overheating or causing damage. Material: Constructed from durable materials such as metal or plastic to ensure longevity and reliability in various operating conditions. Mounting Type: Specifically designed for panel mounting, allowing for secure installation onto a surface such as a circuit board, chassis, or enclosure. Contact Configuration: Typically features two or three solder or screw terminals for easy connection to wires or cables carrying DC power. Operating Temperature Range: Specifies the temperature range within which the socket can safely operate without performance degradation or damage. Insulation Resistance: Indicates the ability of the socket to resist electrical leakage between its terminals, usually measured in ohms. Contact Resistance: Specifies the electrical resistance between the socket’s terminals and the plug, typically measured in milliohms (mΩ), ensuring efficient power transfer. Durability: Designed to withstand repeated insertion and extraction of plugs, as well as mechanical stress and environmental factors such as vibration and humidity. Power Supplies: The 2.1×5.5mm DC Power Jack Socket Panel Mount (Female) is frequently utilized in power supply units, enabling devices to receive consistent DC power input. Battery Chargers: It serves as a key component in battery chargers, facilitating the connection between the charger and the device being powered or charged. Audio Equipment: This socket is commonly found in audio equipment such as amplifiers, speakers, and mixers, providing a reliable power input for optimal performance. Electronic Gadgets: Various electronic gadgets, including routers, modems, and surveillance cameras, utilize this socket for efficient power delivery. DIY Electronics Projects: Hobbyists and DIY enthusiasts often incorporate this socket into their projects for powering custom-built electronic devices and prototypes. Package Includes : 5 x (2.1 x 5.5mm DC Power Jack Socket Panel Mount-female). SKU: IK-203 Categories: All Products, Adapter, Battery, Cables & Connector, Connector, Prototyping & Misc Tag: PCT and DC Power Connectors Loading...Barcode:
