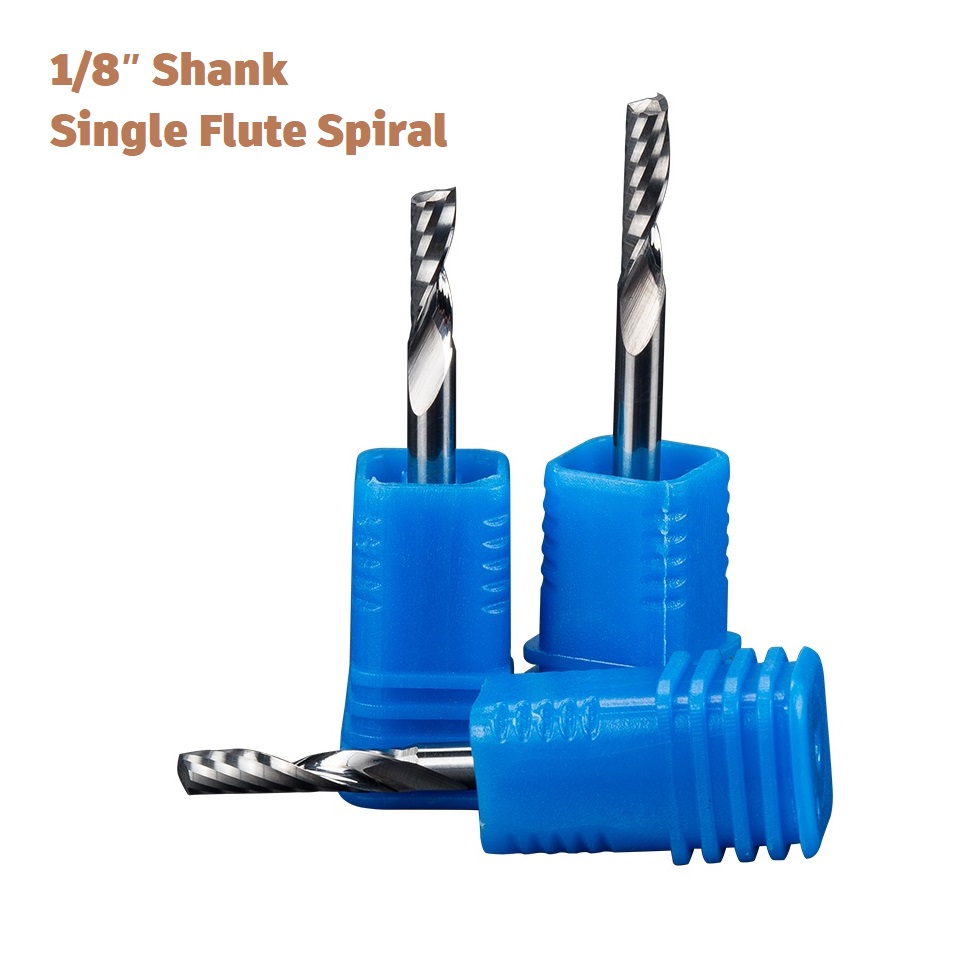

Item Name: 1/8″ Shank Single Flute CNC End Mill for Acrylic PVC Acrylic Bits type: Single Flute Spiral Material: Sandvik Tungsten steel Shank Size: 1/8 inch (3.175 mm) Length: Multiple, see size chart Measurement System: Imperial, Metric PCs in Item: 1 Manufacturer: N/A, Made in China Notes: for Acrylic, PVC board etc. Suggest operation speed: 20000~22000/min, 3-5 meter/min; Model Bit head diameter(d,mm) Bit head length (H,mm) Shank Diameter (D, Inch/mm) Length (L,mm) 3.175-1.0-3 1.000 3 1/8″, 3.175 38~39 3.175-1.0-4 1.000 4 1/8″, 3.175 38~39 3.175-1.2-4 1.200 4 1/8″, 3.175 38~39 3.175-1.2-6 1.200 6 1/8″, 3.175 38~39 3.175-1.5-4 1.500 4 1/8″, 3.175 38~39 3.175-1.5-6 1.500 6 1/8″, 3.175 38~39 3.175-1.5-12 1.500 12 1/8″, 3.175 38~39 3.175-2.0-4 2.000 4 1/8″, 3.175 38~39 3.175-2.0-6 2.000 6 1/8″, 3.175 38~39 3.175-2.0-8 2.000 8 1/8″, 3.175 38~39 3.175-2.0-10 2.000 10 1/8″, 3.175 38~39 3.175-2.0-12 2.000 12 1/8″, 3.175 38~39 3.175-2.0-17 2.000 17 1/8″, 3.175 38~39 3.175-2.0-22 2.000 22 1/8″, 3.175 45 3.175-2.5-4 2.500 4 1/8″, 3.175 38~39 3.175-2.5-6 2.500 6 1/8″, 3.175 38~39 3.175-2.5-8 2.500 8 1/8″, 3.175 38~39 3.175-2.5-10 2.500 10 1/8″, 3.175 38~39 3.175-2.5-12 2.500 12 1/8″, 3.175 38~39 3.175-2.5-15 2.500 15 1/8″, 3.175 38~39 3.175-2.5-17 2.500 17 1/8″, 3.175 38~39 3.175-3.175-6 3.175 6 1/8″, 3.175 38~39 3.175-3.175-8 3.175 8 1/8″, 3.175 38~39 3.175-3.175-10 3.175 10 1/8″, 3.175 38~39 3.175-3.175-12 3.175 12 1/8″, 3.175 38~39 3.175-3.175-15 3.175 15 1/8″, 3.175 38~39 3.175-3.175-17 3.175 17 1/8″, 3.175 38~39 3.175-3.175-22 3.175 22 1/8″, 3.175 46 3.175-3.175-25 3.175 25 1/8″, 3.175 51 3.175-3.175-28 3.175 28 1/8″, 3.175 51 3.175-3.175-32 3.175 32 1/8″, 3.175 50 3.175-3.175-42 3.175 42 1/8″, 3.175 70 3.175-3.175-52 3.175 52 1/8″, 3.175 80
