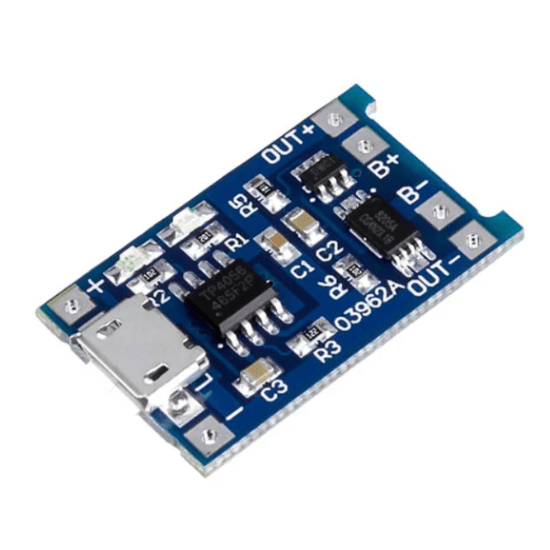

Note: This Product is available in two different variants of IC ( TP4056 and XL 4056A, HW-107 ) with the same working we will ship it randomly. This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished. Furthermore, when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. Manufactured under full machinery processing. Each module is tested OK before shipment from inventkart.com so it has high reliability for the best performance. In conclusion, it is special design for a single lithium battery charging. TP4056 Other features include the current monitor, under voltage lockout, automatic recharge, and two status pin to indicate charge termination and the presence of an input voltage. The TP4056 is a popular lithium-ion battery charger module widely used in various electronic applications. It is designed to efficiently and safely charge single-cell lithium-ion or lithium polymer batteries. The module typically operates with a micro USB input for power and provides a regulated charging voltage to the battery. One of the key features of the TP4056 is its integrated linear charging management and protection circuitry, which helps prevent overcharging, over-discharging, and overcurrent conditions, enhancing the safety and longevity of the battery. Additionally, the TP4056 module usually includes status indicator LEDs to indicate the charging status, making it user-friendly and convenient to monitor. Its small form factor and ease of integration make it suitable for a wide range of portable electronic devices, such as power banks, smartphones, tablets, and other battery-powered gadgets. Overall, the TP4056 offers a reliable and cost-effective solution for charging lithium-ion batteries in various electronic projects and applications. Using the module: Connect micro USB cable for power, or 5V DC to pads marked IN and IN- on the left-hand side of the module Connect cell to charge to B /B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT /OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, green LED indicates charging has finished. Never charge your battery at a rate greater than 1C. NOTE: 1. Ampere meter can only be connected to a 5v input end of the module. 2. It is better than the charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, a current of 400mAh is enough. 3. The connection wire should not be too thick. 4. Make sure the connect point is good. 5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to the chip. 6. NO Reverse polarity. Features : Led indicator: red is charging Green is fully charged. Current Protection: Yes Inversed polarity: NO. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy. Fully machinery automated processing, all patch parts manufacturing. Package Includes : 1 x TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection SKU: IK-152 Categories: All Products, Battery Charger, BMS(Battery Management System), Power Supply, Voltage Regulator Tags: Battery Charger, Li-Ion Charger, Lithium Ion Battery Charger, tp4056, TP4056 Charger Loading...Barcode:
