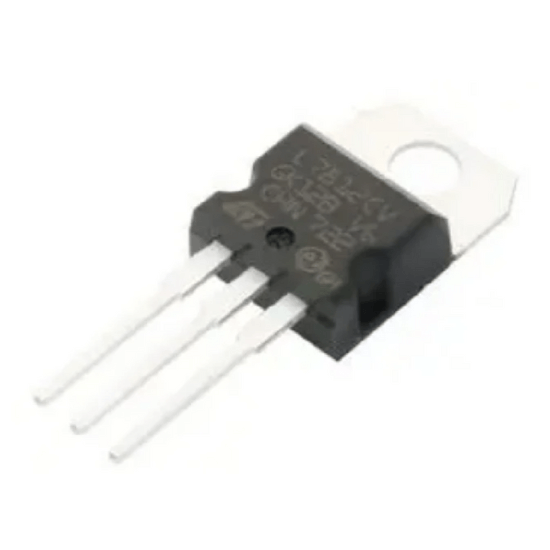

The LM7812 is a popular voltage regulator IC integrated circuit that provides a stable output voltage of 12 volts. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents It’s commonly used in electronic circuits to ensure a consistent power supply for various components. The “78” series of voltage regulators, including the LM7812, are widely used due to their reliability and ease of implementation. The LM7812 operates by taking an input voltage, which can range from a few volts higher than the desired output voltage up to a maximum of 35 volts, and regulating it down to a steady 12 volts output. This regulation is achieved through internal circuitry that adjusts the output voltage based on changes in the input voltage and load conditions. One key feature of the LM7812 is its ability to handle relatively high currents, typically up to 1 ampere, making it suitable for powering a variety of electronic devices and components. However, it’s important to ensure that the power dissipation within the IC remains within acceptable limits, especially when handling higher input voltages or larger load currents. The LM7812 comes in a standard TO-220 package, which allows for easy mounting on a heatsink if necessary to dissipate excess heat generated during operation. It also has built-in protection features such as thermal shutdown and current limiting to prevent damage in case of overloading or overheating. Overall, the LM7812 is a versatile and reliable voltage regulator IC commonly used in electronic projects and applications where a stable 12-volt power supply is required. Its simplicity of use, along with its robust performance characteristics, has made it a staple component in the world of electronics. Here are some additional features of the LM7812 voltage regulator IC: Wide Input Voltage Range: The LM7812 can accept input voltages ranging from a few volts above the desired output voltage up to a maximum of 35 volts, providing flexibility in various applications. Low Dropout Voltage: It has a low dropout voltage, meaning it can regulate the output voltage even when the input voltage is only slightly higher than the desired output voltage. This feature is particularly useful in battery-powered applications. Internal Thermal Shutdown: The IC includes internal thermal shutdown protection, which shuts down the regulator if it exceeds a safe operating temperature. This protects the IC from damage due to excessive heat. Internal Current Limiting: It has built-in current limiting to protect the IC and the load from excessive currents. This feature ensures that the IC operates within its safe operating limits even under high load conditions. Short Circuit Protection: The LM7812 also provides short circuit protection, which limits the current flow in the event of a short circuit condition. This helps prevent damage to the IC and the connected components. Fixed Output Voltage: The LM7812 provides a fixed output voltage of 12 volts, making it suitable for applications where a stable voltage is required. Easy to Use: It comes in a standard TO-220 package, which is easy to mount on a heatsink if necessary. The pinout is straightforward, simplifying the design and assembly of circuits. Reliability: The LM7812 is known for its reliability and long-term stability, making it a trusted choice in various electronic designs and applications. Here are some common uses of the LM7812 voltage regulator IC in bullet points: Provides a stable 12-volt output from a higher input voltage source. Ensures consistent power supply for various electronic components and devices. Used in power supplies for microcontrollers, sensors, and other digital circuits requiring a 12-volt input. Can be employed in automotive electronics for regulating voltage in charging systems or powering accessories. Utilized in DIY projects and hobbyist circuits where a reliable 12-volt power source is needed. Acts as a voltage stabilizer in audio amplifiers, ensuring a steady supply for optimal performance. Integrated into battery charging circuits to maintain a constant voltage during charging. Found in voltage regulator modules for powering Arduino boards and other microcontroller-based systems. Incorporated into industrial control systems for providing regulated power to control panels and sensors. Used in telecommunications equipment to stabilize voltage fluctuations in power supplies. Applications: Power Management Features: Thermal overload protection Output transition SOA protection Short circuit protection 2 % output voltage tolerance Guaranteed in extended temperature range (A version) Package Includes: 1 x LM7812 7812 IC 12V Voltage Regulator ICv SKU: IK-284 Categories: All Products, Passive Components, Power Supply, Voltage Regulator Tags: 7812, ic, Voltage Regulator Loading...Barcode:
