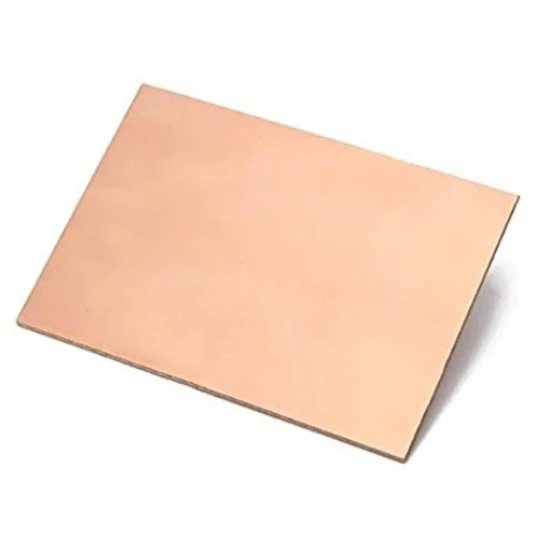

FR4 Copper Clad Plate Laminate Single Side PCB is a glass fiber epoxy resin-based PCB with copper foil on one side. The epoxy glass fiber forms the substrate on which the copper foil is hot pressed only on one side and the other side remains bare. It has a copper core for strength and the substrate acts as electrical insulation. The PCB is ideal for prototyping and copper-clad copper-clad plate laminate single-side PCBs are an essential component in modern electronics, serving as the foundation for many electronic circuits and devices. These PCBs are constructed from FR4 laminate material, a type of fiberglass-reinforced epoxy resin, which provides excellent electrical insulation and mechanical strength. The copper clad plate refers to the base material with a thin layer of copper adhered to one side, allowing for the creation of conductive traces and circuitry. The FR4 material is chosen for its high thermal stability, flame resistance, and mechanical durability, making it suitable for a wide range of applications across industries. Its dielectric properties ensure efficient signal transmission and minimize signal loss, critical for high-frequency and high-speed circuits. Additionally, FR4 is compatible with standard PCB manufacturing processes, including drilling, etching, and soldering, enabling cost-effective production of single-sided PCBs. The copper clad plate laminate single side PCB configuration consists of a single layer of copper foil bonded to one side of the FR4 laminate substrate. This copper layer serves as the conductive surface for creating circuit traces, pads, and vias, allowing for the routing of electrical signals between components and connection points. The single-sided design simplifies PCB fabrication and assembly, making it suitable for simpler circuits and cost-sensitive applications. One of the primary advantages of single-sided PCBs is their simplicity and affordability. With only one layer of conductive material, these PCBs are easier to manufacture and assemble compared to their multilayer counterparts, reducing production costs and lead times. Single-sided PCBs are commonly used in applications where space is not a constraint and where cost-effective solutions are desired, such as consumer electronics, lighting fixtures, power supplies, and automotive systems. Despite their simplicity, single-sided PCBs offer sufficient functionality for many electronic applications. They can accommodate a wide range of components, including through-hole and surface-mount devices, allowing for the implementation of various circuit designs and functionalities. Single-sided PCBs are often used in applications where space is limited, such as in small electronic devices, control panels, and LED displays, due to their compact form factor and ease of integration. The manufacturing process for single-sided PCBs typically involves several key steps. First, the FR4 laminate material is cut to the desired size and shape using precision cutting equipment. Next, a thin layer of copper foil is laminated onto one side of the substrate using heat and pressure, forming the copper clad plate. The desired circuit pattern is then transferred onto the copper layer using a photoresist or etching mask, which is then etched away using chemical etchants to create the circuit traces and pads. Finally, holes are drilled into the PCB for component mounting and electrical connections, and the board is cleaned and inspected before being shipped to the customer. In conclusion, FR4 copper clad plate laminate single side PCBs are essential components in electronics manufacturing, providing a cost-effective and reliable solution for creating simple electronic circuits and devices. Their versatility, affordability, and ease of manufacturing make them suitable for a wide range of applications across industries, from consumer electronics to industrial automation. Whether used in lighting fixtures, control panels, or automotive systems, single-sided PCBs play a vital role in enabling the functionality and performance of modern electronic devices. Note: 1. The PCB may have scratches as it is cleaned before shipping. 2. The product dimensions may vary from the images. Features: Foil: Copper. Ideal for prototyping. Package Included: 1 x FR4 Copper Clad Laminate Single Side PCB. SKU: IK-201 Categories: All Products, PCB/VeroBoards, Prototyping & Misc Tags: board, copper board, pcb, single side pcb Loading...Barcode:
