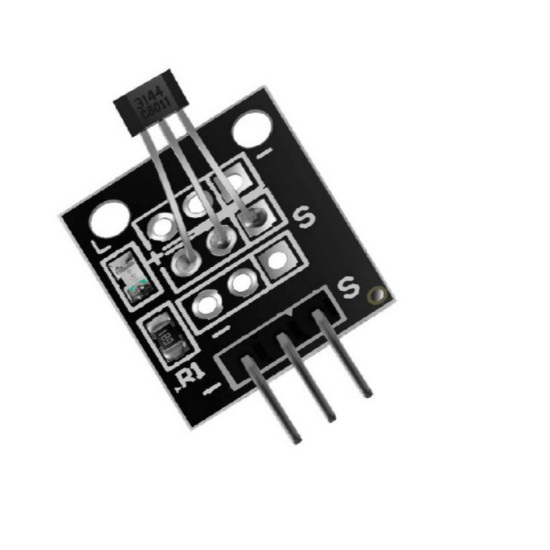

The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a switch that will turn on/off in a magnetic field. If no magnetic field is present, the signal line of the sensor is HIGH (3.5 V). If a magnetic field is presented to the sensor, the signal line goes LOW, at the same time the LED on the sensor lights up. An onboard LED will also indicate the presence of a magnetic field. The A3144 Hall Effect Sensor Module is a versatile electronic component widely used in various applications. Utilizing the Hall Effect principle, this sensor can detect the presence of magnetic fields. Its compact design and compatibility with different microcontrollers make it suitable for integration into projects such as magnetic switches, proximity sensing, and motor control systems. The A3144 Hall Effect Sensor Module typically consists of the A3144 Hall Effect sensor IC, along with supporting circuitry like voltage regulators and signal conditioning components. It operates on a wide voltage range and provides a digital output signal, making it easy to interface with digital systems. With its reliability and ease of use, the A3144 Hall Effect Sensor Module is a popular choice among hobbyists, students, and professionals for sensing magnetic fields in a variety of applications. Here are some common uses of the A3144 Hall Effect Sensor Module presented in points: Magnetic switches: The A3144 sensor module can be employed in magnetic switches for detecting the opening or closing of doors, windows, or cabinets based on the presence or absence of a magnetic field. Proximity sensing: It can serve as a proximity sensor to detect the presence of magnets or magnetic objects within a certain range, useful in applications such as position sensing in robotics or security systems. Speed measurement: By coupling the sensor with a rotating magnetic disk or gear, it can measure the speed of rotation in machinery or vehicles, providing valuable feedback for control systems. Current sensing: When used in conjunction with a current-carrying conductor and a magnet, the sensor can detect the flow of current, enabling applications like motor current monitoring or overcurrent protection. Position detection: The A3144 sensor module can determine the position of a magnet along a linear or rotational axis, facilitating applications like rotary encoders or linear displacement sensors. Magnetic field mapping: It can be employed in scientific or engineering projects to map the magnetic field distribution in a particular area, aiding in research or troubleshooting tasks. Security systems: The sensor module can be integrated into burglar alarms or access control systems to detect the unauthorized opening of doors or windows using magnets as triggers. Automotive applications: In automotive electronics, the sensor can be utilized for tasks such as detecting the position of the throttle pedal, and gearshift lever, or detecting the presence of a magnetic field in proximity to vehicle components. Smart appliances: It can be integrated into smart appliances for tasks such as detecting the position of refrigerator doors or washing machine lids, ensuring proper operation and safety. DIY projects: Hobbyists and enthusiasts can incorporate the A3144 sensor module into a wide range of DIY projects, from simple magnetic switches to complex interactive installations, leveraging its versatility and ease of use. Pin Connection Connect the Powerline (middle) to 5V and ground (-) to GND. Connect signal (s) to any digital pin on the Arduino. Features Of A3144 Hall Effect Sensor Module : Digital Output Hall-effect sensor. Operating voltage: typically 5V. Output Current: 25mA. It can be used to detect both the poles of a magnet. The output voltage is equal to the operating voltage. Operating temperature: -40°C to 85°C. Turn on and Turn off time is 2 μsec each. Inbuilt reverse polarity protection. Suitable for Automotive and Industrial Applications. Package Includes : 1 x A3144 Hall Effect Sensor Magnet Detector Switch for Arduino. SKU: IK-225 Categories: All Products, IR Proximity/Motion, Miscellaneous Tags: Hall Effect, Hall Effect Sensor, Magnetic Sensor, Magnetism Detection Loading...Barcode:
