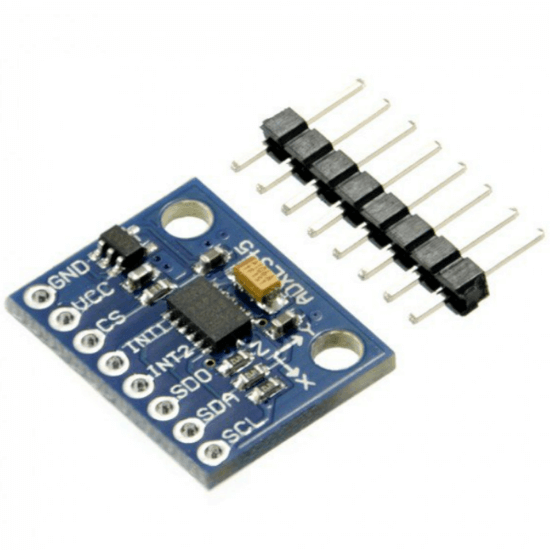

ADXL345 Tripple Axis Accelerometer Board is a small, thin, low-power, 3-axis accelerometer with a high resolution (13-bit) measurement at up to ±16g. Digital output data is formatted as a 16-bit two’s complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. The ADXL345 Tripple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent-pending 32-level first-in, first-out (FIFO) buffer can be used to store data to minimize host processor intervention. The ADXL345 Triple Axis Accelerometer Board is a compact and versatile sensor module designed for measuring acceleration in three dimensions. It features Analog Devices‘ ADXL345 sensor chip, renowned for its accuracy and reliability in detecting changes in motion. With its small form factor and low power consumption, this board is ideal for a wide range of applications including robotics, motion sensing, gesture recognition, and tilt sensing. The ADXL345 sensor provides high-resolution output over a selectable range of ±2g, ±4g, ±8g, or ±16g, allowing users to tailor sensitivity to their specific needs. Communication with the board is straightforward via I2C or SPI interfaces, making it compatible with various microcontrollers and development platforms. Whether used in consumer electronics, industrial monitoring systems, or research projects, the ADXL345 Triple Axis Accelerometer Board offers precise and reliable motion detection capabilities in a convenient package. Here are some common uses of the ADXL345 Triple Axis Accelerometer Board: Motion detection: It can be used to detect motion in various applications such as security systems, automated lighting, and alarm systems. Tilt sensing: The accelerometer board can be employed to detect tilt and orientation changes in devices like gaming controllers, drones, and vehicle navigation systems. Gesture recognition: By analyzing acceleration patterns, the board can recognize specific gestures or movements, enabling intuitive control interfaces for electronic devices and appliances. Robotics: It serves as a fundamental component for robot navigation, stabilization, and gesture-based control systems, enhancing their agility and responsiveness. Vibration monitoring: The accelerometer board can be utilized to measure and analyze vibrations in machinery, equipment, and structures for predictive maintenance or fault detection purposes. Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. Applications : Pointing devices. Handsets. Medical Instrumentation. Gaming. Industrial instrumentation. Personal navigation devices. Hard disk drive (HDD) protection. Fitness equipment. defense and aerospace. Note: This package does not include the Arduino board, you have to buy it separately. Features : Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command Wide temperature range (−40°C to 85°C). 10,000 g shock survival. Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, the faster load speed of response, very suitable for high-noise power supply environment. User-selectable resolution Fixed 10-bit resolution. Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges). Package Includes : 1 x ADXL345 Tripple Axis Accelerometer Board. SKU: IK-194 Categories: All Products, Accelerometer/Gyro Tags: 3-Axis Accelerometer, Accelerometer, ADXL345, Digital, Digital Accelerometer, IMU, Inertial Measurement Unit, Robotic Sensors, Tilt Sensor Loading...Barcode:
