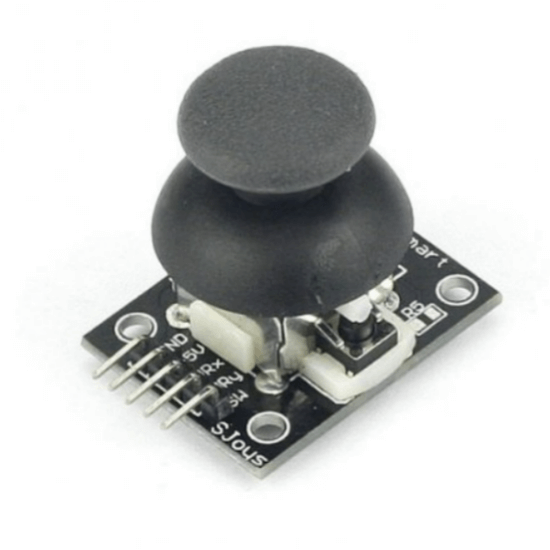

This is the JoyStick Module PS2 Breakout Sensor very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is pressed down. With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the “hat”. It also contains a pressable switch by pushing the “hat”. It also contains a pressable switch by pushing the “hat” down. Similar to the XBOX controller. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses the 5V power supply, and value, when reading through analog input, would be about 2.5V, a value will increase with joystick movement and will go up till maximum 5V; the value will decrease when the joystick is moved in other direction till 0V. The Joystick Module Breakout Sensor is a versatile input device commonly used in electronics projects. It consists of two potentiometers, one for the X-axis and one for the Y-axis, allowing users to control movement in two dimensions. The joystick also typically features a push-button switch that can be activated by pressing down on the joystick itself. This switch is often used for additional functionality within projects. The module usually connects to a microcontroller or other electronic device via analog or digital input pins, making it compatible with a wide range of systems. It’s commonly utilized in applications such as robotics, gaming peripherals, and user interfaces for its intuitive control capabilities. With its compact size and straightforward interface, the Joystick Module Breakout Sensor is a popular choice for hobbyists and professionals alike seeking precise control in their projects. The Joystick Module Breakout Sensor finds applications across various fields due to its versatile nature. Here are some common uses: Robotics Control: Joystick modules are frequently employed to control the movement of robotic arms, vehicles, and drones. The precise control offered by the joystick allows operators to maneuver these devices with accuracy. Gaming Peripherals: In gaming, joysticks are used in flight simulators, racing games, and other genres where analog control is desired. They provide a more immersive and intuitive gaming experience compared to traditional keyboard or mouse controls. Remote Control Systems: Joystick modules serve as input devices for remote control systems, allowing users to control devices such as remote-controlled cars, boats, or planes. User Interfaces: They are integrated into various user interfaces, such as control panels for industrial machinery, medical equipment, and simulators. The joystick’s ergonomic design and intuitive operation make it suitable for controlling complex systems. Accessibility Devices: Joysticks are utilized in assistive technology devices for individuals with disabilities. They can be adapted to control wheelchairs, computer interfaces, and other assistive devices, providing greater independence and accessibility to users. Applications: 1.As square wave signal generator which generates a square wave signal 2. To provide a signal to the stepping motor driver 3. Adjustable pulse generation for chip use 4. Produce variable pulse signal, the control-related circuit (PWM dimming, speed) Module Description: Frequency is divided into three ranges: 1.XXX (no decimal point):the smallest unit is 1Hz,the range 1Hz-999Hz 2.XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz-99.9KHz 3.X.X.X.(there is three decimal point): the smallest unit is 1Khz; the range 1KHz-150KHz Frequency Display Example: 1.”100″ indicates that the PWM output pulse of 100Hz 2.”54.1″ indicates that the PWM output pulse of 54.1KHz 3.”1.2.4.” Indicates that the PWM pulse output 124KHz 4.Duty Cycle in the range:0 to 100 5. Three frequencies duty cycle is the same, all the parameters non-volatile Features: 2.54mm pin interface leads Long service life and stable performance Standard interface and electronic building blocks Widely use in Arduino DIY projects Cross rocker as a two-way 10K resistor, with the rocker in a different direction. Package Includes: 1 x JoyStick Module PS2 Breakout Sensor Knob Hat SKU: IK-173 Categories: All Products, Miscellaneous, Sensors Tag: PS2 Joystick breakout Loading...Barcode:
