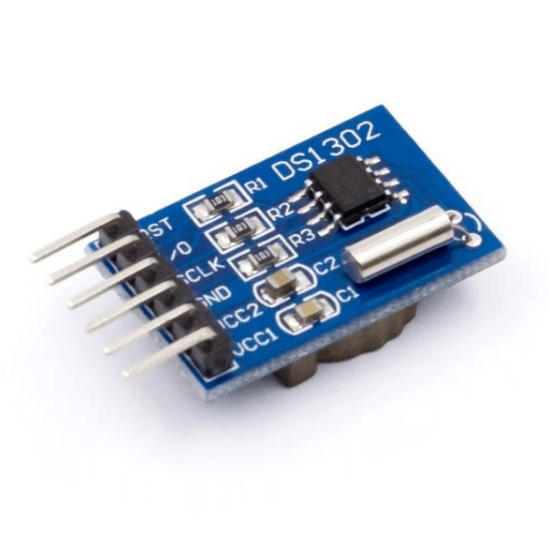

TheDS1302 Real Time Clock (RTC) Module without Battery works very much like a watch. The RTC module accurately keeps time with a precise oscillator and is maintained with a small battery (not included). It is used to give an accurate date and time in many applications. The RTC module is ideal in any time-critical applications like attendance systems, digital cameras, automated sprinkler systems, or a time and calendar display. As its name suggests, the DS1302 Real Time Clock (RTC) Module without Battery is based on the DS1302 chip, a highly integrated RTC chip from Maxim Integrated, renowned for its accuracy, reliability, and low power consumption. Unlike some versions of the DS1302 module that come with an onboard battery for backup power, this variant operates solely on external power, making it a cost-effective option for projects where backup power is not a requirement. At the heart of the DS1302 RTC module is the DS1302 chip, which features a real-time clock/calendar, 31 bytes of static RAM, and a 3-wire serial interface. The real-time clock/calendar circuitry accurately tracks time in hours, minutes, seconds, days, months, and years, with leap year compensation up to the year 2100. The 31 bytes of static RAM provide non-volatile storage for user-defined data, such as alarm settings, configuration parameters, or system status information. The DS1302 RTC module interfaces with external microcontrollers or other devices via a simple 3-wire serial interface, consisting of a data line (IO), a clock line (SCLK), and a chip select line (CE). This straightforward interface makes it easy to integrate the module into a wide range of projects, allowing developers to access and control the RTC functionality with minimal effort. One of the key features of the DS1302 Real Time Clock (RTC) Module without a Battery module is its low power consumption, which is crucial for battery-powered and energy-efficient applications. The DS1302 chip incorporates power-saving features such as trickle charging and automatic power-down mode, ensuring minimal power consumption during idle periods. This makes the module suitable for portable devices, data loggers, weather stations, and other applications where power efficiency is paramount. Despite its lack of an onboard battery, the DS1302 RTC module can maintain accurate timekeeping even in the absence of external power, thanks to its integrated trickle charger circuitry. When external power is applied, the module charges an external supercapacitor or rechargeable battery, which can then provide backup power to the RTC chip during power outages or when external power is disconnected. This backup power source ensures that the RTC continues to track time and retain user-defined data, preserving system integrity and reliability. The DS1302 RTC module is compatible with a wide range of microcontrollers, including popular platforms such as Arduino, Raspberry Pi, ESP8266, and ESP32. This compatibility ensures broad applicability across various projects and development environments, making it a popular choice among electronics enthusiasts, hobbyists, students, and professionals. In addition to its timekeeping capabilities, the DS1302 RTC module can be used for various timing and scheduling applications, such as event logging, data timestamping, and system automation. Its accurate timekeeping and versatile features make it an indispensable component in embedded systems, industrial control systems, home automation projects, and more. In conclusion, the DS1302 Real-Time Clock (RTC) Module without Battery offers accurate timekeeping, low power consumption, and versatile functionality in a compact and cost-effective package. With its easy integration, compatibility, and reliability, it serves as a fundamental building block for a wide range of electronic projects and applications, empowering developers to create sophisticated time-aware systems with ease. Pin Configuration VCC2 → 5 V/3.3V GND → GND CLK → P02 DAT → P01 RST → P00 Features Crystal 32.768KHz, matching capacitance 6pF DS1302 8-pin SMD homemade chips Seconds, Minutes, Hours, Day of Month, Day of Week, and Year Package Includes 1 x DS1302 Real Time Clock Module without Battery SKU: IK-121 Categories: All Products, Clock & Timer ICs, Miscellaneous, Switches & Keypads Tags: DS1302 RTC, Real Time Clock Module, RTC Module Loading...Barcode:
