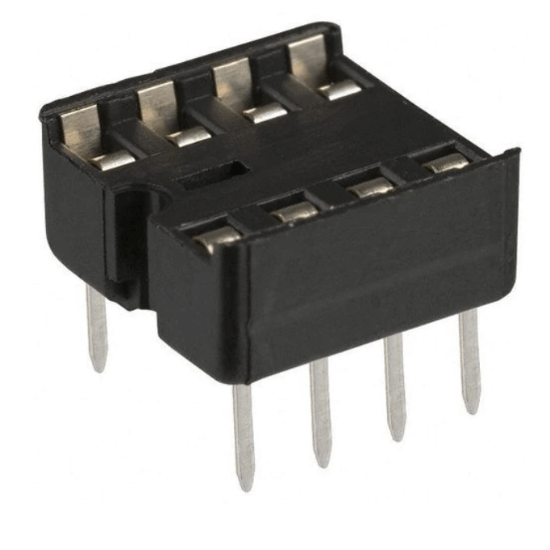

The 8-pin DIP IC Narrow Socket Base Adaptor is a component designed to accommodate 8-pin Dual In-line Package (DIP) integrated circuits (ICs). Multipin Pin Wide IC Socket base adaptor is an IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. The IC base is for a wide IC. The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming. It serves as an interface between the IC and the circuit board, allowing for easy insertion and removal of the IC without soldering it directly onto the board. This adaptor is particularly useful in situations where the IC needs to be frequently replaced or where experimentation with different ICs is required. By using a socket base adapter, the IC can be easily swapped out without risking damage to the circuit board. The “narrow” designation indicates that the adaptor is designed for use with ICs that have a narrower pin spacing compared to standard DIP packages. This ensures compatibility with a wide range of ICs while still providing a secure connection. Overall, the 8-pin DIP IC Narrow Socket Base Adaptor provides convenience, flexibility, and protection for your circuit designs, making it a valuable tool for electronics enthusiasts and professionals alike. Here are some additional features of the 8-pin DIP IC Narrow Socket Base Adaptor: High-Quality Construction: Built with durable materials to ensure longevity and reliability in demanding electronic applications. Low Profile Design: Features a compact and space-saving design, making it suitable for use in projects with limited space constraints. Good Electrical Contact: Provides secure and reliable electrical contact between the IC and the circuit board, minimizing signal loss and ensuring proper functionality. Heat Dissipation: Designed to facilitate efficient heat dissipation to prevent overheating of the IC, especially during prolonged operation or under high loads. RoHS Compliance: Manufactured in compliance with RoHS (Restriction of Hazardous Substances) regulations, ensuring environmental friendliness and safety in electronic applications. Versatile Mounting Options: These can be easily mounted onto circuit boards using various methods, such as through-hole soldering or surface mounting, depending on the specific application requirements. Wide Temperature Range: Operates reliably over a wide temperature range, making it suitable for use in both commercial and industrial environments where temperature fluctuations may occur. Labeling Options: Some adapters may feature labeling options, such as PINs or orientation indicators, to assist with the proper installation and alignment of the IC. Here are the uses of the 8-pin DIP IC Narrow Socket Base Adaptor listed in points: Flexible IC Replacement: Allows for easy insertion and removal of 8-pin DIP ICs without soldering, making it convenient to replace ICs during testing or troubleshooting. Experimentation: Facilitates experimentation with different ICs by providing a platform for quick interchangeability without the need for soldering or desoldering. Protection for Circuit Boards: Protects circuit boards from damage that can occur during soldering and desoldering processes by eliminating the need to directly solder ICs onto the board. Rapid Prototyping: Speeds up prototyping processes by simplifying the process of swapping out ICs to test different functionalities or configurations. Education and Learning: Useful in educational settings for teaching electronics concepts, as it allows students to easily swap ICs and observe their effects on circuit behavior. Compatibility Assurance: Ensures compatibility with a variety of 8-pin DIP ICs with narrow pin spacing, providing a versatile solution for different circuit designs. Enables Temporary Connections: Ideal for temporary connections or projects where permanent soldering is not desired, such as breadboarding or temporary circuit setups. Maintenance and Repair: Facilitates maintenance and repair tasks by providing a socketed connection for ICs, simplifying the process of replacing faulty components. 1 x 8 Pin IC base adaptor SKU: IK-292 Categories: All Products, Clock & Timer ICs, Integrated Circuits Tag: 8pin base Loading...Barcode:
