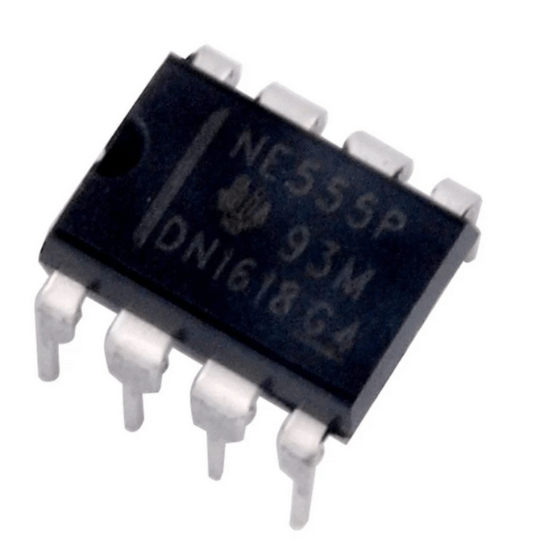

The NE 555 P timer IC is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by the use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The NE555P is a highly versatile and widely used timer integrated circuit (IC) packaged in a PDIP-8 (Plastic Dual In-line Package with 8 pins). Developed by Signetics (now part of Texas Instruments), the NE555P has become a staple component in electronic circuits requiring precise timing functions. Its simplicity, reliability, and ease of use make it a popular choice among hobbyists, students, and professionals alike. At its core, the NE555P operates as a monolithic timing circuit capable of generating accurate time delays, oscillations, or pulse-width modulation (PWM) signals. Its functionality is based on an array of comparators, flip-flops, and resistors arranged in a configuration known as a ‘555 timer’ or ‘555 oscillator’. This architecture allows the NE555P to perform a variety of timing tasks with minimal external components. One of the key features of the NE555P is its ability to operate in three distinct modes: astable, monostable, and bistable. In astable mode, the NE555P functions as a free-running oscillator, generating a square wave output with a frequency and duty cycle determined by external timing components. This mode is commonly used in applications such as clock generation, tone generation, and LED flashers. In monostable mode, the NE555P operates as a one-shot timer, producing a single output pulse of a duration determined by external timing components in response to a trigger input. This mode is often employed in applications such as pulse generators, time delay circuits, and debounce circuits. In bistable mode, the NE555P functions as a flip-flop, maintaining one of two stable output states indefinitely until triggered to switch to the other state. This mode is useful for applications requiring toggling between two states, such as in-memory circuits, frequency dividers, and binary counters. The NE555P operates over a wide voltage range, typically from 4.5 to 15 volts, making it compatible with a variety of power supply configurations. Its low power consumption and high noise immunity characteristics ensure reliable operation in diverse environmental conditions. The NE555P is housed in a PDIP-8 package, which offers ease of handling, soldering, and compatibility with standard breadboard and PCB layouts. Its pinout layout follows industry-standard conventions, simplifying integration into circuit designs and ensuring compatibility with other components. Moreover, the NE555P is supported by comprehensive datasheets, application notes, and online resources provided by its manufacturer and various electronics forums. These resources offer guidance on proper usage, operating conditions, and application examples, enabling engineers and hobbyists to harness the full potential of the NE555P in their projects. Despite its widespread use, it’s important to note that the NE555P has certain limitations, such as limited frequency range in astable mode and susceptibility to variations in temperature and supply voltage. Additionally, care must be taken to ensure proper bypassing and decoupling to minimize noise and interference. In conclusion, the NE555P PDIP-8 timer IC represents a versatile and reliable solution for timing and oscillator applications in electronic circuits. Its simplicity, flexibility, and affordability have made it a favorite among designers seeking precise timing functions in a compact and easy-to-use package. Whether used in educational projects, hobbyist endeavors, or commercial products, the NE555P continues to be a go-to choice for engineers and enthusiasts seeking reliable timing solutions. Features: Timing from microseconds to hours A stable or monostable operation Adjustable duty cycle TTL-compatible output can sink or source up to 200 Applications: Clock & Timing, Consumer Electronics, Aerospace, Defence, Military, Embedded Design & Development Package Includes: 1 x NE 555 P PDIP-8 Timer IC (Pack of 5) SKU: IK-291 Categories: All Products, Amplifiers, Clock & Timer ICs, Electronic Components, Integrated Circuits Tags: Clock, Timer and Counter ICs Loading...Barcode:
