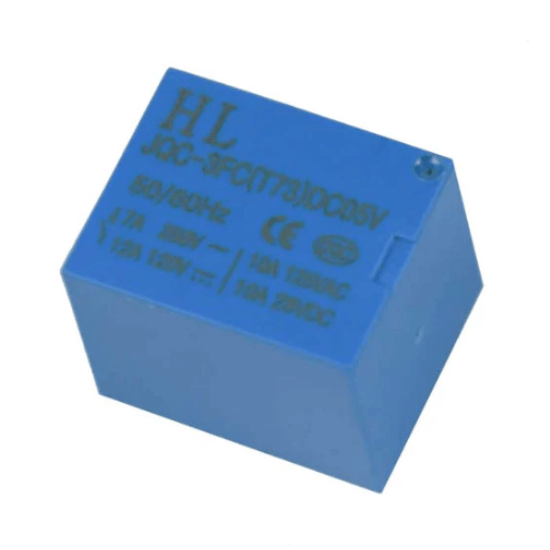

The Relay DC 5V 7A is an electrical switch that operates at a voltage of 5 volts and can handle a maximum current of 7 amps. SPDT(Single Pole Double Throw) Relay DC is used as a switch for high-current AC/DC appliances that need to be controlled from a microcontroller or sensor output. 5V PCB Mount Sugar Cube SPDT Relay instead of its small size can switch a load of 7A connected to it. The coil resistance of this relay is 70 ohm whereas the coil current is 70mA. The trigger voltage for this relay is 5V. There are 5 pins in this Relay Dc i.e., Coil end 1, Coil end 2, COM(common), NC, and NO. Coil ends 1 and 2 trigger ON/OFF the relay. One end is connected to a 5V supply and the other is connected to the ground of the circuit. Common is connected to the one end of the load to be controlled. The other end of the load is connected to either NC or NO. If the load is connected to NC(Normally Closed) then the load remains ON before trigger. And if it is connected to NO(Normally Open) then the load remains OFF before trigger. These relays are usually used in home automation, switching circuits, security circuits, etc. This type of Relay DC is commonly used in electronic circuits to control higher-power devices or circuits with lower-power signals. It serves as a switch that can be controlled by a low-voltage signal, making it suitable for a variety of applications such as home automation, automotive electronics, and industrial control systems. With its capability to handle up to 7 amps of current, it is suitable for driving moderately high-power loads while providing the necessary isolation between the control signal and the load. It typically consists of a coil that generates a magnetic field when energized by the control signal, causing the switch contacts to open or close, thereby allowing or interrupting the flow of current to the connected load. The Relay DC 5V 7A is compact, reliable, and widely available, making it a popular choice for many electronic projects and applications. Here are some additional features of a Relay DC 5V 7A relay highlighted in points: Compact Size: Despite its high current handling capacity, it typically comes in a compact form factor, making it suitable for space-constrained applications. Low Power Consumption: It consumes minimal power when in standby mode, making it energy-efficient for continuous operation. High Reliability: Designed with durable materials and components, it offers reliable performance over an extended period, even in harsh environments. Noise Suppression: Equipped with noise suppression circuitry, it helps minimize electromagnetic interference (EMI) and ensures stable operation in noisy environments. Quick Response Time: With fast switching capabilities, it provides quick response times when activating or deactivating connected devices or circuits. Wide Operating Temperature Range: Capable of operating within a wide temperature range, it remains functional in both high and low-temperature environments. Versatile Mounting Options: It often comes with various mounting options such as PCB mount, panel mount, or socket mount, offering installation flexibility. Protection Features: Some models may include built-in protection features such as overcurrent protection, overvoltage protection, and thermal shutdown, enhancing the safety and longevity of connected devices. Long Lifespan: With high-quality construction and efficient design, it boasts a long operational lifespan, reducing the need for frequent replacements or maintenance. Compatible with Various Control Signals: It can be controlled by a wide range of input signals, including digital signals from microcontrollers, analog signals, or even mechanical switches, providing versatility in design and integration. Here are some common uses of a Relay DC 5V 7A : Home Automation: It can be used to control lights, fans, or other household appliances remotely using low-voltage signals. Automotive Electronics: In automotive applications, it can control various components such as headlights, wipers, or electric windows. Industrial Control Systems: It’s suitable for controlling machinery, motors, and other equipment in industrial settings. IoT (Internet of Things) Projects: It can be integrated into IoT devices for remote monitoring and control of various devices and systems. Power Supply Control: It can switch high-power loads in power supply circuits, ensuring efficient power distribution. Security Systems: It can be part of security systems to control access gates, alarms, or surveillance cameras. Medical Equipment: It may be used in medical devices for controlling pumps, valves, or actuators. Renewable Energy Systems: In systems like solar panels or wind turbines, relays can be used to control the flow of power to batteries or the grid. Telecommunications: It can be used in telecom equipment for switching between different signal paths or controlling power to various components. Testing and Measurement: Relays can be used in testing setups and measurement equipment to control connections or simulate real-world conditions. 1 x Relay DC 5V 7A SKU: IK-283 Categories: All Products, 5V Relay, Relays Tag: 5V relay Loading...Barcode:
