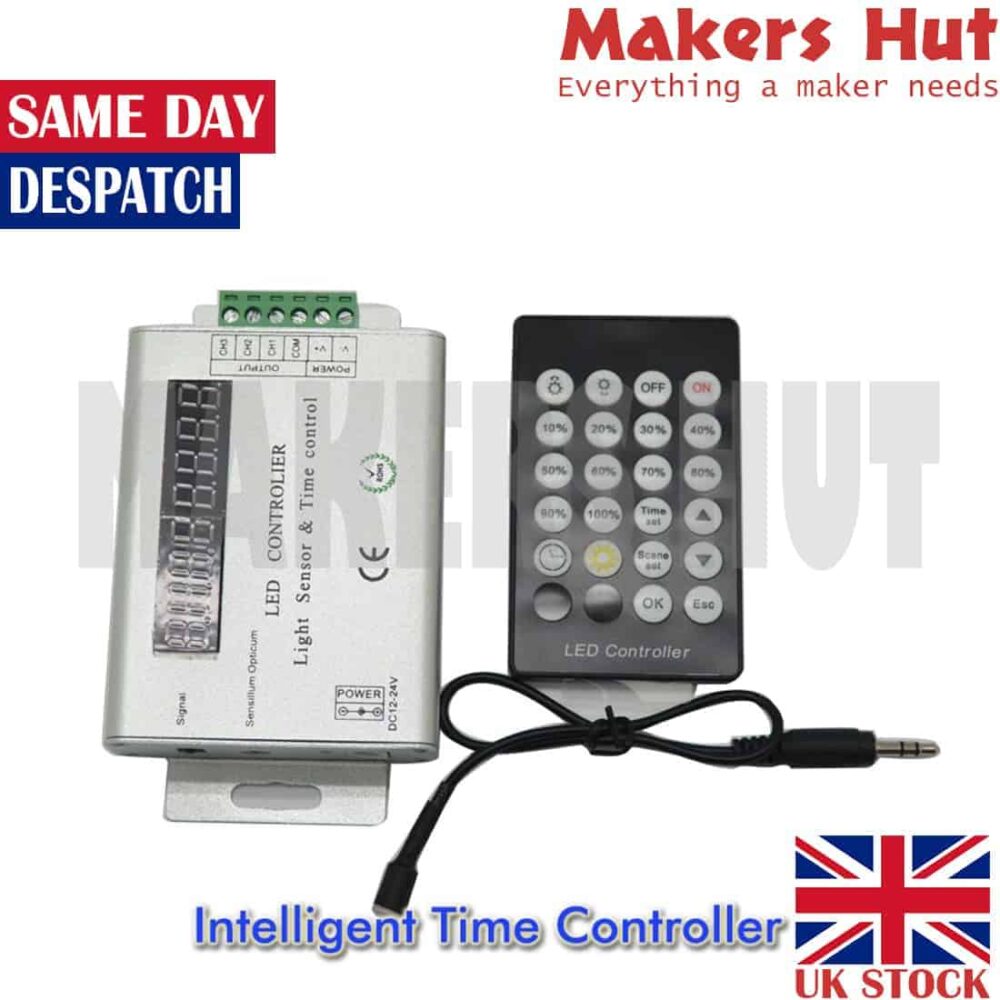

Description: The controller is adopted 8 digital tube to show the modes of time and work. It adopts PWM dimmer electric.It matches the precise clock clip which can control the brightness and darkness of the light according to the time .When present time is same as the predicted time, the light will change as previous brightness. You can set 10 scenes during the 24 hours one day. By optional sensor, the controller can autocatalytically adjust the brightness fo the light according to the brightness and darkness of the environment optical line.The controller can be used for the normal one.The controller works through the infrared remote controller, and operate easily. Technical Parameters: Supply Voltage: DC12~24V Output: 3 circuit Output Current: 4A/ch Controller Size: L122xW71xH25mm Package Size: L135xW80xH55mm Net Weight: 180g Gross Weight: 210g Static Consumption: <0.24W Output Power: 12V-144W; 24V-288W PWM Signal Class: 256 level PWM Signal Frequency: 325HZ Remote Control Distance: >10M Time Deviation: <5 seconds per month LED types: All types 3528(5-20 meter) and 5050(5-10 meter) led strip lights, RGB LED strip single color strip ,Waterproof or Non-Waterproof led strip. Operating instruction When the controller is on, press the brightness hot key on the controller to enter the light adjust mode. When the first number fo the digital tube is 0 that is the controller can change the light according to settled brightness. With power off memory function. When re-connect to the power supply, it will be the statue that you set before cutting the power supply supply automatically. What you will receive: 1 x LED Pixel controller 1 x Remote control 1 x Light sensor
