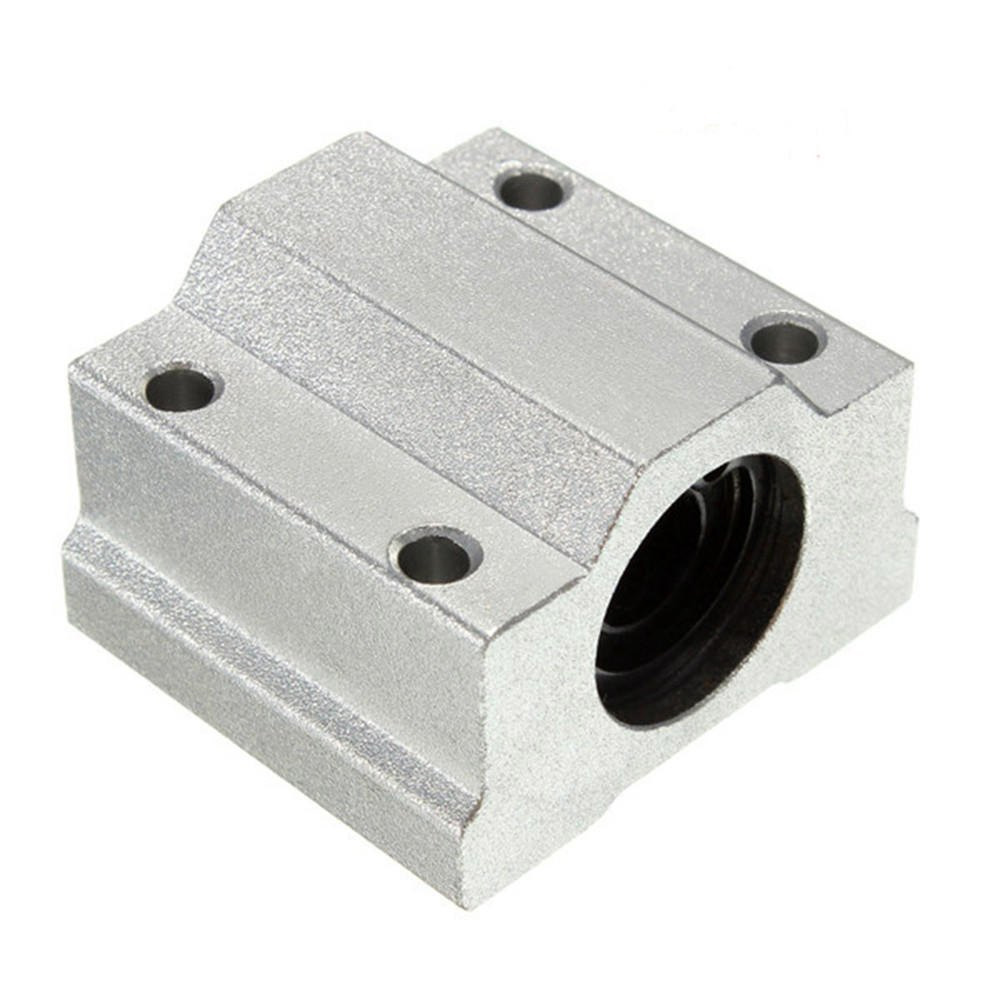

Description: Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want. All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times, CNC projects will have two of these on opposite sides to support a larger platform. Specifications: For 8mm linear railings Dynamic Load rating: 260 N Static Load rating: 400 N Weight: 56 grams Four ball races Shaft Diameter: 8mm h: 11mm E: 17mm W: 34mm L: 30mm F: 22mm G: 18mm T: 6mm B: 24mm C: 18mm K: 5mm S1: M4 S2: 3.4mm I: 8mm What you will receive: 1 x Block Bearing
