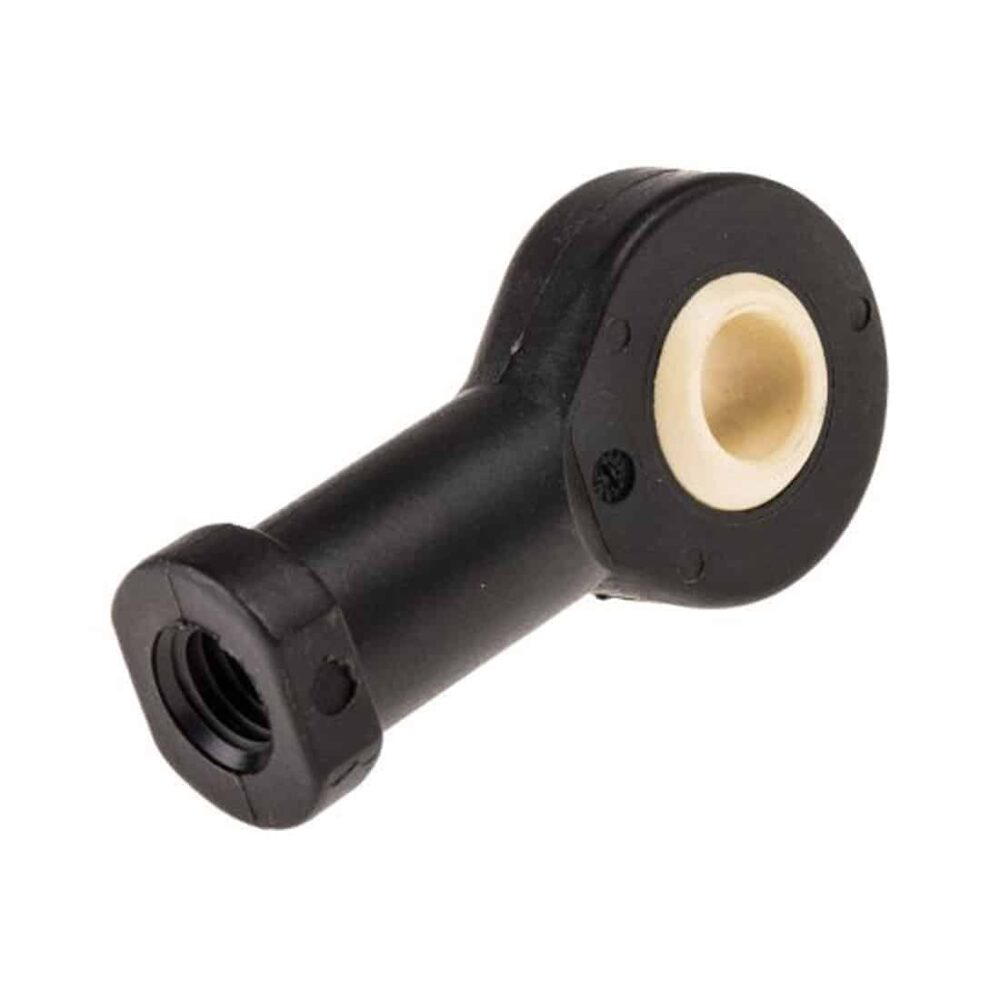

Description: Female Thread Note IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing. Rod End & Spherical – Maintenance Free IGUS® IGUBAL® spherical bearings are self-lubricating, designed to run dry and are maintenance free The bearings are extremely tolerant to dirt and dust – IGUBAL® can be used in abrasive environments 8 to 20mm bore size Low weight (20% of equivalent steel) High rigidity Corrosion and chemically resistant High fatigue strength under changing loads Working temperature range: -30°C to 80°C KBRM-08 Specifications: Connection Size: M8 Female Bore Size: 8mm Static Load Rating: 1050N Overall Length: 48mm Material: Igumid G Connection Thread Size: M8 Connection Thread Standard: Metric Maximum Operating Temperature: 80°C Minimum Operating Temperature: -30°C Connection Gender: Female KBRM-10 Specifications Connection Size: M10 Female Bore Size: 10mm Static Load Rating: 1550N Overall Length: 58mm Material: Igumid G Connection Thread Size: M10 Connection Thread: Standard Metric Maximum Operating Temperature: 80°C Minimum Operating Temperature: -30°C Connection Gender: Female KBRM-12 Specifications Connection Size: M12 Female Bore Size: 12mm Static Load Rating: 1800N Overall Length: 62mm Material: Igumid G Connection Thread Size: M12 Connection Thread: Standard Metric Maximum Operating Temperature: 80°C Minimum Operating Temperature: -30°C Connection Gender: Female What you will receive 1 x Rod end as per selection
