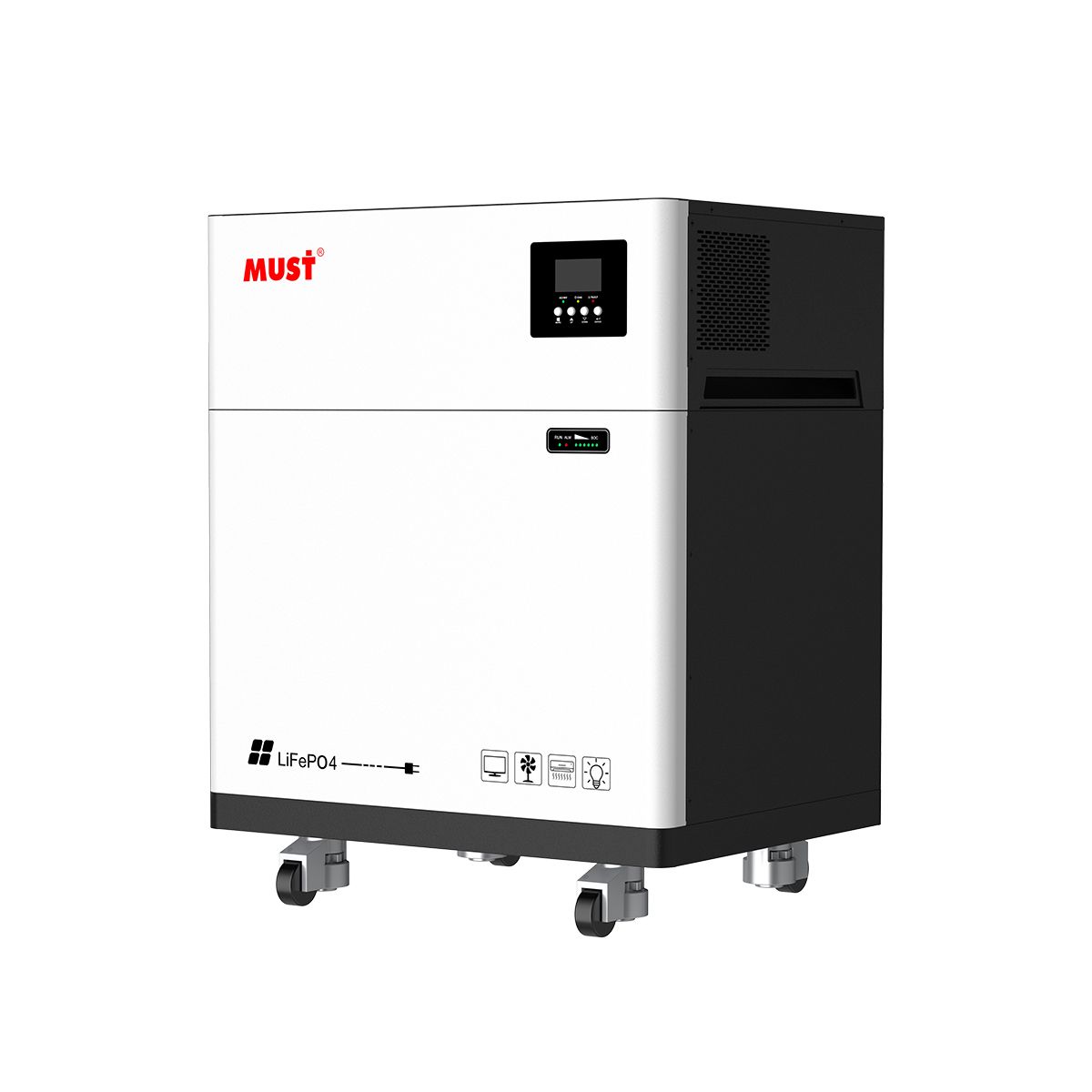

Description Key Features Flexible Split-Phase Output: Designed for true household compatibility. The advanced built-in inverter accepts 220V input and outputs versatile 120V/240V split-phase power. Easily power your 120V lights and TVs while simultaneously running high-surge 240V heavy appliances without needing an external autotransformer. High-Capacity LiFePO4 Storage: Engineered for longevity and safety. The 24V models house a robust 7168Wh battery, while the 48V models provide a massive 14338Wh energy reservoir utilizing premium Lithium Iron Phosphate chemistry. Modular Stackable Architecture: The inverter and battery modules feature a space-saving, stackable design. This allows for a clean, unified tower installation in your garage or utility room while making transport and deployment significantly easier than traditional heavy cabinets. Smart Solar Management: Maximize your energy harvest. The integrated 80A MPPT charge controller supports up to 2500W (24V models) or 5000W (48V models) of PV input. The intuitive LCD allows for easy configuration of utility/solar priorities and charging currents. Generator Auto-Start Ready: Perfect for long-term off-grid living. The system is fully compatible with fuel generators and includes an automatic generator start interface to ensure your batteries are never completely depleted during extended periods without sun or grid power. Comprehensive Multi-Level Protection: A built-in intelligent Battery Management System (BMS) safeguards the unit against over-discharge, overload, over-temperature, and short-circuits, ensuring safe operation at all times. Applications Complete Home Battery Backup: Provides rapid 10ms transfer to battery power during grid failures, ensuring both your 120V essential circuits and 240V critical appliances remain fully operational. Off-Grid & Remote Properties: The perfect standalone power hub for off-grid cabins, farms, and workshops requiring robust split-phase power, easily integrating with solar panels and backup generators. Core Specifications Table Model HBP33-2024 TLV HBP33-3024 TLV HBP33-5048 TLV HBP33-6048 TLV System Design Stackable All-in-One ESS Stackable All-in-One ESS Stackable All-in-One ESS Stackable All-in-One ESS Rated AC Output Power 2000 W 3000 W 5000 W 6000 W Output Waveform Pure Sine Wave Pure Sine Wave Pure Sine Wave Pure Sine Wave Battery Energy (Capacity) 7168 Wh 7168 Wh 14338 Wh 14338 Wh Nominal System Voltage 24V DC 24V DC 48V DC 48V DC Battery Specification 25.6V 280Ah (LiFePO4) 25.6V 280Ah (LiFePO4) 51.2V 280Ah (LiFePO4) 51.2V 280Ah (LiFePO4) Split-Phase Output (L-N) 100V / 110V / 120VAC 100V / 110V / 120VAC 100V / 110V / 120VAC 100V / 110V / 120VAC Split-Phase Output (L-L) 200V / 220V / 240VAC 200V / 220V / 240VAC 200V / 220V / 240VAC 200V / 220V / 240VAC AC Input Voltage 200/220/240VAC (150~265V) 200/220/240VAC (150~265V) 200/220/240VAC (150~265V) 200/220/240VAC (150~265V) AC Output Connections Terminal & Socket (10A max) Terminal & Socket (10A max) Terminal & Socket (10A max) Terminal & Socket (10A max) Max PV Array Power 2500 W 2500 W 5000 W 5000 W Max PV Open Circuit Voltage 245V DC 245V DC 245V DC 245V DC PV MPPT Voltage Range 30 ~ 230V DC 30 ~ 230V DC 64 ~ 230V DC 64 ~ 230V DC Max PV Charge Current 80 A 80 A 80 A 80 A Max AC Charge Current 30 A 40 A 35 A 40 A UPS Transfer Time 10ms (max) 10ms (max) 10ms (max) 10ms (max) Dimensions (W*H*D) mm 600 * 617 * 470 600 * 617 * 470 600 * 754 * 470 600 * 754 * 470 Warranty Inverter: 2 Yrs / Battery: 5 Yrs Inverter: 2 Yrs / Battery: 5 Yrs Inverter: 2 Yrs / Battery: 5 Yrs Inverter: 2 Yrs / Battery: 5 Yrs
