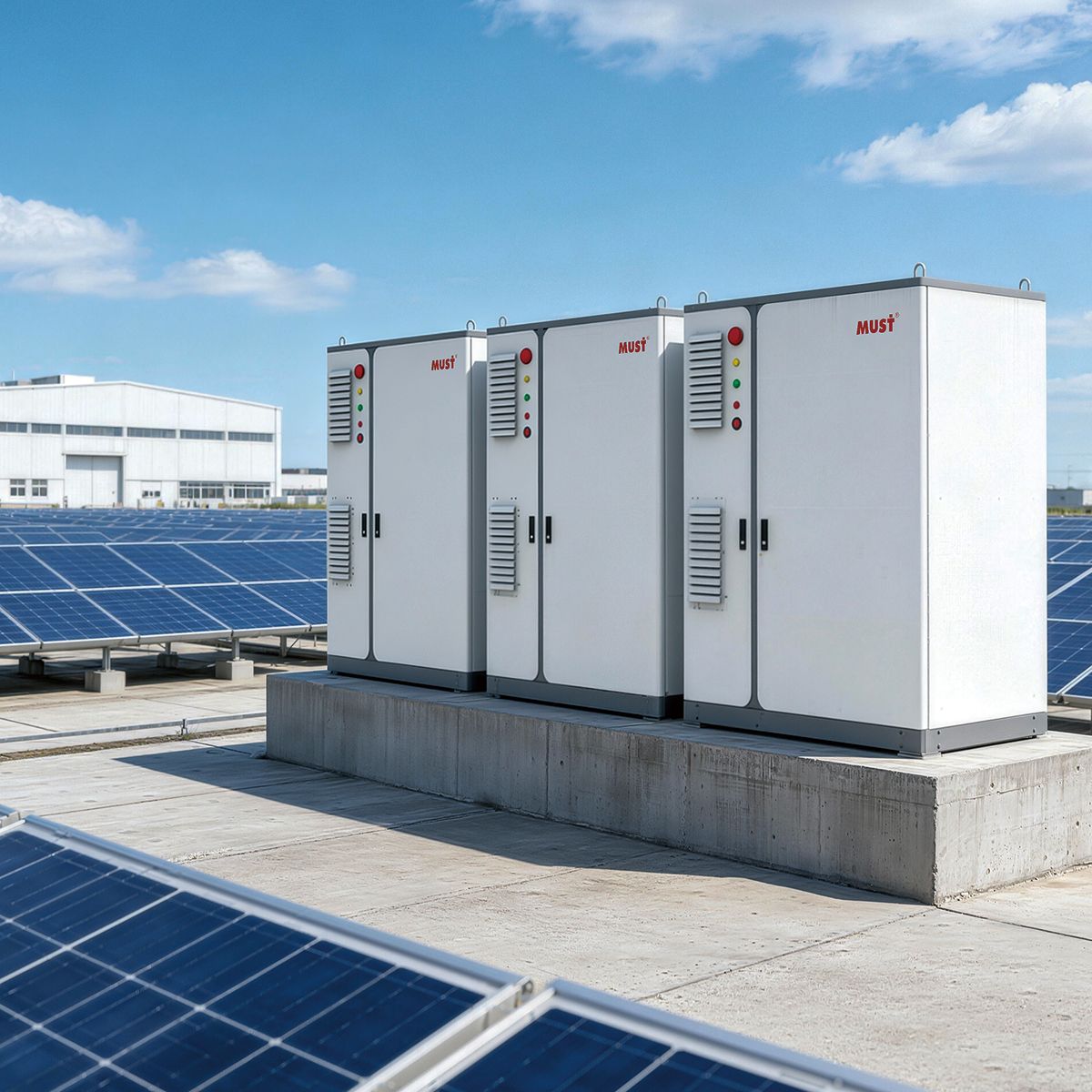

Description Key Features Fully Integrated All-in-One Design: Eliminates installation headaches by integrating the LiFePO4 battery pack, Power Conversion System (PCS), and Energy Management System (EMS) into one compact, ready-to-deploy cabinet. Precision Liquid Cooling System: Advanced thermal management maintains cell temperature differences within a tight 3–5°C margin. This ensures stable high-power performance, maximizes energy efficiency, and guarantees a 10-year calendar life. High-Capacity Powerhouse: Utilizing high-density 280Ah and 314Ah LiFePO4 cells, a single cabinet provides up to 261kWh of energy and 125kW of output power, perfect for heavy industrial and commercial loads. Massive 2.4MWh Scalability: Start with a single cabinet and scale your energy storage effortlessly. The modular architecture supports parallel expansion up to a massive 2.4 MWh to meet growing commercial energy needs. Hybrid On/Off-Grid Operation: Delivers seamless transitions (≤20ms) between grid-tied and off-grid modes for uninterrupted power. It can also be equipped with an optional MPPT controller for smooth and direct solar integration. Industrial-Grade Safety: Housed in an IP54 fire and explosion-proof enclosure, the system features a built-in Aerosol Safety System and an intelligent BMS for precise monitoring, ensuring ultimate protection against thermal events. Applications Commercial Peak Shaving: Perfect for factories, shopping malls, and large facilities to avoid crippling peak-demand utility charges and lower overall energy bills. Hybrid Microgrids: Integrates seamlessly with solar arrays and diesel generators to power remote industrial operations, campuses, or mining sites. EV Charging Hubs: Provides the massive energy buffer needed for multi-bay DC fast-charging stations without overloading the local grid infrastructure. Core Specifications Table Model ESG-E215 ESG-E233 ESG-E261 Rate Power 105 KW 125 KW 125 KW Battery Energy 215 kWh 233 kWh 261 kWh Nominal Capacity (Cell) 280Ah (LFP) 280Ah (LFP) 314Ah (LFP) Battery Configuration 1P240S 1P260S 1P260S Nominal System Voltage 768V 832V 832V AC Output 400V, 3L N PE, 50/60Hz 400V, 3L N PE, 50/60Hz 400V, 3L N PE, 50/60Hz Max Discharging Current 140A 140A 140A Transfer Time ≤20ms ≤20ms ≤20ms Cooling Method Liquid Cooling Liquid Cooling Liquid Cooling Safety System Aerosol Aerosol Aerosol Protection Grade IP54 IP54 IP54 Dimensions (W*H*D) mm 1460 * 2203 * 1400 1460 * 2203 * 1400 1460 * 2203 * 1400 Net Weight ≈ 2500 kg ≈ 2600 kg ≈ 2750 kg Cycle Life 6000 Cycles 6000 Cycles 6000 Cycles
