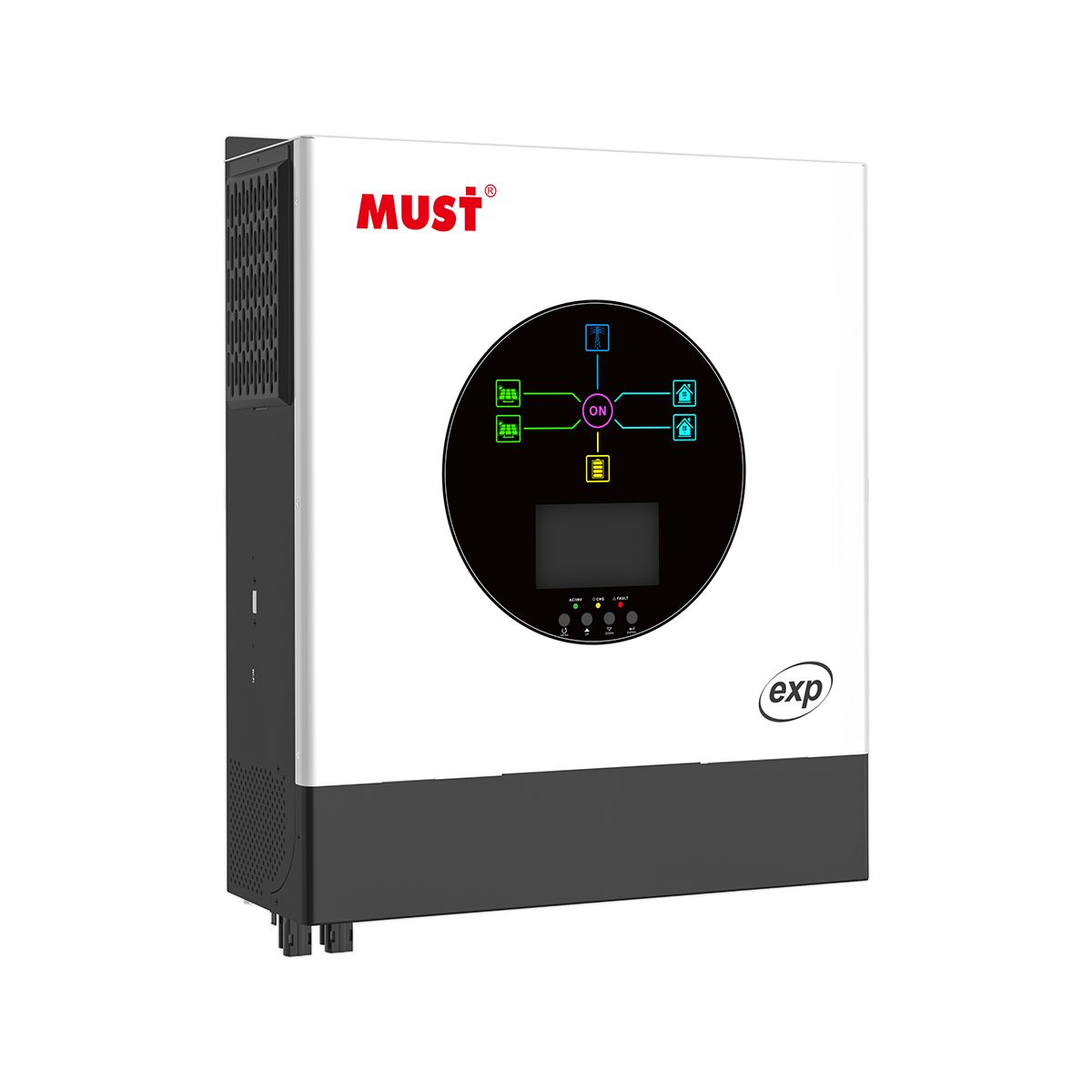

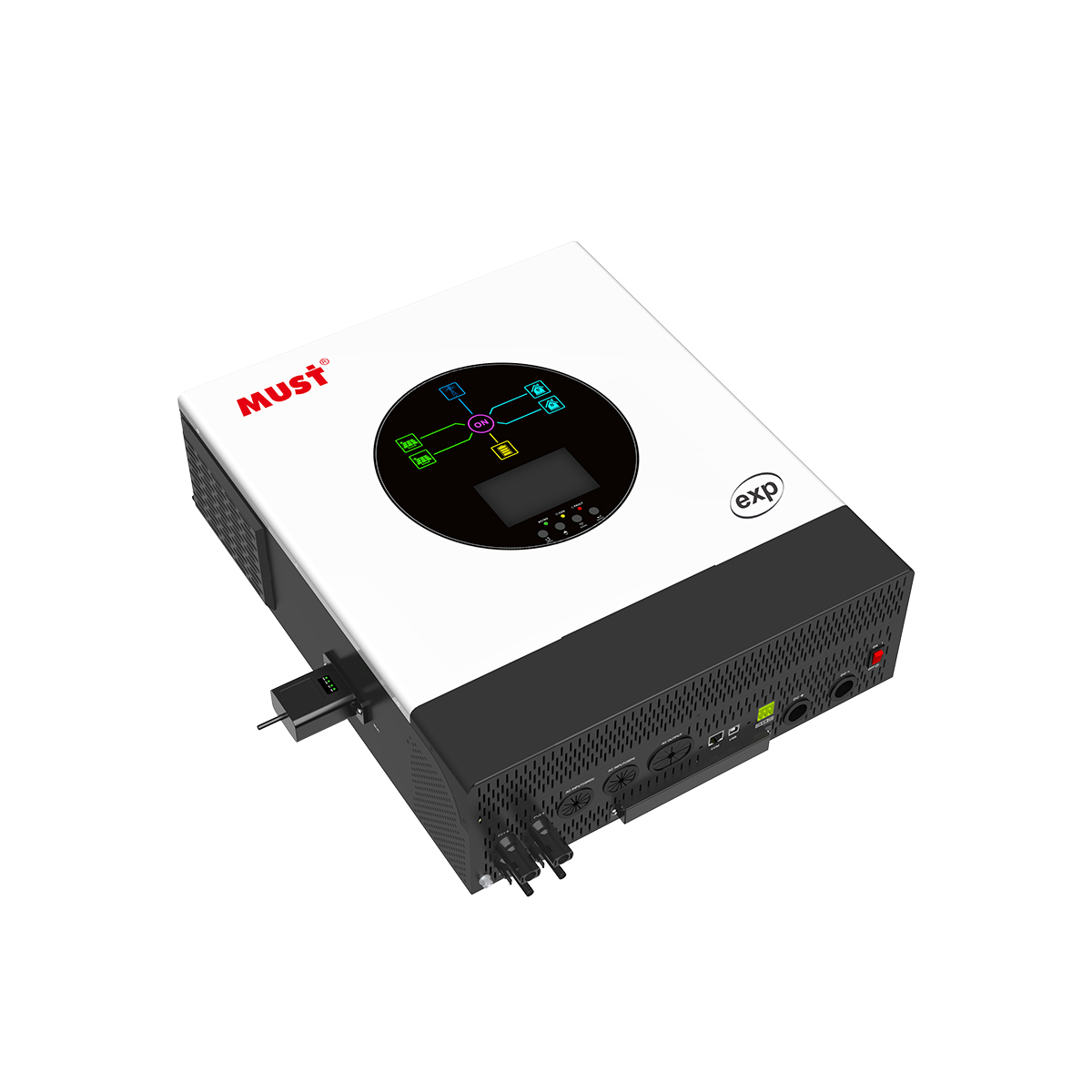

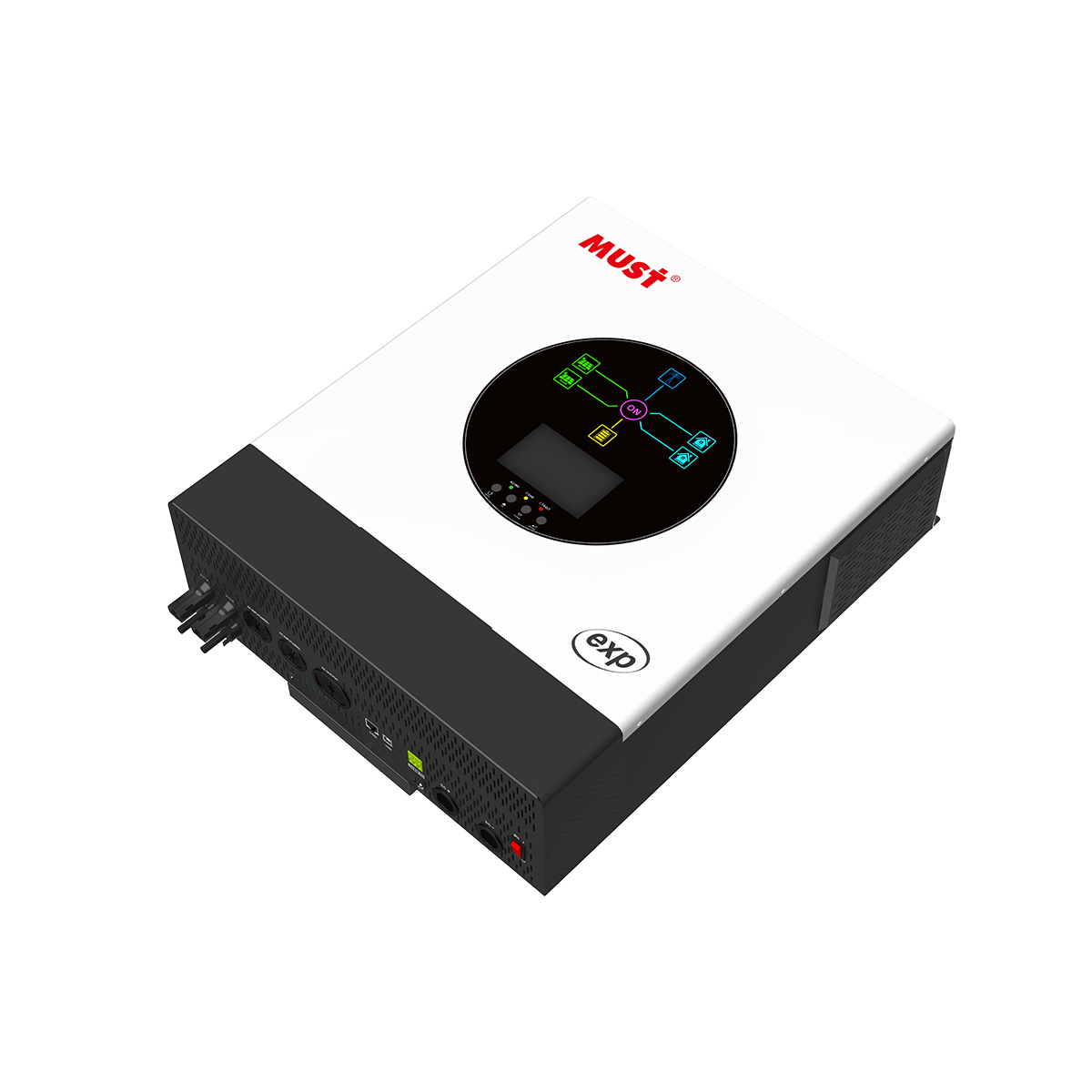

Description Key Features Dual MPPT Trackers: Models from 6.2KW to 12KW feature Dual MPPT inputs, allowing for two independent solar strings. This maximizes energy harvest from different roof orientations and supports higher total PV input power (up to 12000W on the largest model). Smart Dual Output: Equipped with main and secondary AC outputs to automatically manage loads—keeping critical devices running while shedding non-essential loads during low battery conditions. Massive Power & Scalability: Offers single-unit power up to 12KW and supports Parallel operation for up to 6 units, capable of creating a powerful 72KW three-phase or single-phase system. High Voltage PV Input: Supports a Maximum PV Open Circuit Voltage of 500VDC, reducing installation costs by allowing longer series strings of solar panels. User-Friendly Interface: Features a Color LCD display with touch buttons and built-in WiFi/USB/RS485 interfaces for easy monitoring and configuration. Lithium Battery Ready: Advanced BMS communication ensures safe and efficient charging of lithium battery banks, with a wide MPPT voltage range for optimal performance. Applications Large Home Backup: Single units can power entire large households, including air conditioners, pumps, and electric vehicles. Commercial Energy Storage: Ideal for offices, workshops, or farms requiring substantial off-grid power or peak shaving. Complex Roof Layouts: Dual MPPT models are perfect for buildings with east-west facing roof sections. Core Specifications Table Model PV19-4024 EXP PV19-6048 EXP PV19-6248 EXP PV19-8048 EXP PV19-10048 EXP PV19-11048 EXP PV19-12048 EXP Rated Power 4000W 6000W 6200W 8000W 10000W 11000W 12000W Battery Voltage 24VDC 48VDC 48VDC 48VDC 48VDC 48VDC 48VDC Surge Power 8000W 12000W 12400W 16000W 20000W 22000W 24000W Max PV Voltage 500VDC 500VDC 500VDC 500VDC 500VDC 500VDC 500VDC MPPT Trackers Single Single Dual (2) Dual (2) Dual (2) Dual (2) Dual (2) Max PV Power 5000W 6000W 8000W (4K*2) 8000W (4K*2) 10000W (5K*2) 11000W (5.5K*2) 12000W (6K*2) MPPT Range 90~430V 120~430V 90~450V 90~450V 90~450V 90~450V 90~450V Max Solar Charge 100A 120A 120A 120A 150A 150A 150A Max AC Charge 80A 100A 100A 120A 150A 150A 150A Dimensions (mm) 322*486*134 309*505*147 425*455*147 425*527*145 425*527*145 425*527*145 425*527*145 Net Weight 9.5 kg 12.5 kg 13.0 kg 18.0 kg 18.0 kg 18.1 kg 18.1 kg
