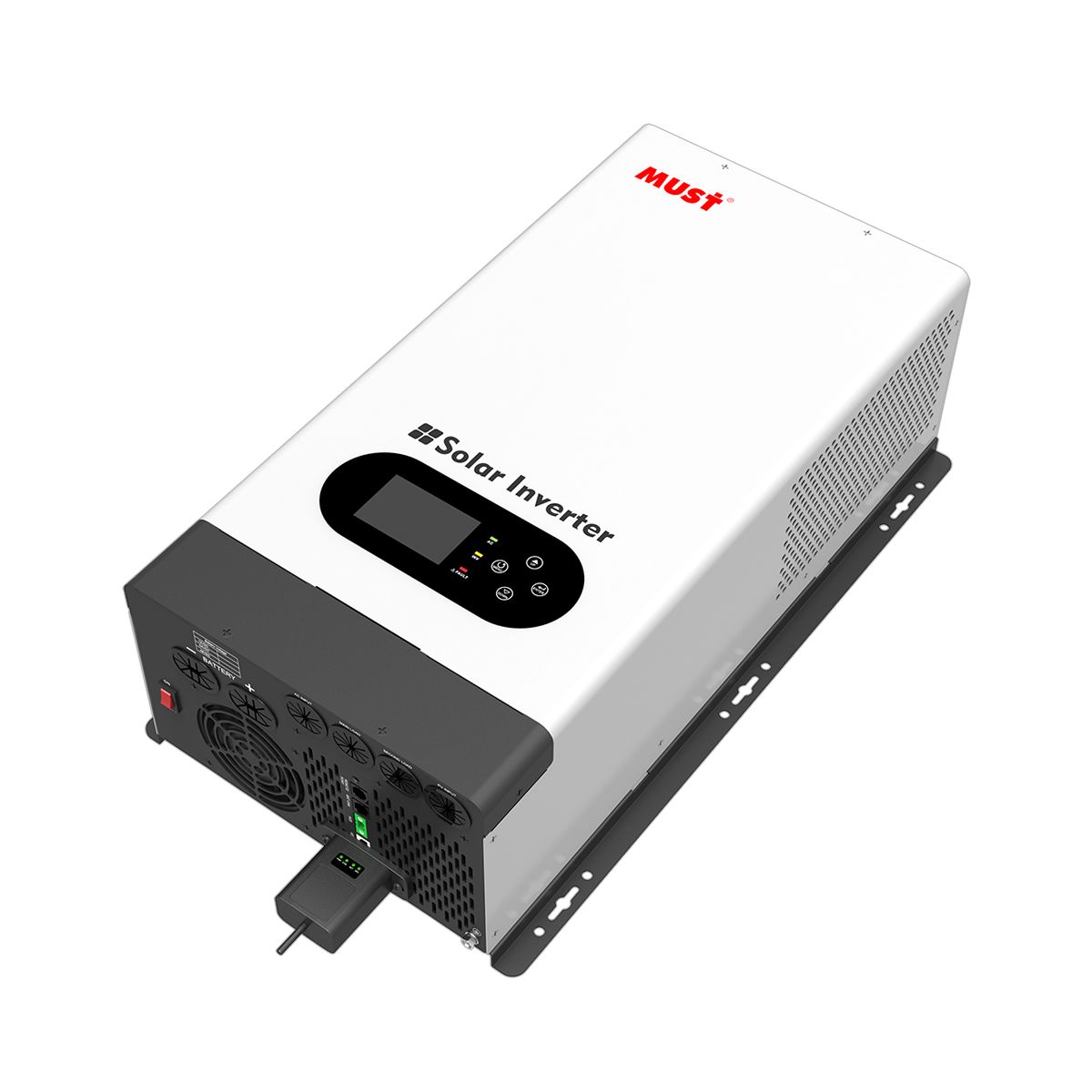

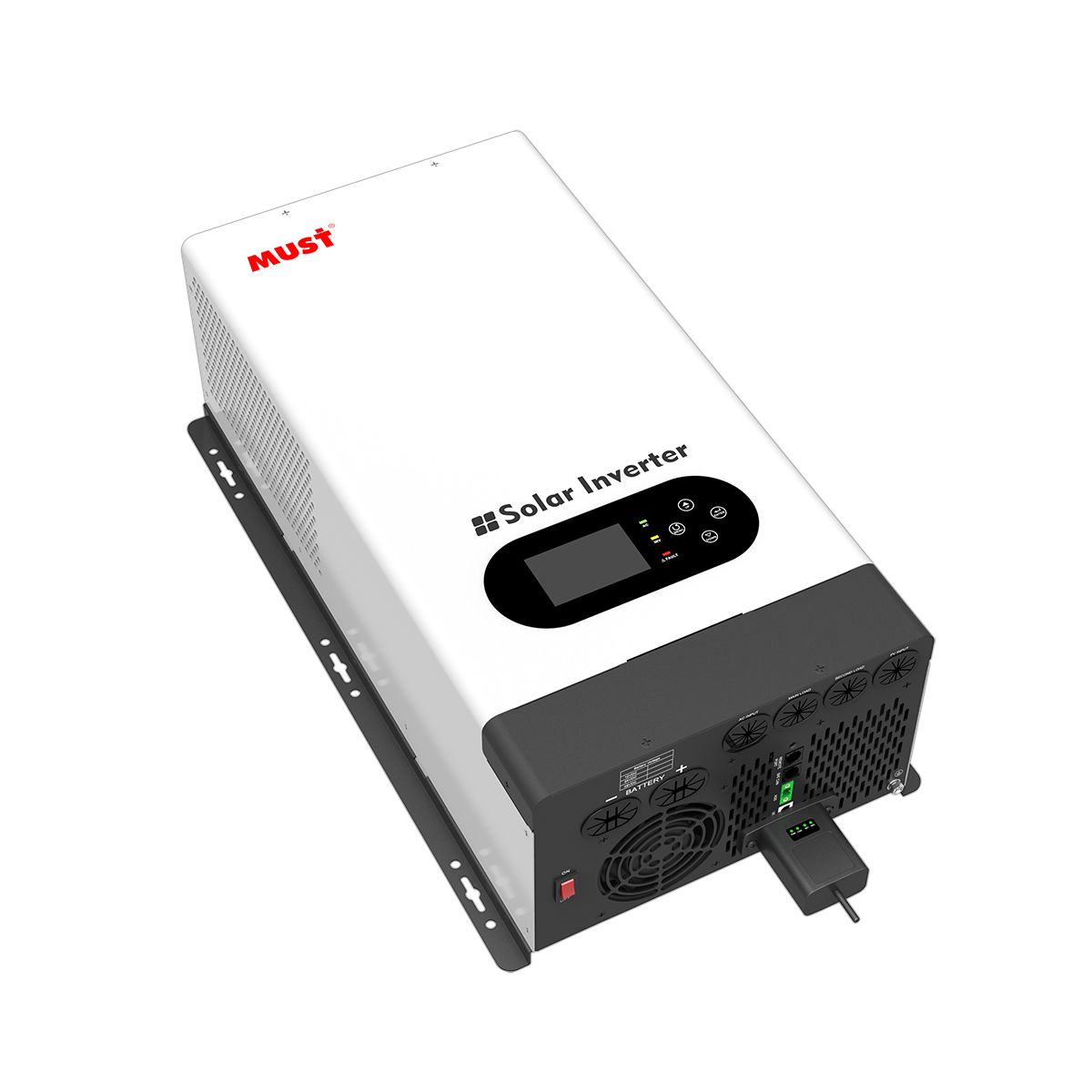

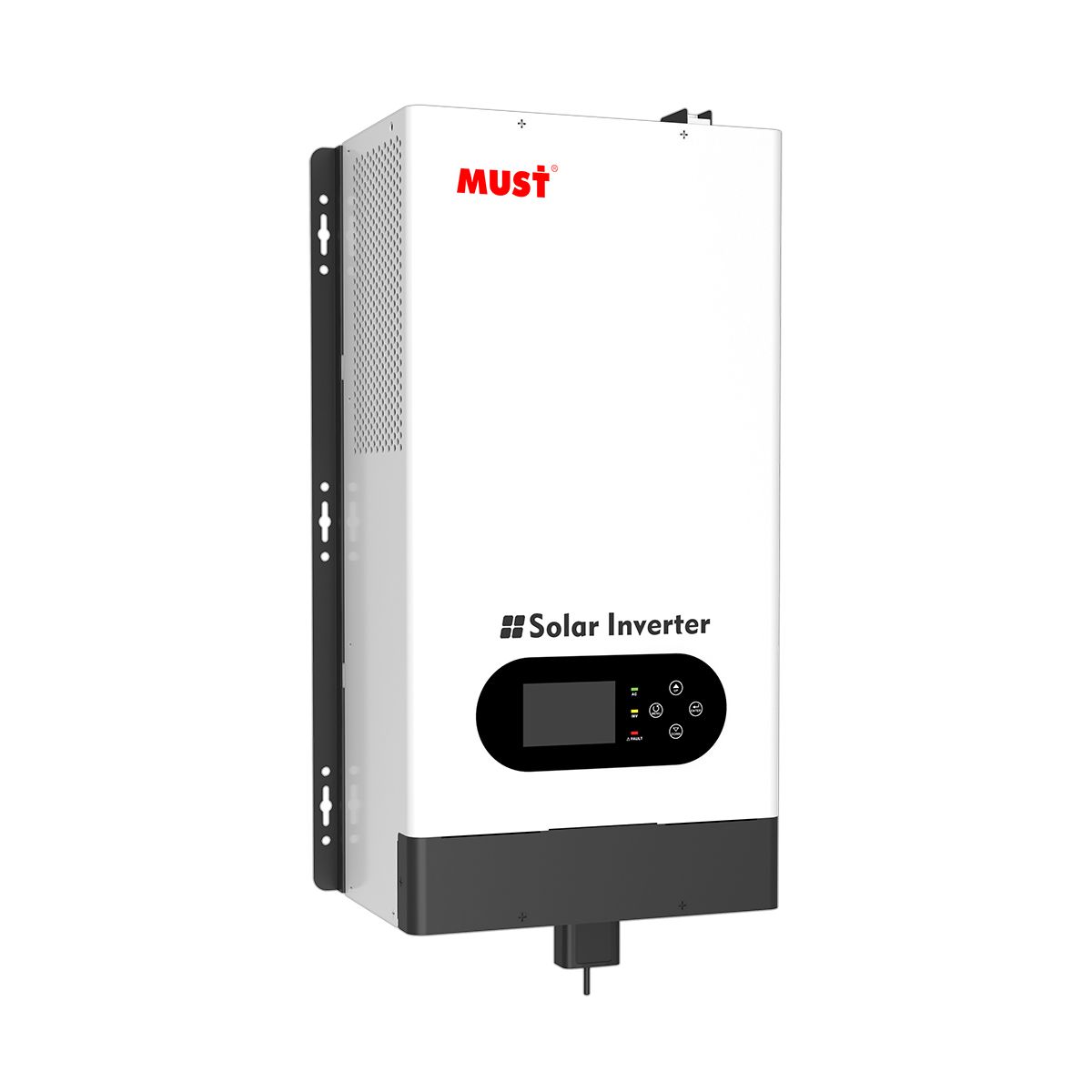

Description Key Features Multiple Voltage Options: Available in 12V, 24V, and 48V battery configurations depending on the power model, allowing users to match the inverter perfectly to their battery bank size. Smart Dual AC Output: Equipped with main and secondary outputs to intelligently manage loads. You can configure non-critical loads to disconnect at specific battery voltages, ensuring your essential appliances stay powered longer. Heavy Duty Low Frequency Design: The transformer-based architecture provides superior isolation and shock resistance, capable of handling extreme inrush currents from air conditioners and power tools. High-Efficiency 80A MPPT: Built-in 80A MPPT controller maximizes solar harvest. Note that 24V/48V models support high-voltage PV input (up to 245VDC), while 12V models are optimized for lower voltage arrays (MPPT range 15~95VDC). 120V Output & 3x Surge: Delivers stable 110V/115V/120VAC output with a peak surge rating of up to 18,000VA (on the 6KW model). Wide Battery Compatibility: Fully supports Lead-Acid and Lithium batteries with BMS communication (CAN port) for safe and accurate charging. Applications Heavy Load Backup: Perfect for running well pumps, large refrigerators, and freezers in off-grid homes. Smart Energy Management: Use the Dual Output feature to automatically shed heavy loads like water heaters when battery is low. RV & Mobile Power: The 12V/24V models (1KW-3KW) are perfect for mobile living, while 48V models (3KW-6KW) suit stationary home systems. Core Specifications Table (Models grouped by power rating. Values separated by “/” indicate parameters for the different voltage versions respectively.) Rated Power 1000W 2000W 3000W 4000W 5000W 6000W Model Name PV29-1012/1024 LHP PV29-2012/2024 LHP PV29-3024/3048 LHP PV29-4024/4048 LHP PV29-5048 LHP PV29-6048 LHP Battery Voltage 12V / 24V 12V / 24V 24V / 48V 24V / 48V 48V 48V Surge Power 3000VA 6000VA 9000VA 12000VA 15000VA 18000VA MPPT Voltage Range 15~95V / 30~230V 15~95V / 30~230V 30~230V / 60~230V 30~230V / 60~230V 60~230V 60~230V Max PV Voltage (VOC) 245VDC* 245VDC 245VDC 245VDC 245VDC 245VDC Max PV Power 1250W / 2500W 1250W / 2500W 2500W / 5000W 2500W / 5000W 5000W 5000W Max Solar Charge 80A 80A 80A 80A 80A 80A Max AC Charge 30A / 20A 60A / 30A 40A / 20A 60A / 30A 35A 40A Dimensions (mm) 309*460*196 309*460*196 309*460*196 309*545*200 309*545*200 309*545*200 Note: 1.5KW Model (PV29-1512/1524 LHP) is also available with 12V/24V options, 4500VA surge, and similar specs to the 1KW/2KW models.
