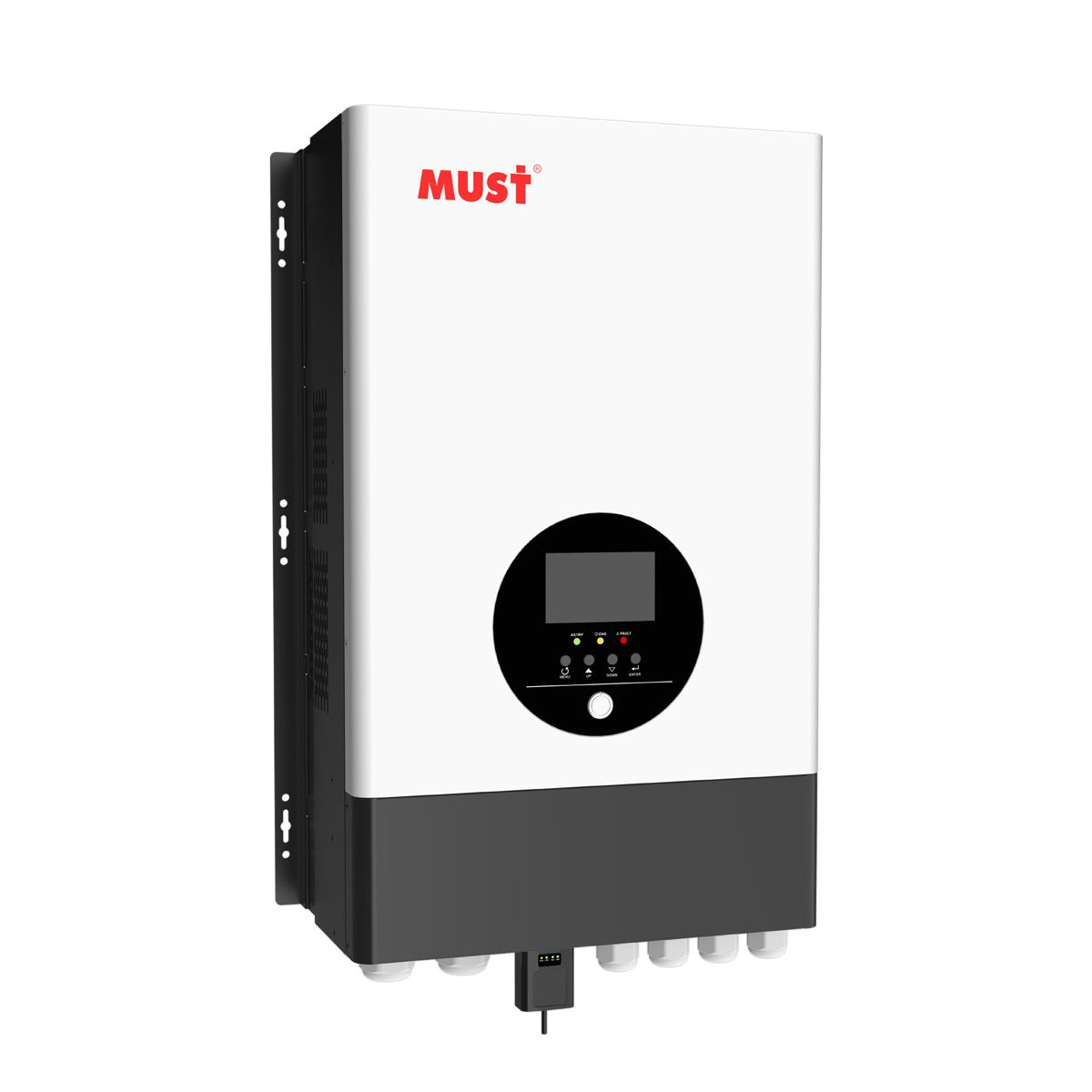

Description Key Features Split Phase Output: Capable of delivering 110V/120V for standard appliances and 220V/240V for heavy-duty equipment, providing flexible power options for diverse regional standards (North America/Latin America). Industrial Low Frequency Design: The heavy-duty transformer architecture ensures robust performance and isolates the battery from the load, offering superior protection against voltage spikes and surges. Massive 200A Solar Charging: Equipped with a high-capacity 200A MPPT controller that supports up to 10,000W of solar input, maximizing energy harvest to keep large 48V battery banks charged. Extreme Surge Capability: With a 300% surge rating (up to 36KW on the 12KW model), it effortlessly starts demanding motor loads (4HP-6HP) that would overwhelm high-frequency inverters. Smart Hybrid Charging: Features a powerful high-current AC charger (up to 140A), allowing for rapid battery top-ups from a generator or grid utility. Expandable System: Supports Parallel operation of up to 3 units, allowing users to scale up power capacity for larger energy requirements. Applications North American Off-Grid: Ideal for US/Canada/Mexico homes needing both 120V for lights/plugs and 240V for dryers/pumps. Heavy Motor Loads: Perfect for running well pumps, compressors, and large power tools in remote workshops. Remote Cabins: Provides reliable, generator-friendly power for locations far from the utility grid. Core Specifications Table Model PV39-8048 TLV PV39-10048 TLV PV39-12048 TLV Technology Low Frequency (Transformer) Low Frequency (Transformer) Low Frequency (Transformer) Rated Power 8000W 10000W 12000W System Voltage 48VDC 48VDC 48VDC Output Voltage 100/110/120/220/240 VAC 100/110/120/220/240 VAC 100/110/120/220/240 VAC Surge Power 24000VA 30000VA 36000VA Motor Capability 4HP 5HP 6HP Max PV Voltage 250VDC 250VDC 250VDC MPPT Voltage Range 64~235VDC 64~235VDC 64~235VDC Max PV Power 10000W 10000W 10000W Max Solar Charge 200A 200A 200A Max AC Charge 100A 120A 140A Machine Dim (mm) 439*661*233 439*661*233 439*661*233 Package Dim (mm) 782*315*521 782*315*521 782*315*521 Net Weight 55 kg 62 kg 69 kg Gross Weight 73 kg 80 kg 87 kg
