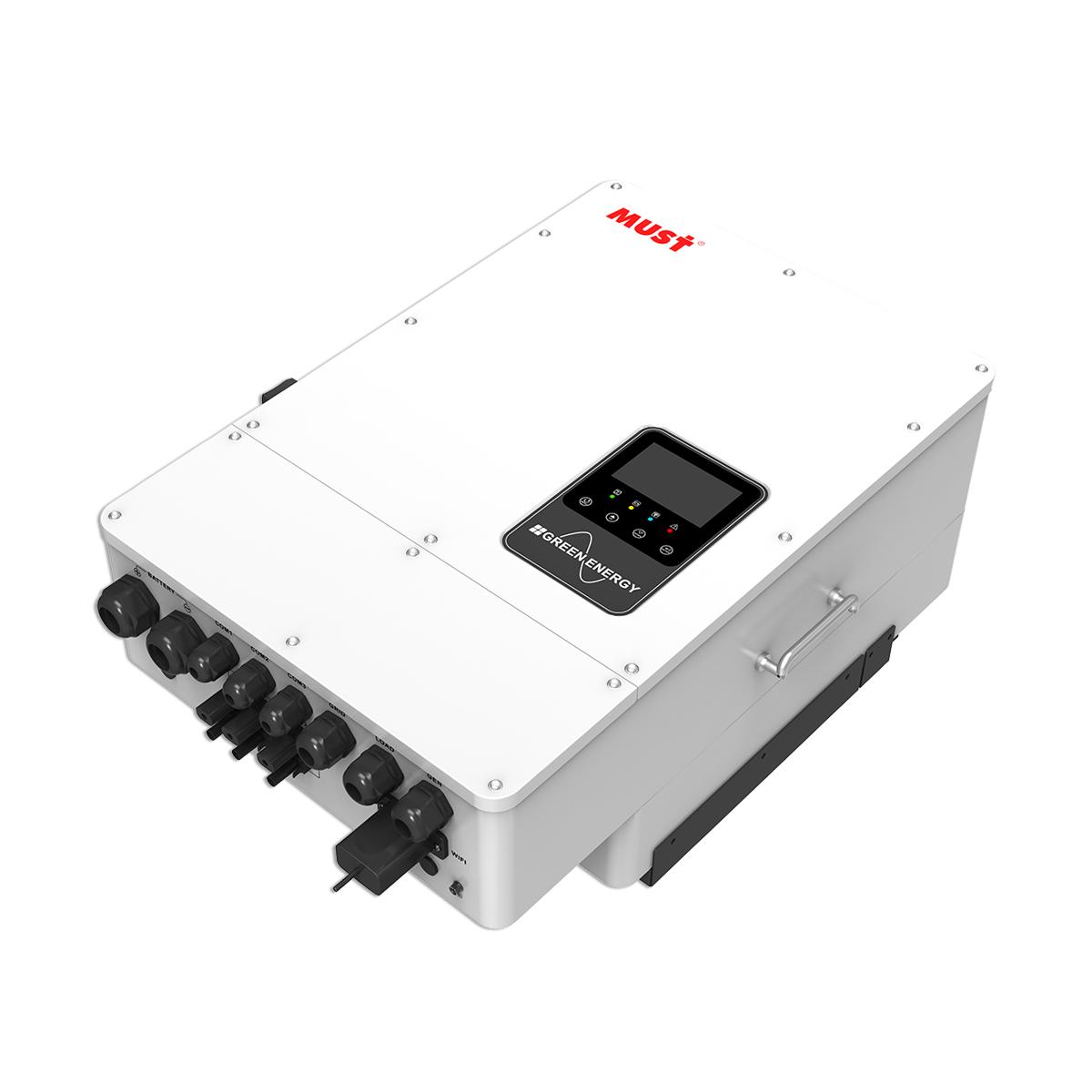

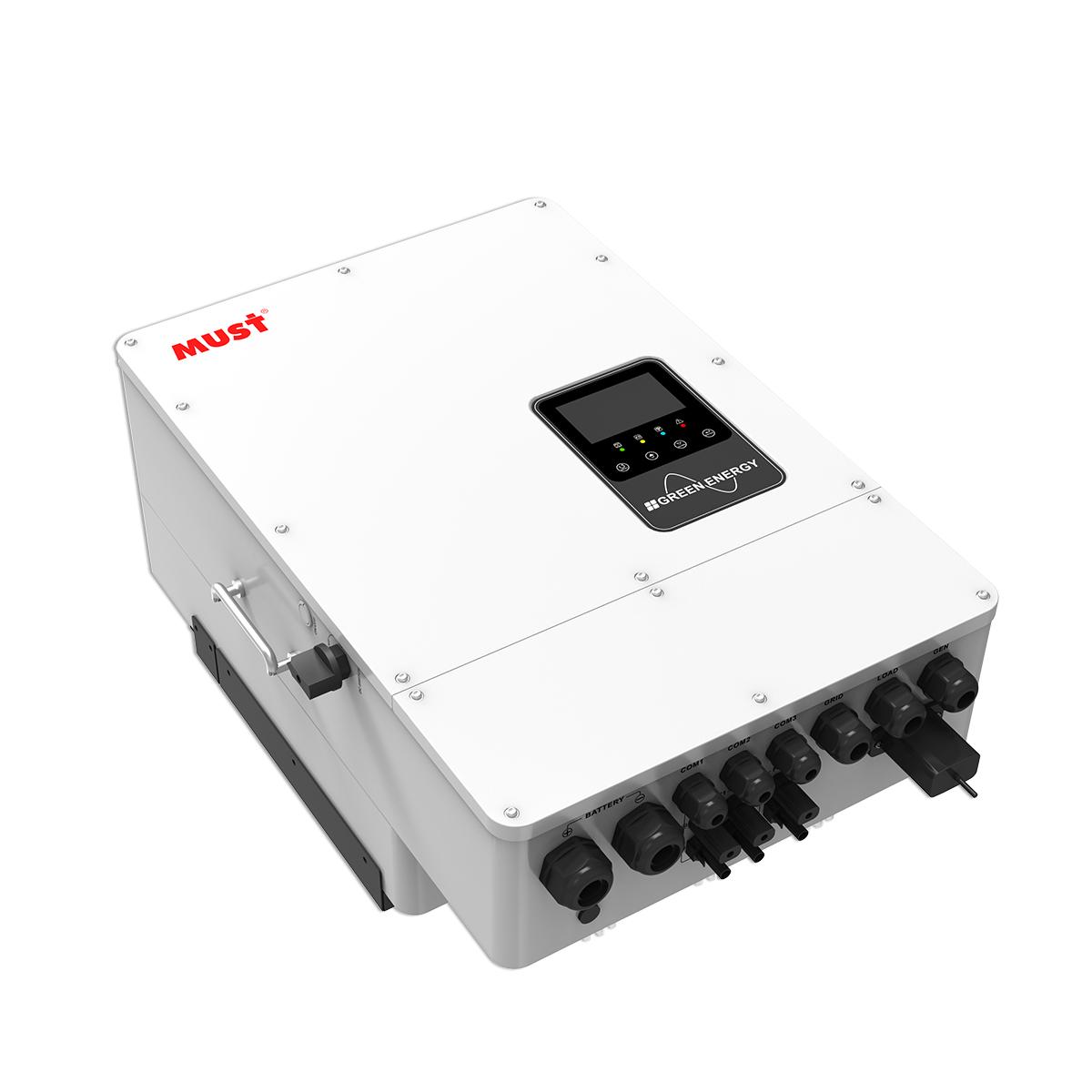

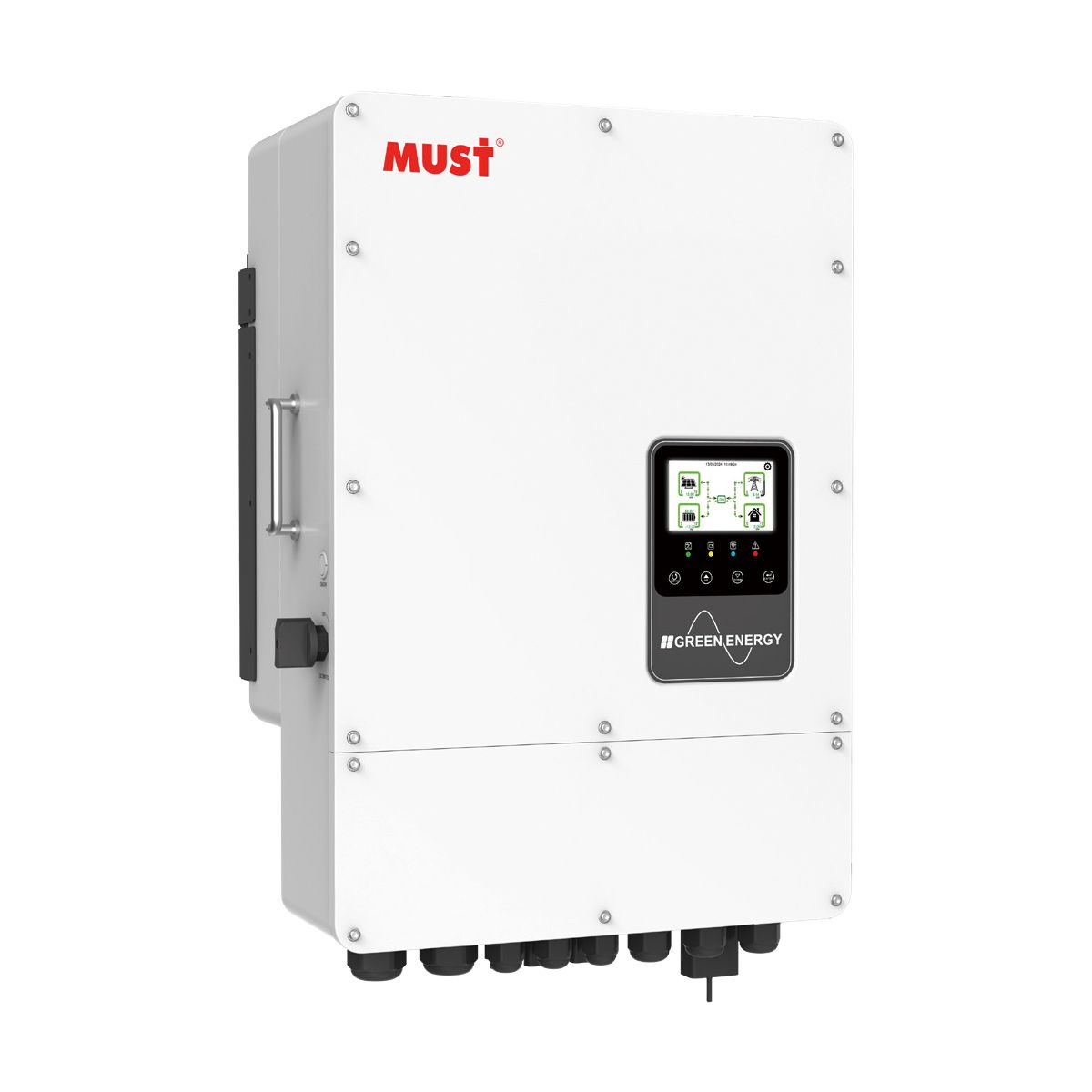

Description Key Features Three Phase Power & Unbalanced Load: Delivers true 380VAC/400VAC Three Phase output. Its advanced control capability supports 100% unbalanced loads, allowing each phase to power different appliances independently without system instability. Industry-Leading 320A Charging: The 16KW model boasts a massive 320A Charging/Discharging Current, maximizing energy storage speed from solar arrays or the grid—ideal for large 48V battery banks. Extensive Model Selection: Beyond standard power ratings, this series offers granular options like 6.5KW, 13KW, 14.2KW, and 15KW, giving installers the flexibility to size systems precisely without overpaying for unnecessary capacity. Massive Scalability (16 Units): Supports parallel operation of up to 16 units, allowing for a total system capacity of over 250KW. Perfect for commercial projects or micro-grids. High Voltage PV Input (800V): Supports a Maximum PV Voltage of 800V, allowing for longer solar string configurations (fewer strings, less wiring) and higher efficiency (97.6%). IP66 Outdoor Protection: Built with a fully sealed IP66 enclosure and intelligent cooling, ensuring safe operation in rain, dust, and outdoor conditions. Smart Energy Flexibility: Features 6 programmable time slots for peak shaving and supports AC Coupling to upgrade existing on-grid solar plants. Compatible with Diesel Generators for ultimate backup reliability. Applications Large Villas & Mansions: Provides stable three-phase power for central air conditioning, pool pumps, and elevators. Commercial Buildings: Suitable for small factories or offices wanting to reduce peak demand charges and ensure backup power. Micro-Grid Systems: The parallel capability and generator support make it the heart of independent power systems. Core Specifications Table (Note: The series also includes intermediate models: 6.5KW, 13KW, 14.2KW, and 15KW. Their specifications fall linearly between the standard models listed below. For example, the 13KW model supports 260A charging, and the 15KW model supports 300A charging.) Model PH11-5KL3-EU PH11-8KL3-EU PH11-10KL3-EU PH11-12KL3-EU PH11-16KL3-EU Grid Type Three Phase Three Phase Three Phase Three Phase Three Phase AC Rated Power 5000W 8000W 10000W 12000W 16000W Nominal Voltage 230/400VAC 230/400VAC 230/400VAC 230/400VAC 230/400VAC Battery Voltage 48VDC 48VDC 48VDC 48VDC 48VDC Max PV Voltage 800V 800V 800V 800V 800V MPPT Range 200~650V 200~650V 200~650V 200~650V 200~650V MPPT Trackers 2 2 2 2 2 Max PV Input Power 10000W 16000W 20000W 24000W 32000W Max Charge Current 120A 190A 210A 240A 320A Dimensions (mm) 446*692*260 446*692*260 446*692*260 446*692*260 446*692*260 Net Weight 38 kg 38 kg 38 kg 38 kg 38 kg Protection IP66 IP66 IP66 IP66 IP66
