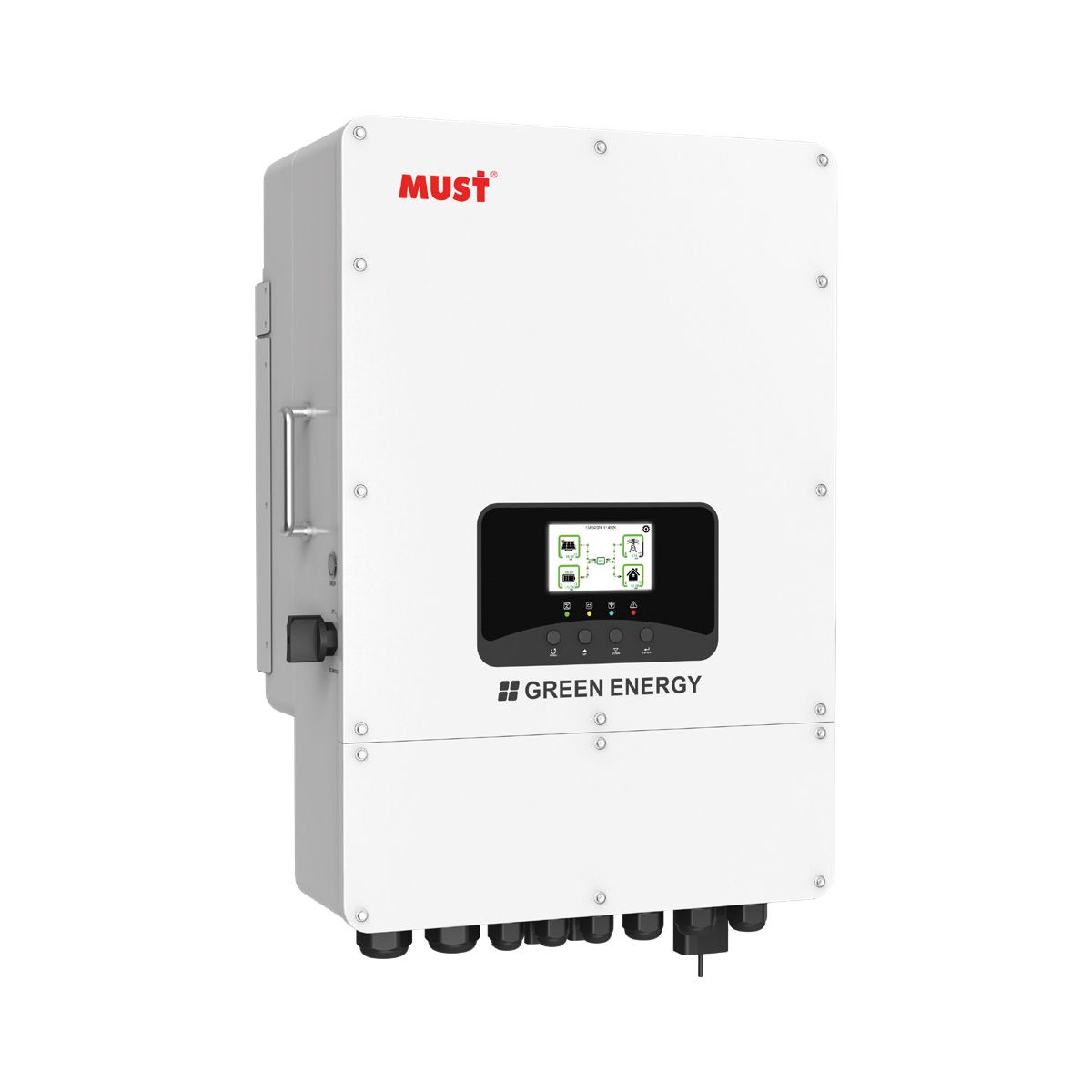

Description Key Features Native Split Phase (120V/240V): Generates standard 120V/240V output directly, perfect for powering both standard 120V household electronics and 240V heavy loads like dryers, water heaters, and well pumps. 100% Unbalanced Load Support: Advanced control allows for 100% unbalanced loading between L1 and L2 phases. You can pull up to 50% of the rated power from a single 120V leg without affecting system stability. Extreme 220A Charging Speed: The 10KW model boasts a massive 220A Charging/Discharging Current, allowing for ultra-fast battery recovery from solar or grid—critical for maximizing time-of-use savings. Massive Scalability (10 Units): Supports parallel operation of up to 10 units, enabling a total system capacity of 100KW. Ideal for large luxury estates or commercial properties requiring higher power capability. Wide MPPT Voltage (600V): Supports a Maximum PV Voltage of 600V with Dual MPPT trackers, allowing for longer solar strings and compatibility with high-power modules. IP66 Outdoor Protection: Features a rugged, fully sealed IP66 enclosure that keeps out dust and water, ensuring reliable operation in harsh outdoor environments. Smart Energy Management: Includes 6 programmable time slots for battery charging/discharging (Peak Shaving) and built-in WiFi for real-time remote monitoring via a dedicated app. Applications North American Homes: The standard 120V/240V output fits perfectly with US main service panels for home backup. Off-Grid Cabins: Reliable power for remote locations needing to run 240V water pumps and power tools. Energy Arbitrage: Use the smart scheduling to charge batteries when rates are low and discharge when rates are high. Core Specifications Table Model PH11-5KL2-US PH11-6KL2-US PH11-8KL2-US PH11-10KL2-US Grid Type Split Phase Split Phase Split Phase Split Phase AC Rated Power 5000W 6000W 8000W 10000W Output Voltage 120V / 240V 120V / 240V 120V / 240V 120V / 240V Battery Voltage 48VDC 48VDC 48VDC 48VDC Max PV Voltage 600V 600V 600V 600V MPPT Trackers 2 2 2 2 Max PV Input Power 10000W 12000W 16000W 20000W Max PV Current 20A / 20A 20A / 20A 36A / 20A 36A / 20A Max Charge Current 120A 150A 190A 220A Dimensions (mm) 446*692*260 446*692*260 446*692*260 446*692*260 Net Weight 38 kg 38 kg 38 kg 38 kg Protection IP66 IP66 IP66 IP66
