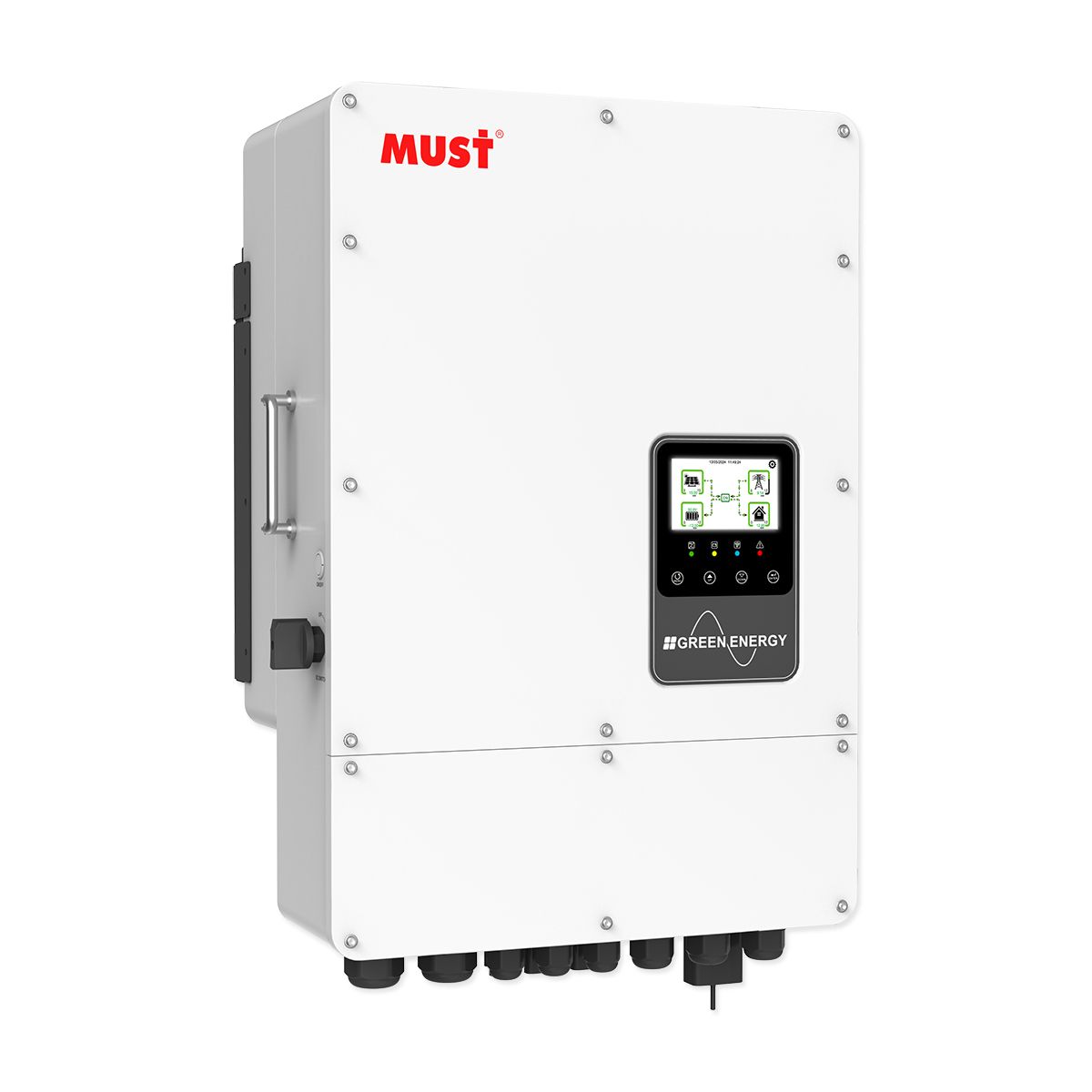

Description Key Features High-Power Single Phase Output: Delivers continuous Single Phase power up to 10KW, making it one of the most powerful single-phase hybrid inverters available, capable of running heavy-duty household appliances (e.g., pumps, large fridges, induction cookers). Super-Fast Charging: Supports a massive 220A Maximum Charging/Discharging Current, allowing for rapid battery replenishment from solar or grid during short windows of availability. Massive Scalability (10 Units): Supports parallel connection of up to 10 units, enabling a maximum capacity of 100KW for larger energy demands (supports Single Phase parallel only). Smart Time-of-Use Control: Features 6 programmable time slots for charging and discharging, allowing users to shift energy usage to cheaper tariff periods (Peak Shaving) effectively. Robust IP66 Protection: Designed with a sealed IP66 enclosure and intelligent fan cooling, ensuring durability in harsh outdoor environments (rain, dust, humidity). Flexible Retrofit (AC Couple): Easily integrates with existing grid-tied solar systems via AC Coupling, adding battery storage capabilities without replacing the original inverter. Applications Large Residential Properties: Ideal for larger homes with Single Phase grid connections requiring substantial backup power. Energy Storage Upgrades: Perfect for retrofitting existing solar homes to store energy for night-time use. Outdoor Installations: Can be securely mounted on exterior walls or in exposed areas thanks to its high IP66 weatherproof rating. Core Specifications Table Model PH11-5KL1-EU PH11-6KL1-EU PH11-8KL1-EU PH11-10KL1-EU Grid Type Single Phase Single Phase Single Phase Single Phase AC Rated Power 5000W 6000W 8000W 10000W Nominal Voltage 220/230/240VAC 220/230/240VAC 220/230/240VAC 220/230/240VAC Battery Voltage 48VDC 48VDC 48VDC 48VDC Max PV Voltage 600V 600V 600V 600V MPPT Trackers 2 2 2 2 Max PV Input Power 10000W 12000W 16000W 20000W Max Charge Current 120A 150A 190A 220A Dimensions (mm) 446*692*260 446*692*260 446*692*260 446*692*260 Net Weight 38 kg 38 kg 38 kg 38 kg Protection IP66 IP66 IP66 IP66
