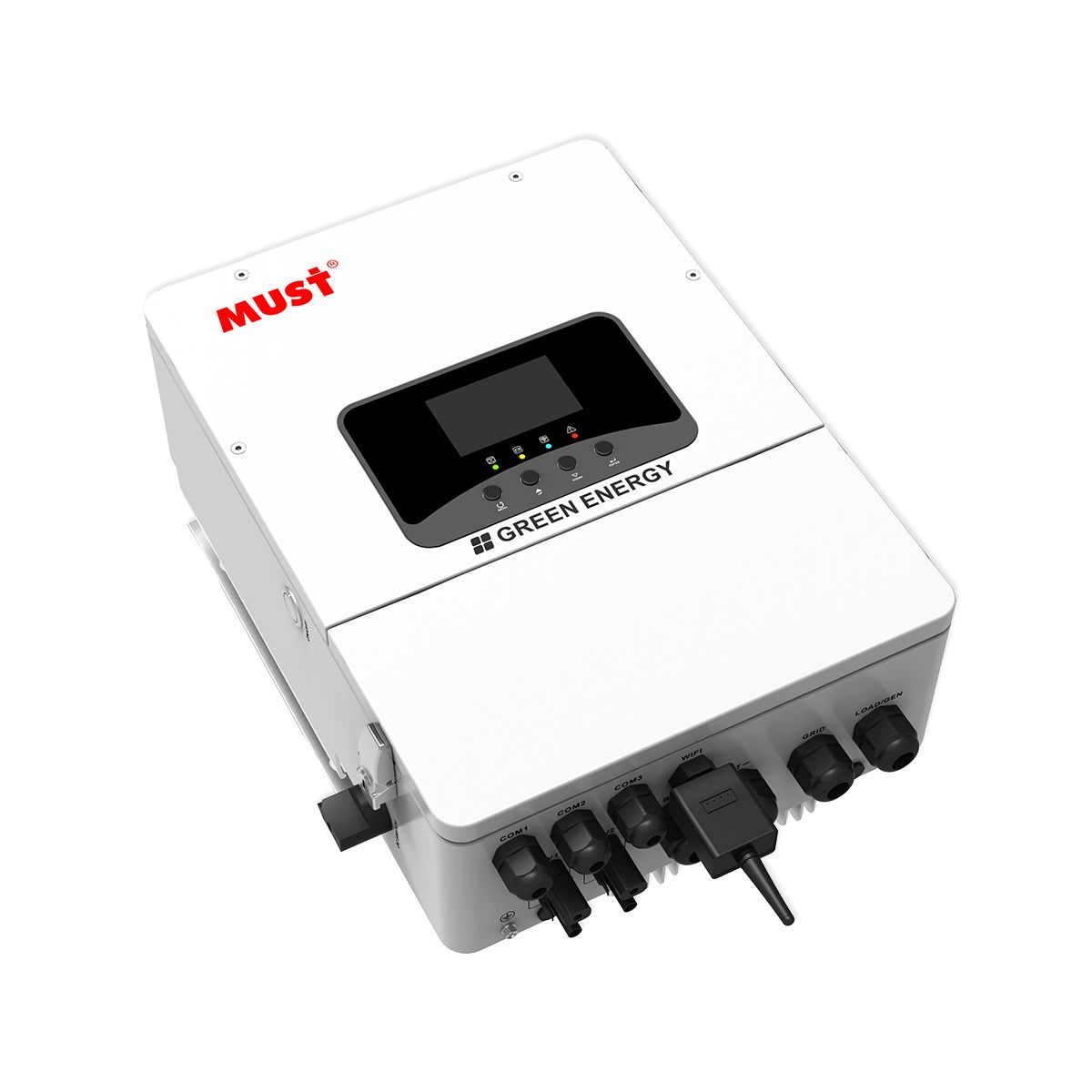

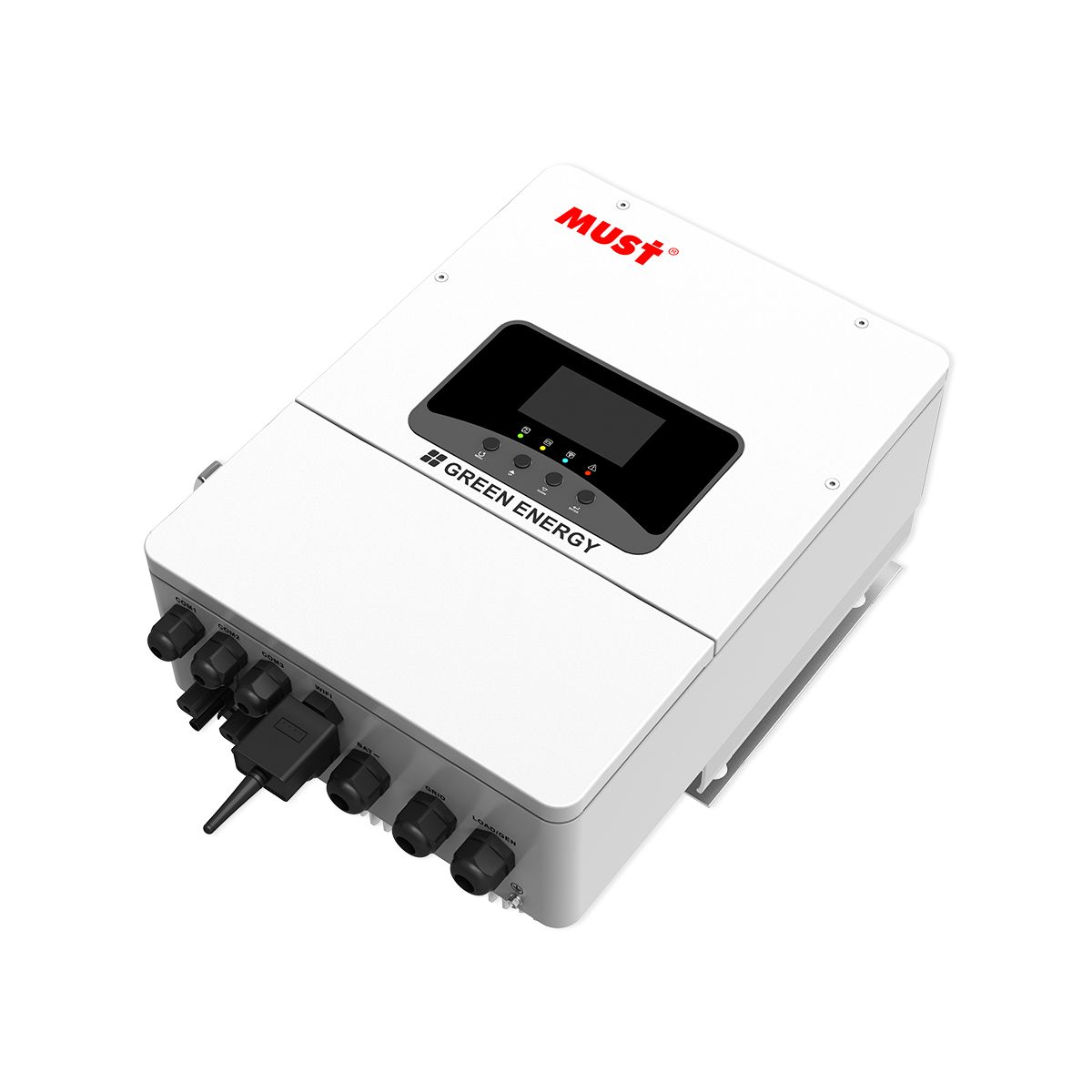

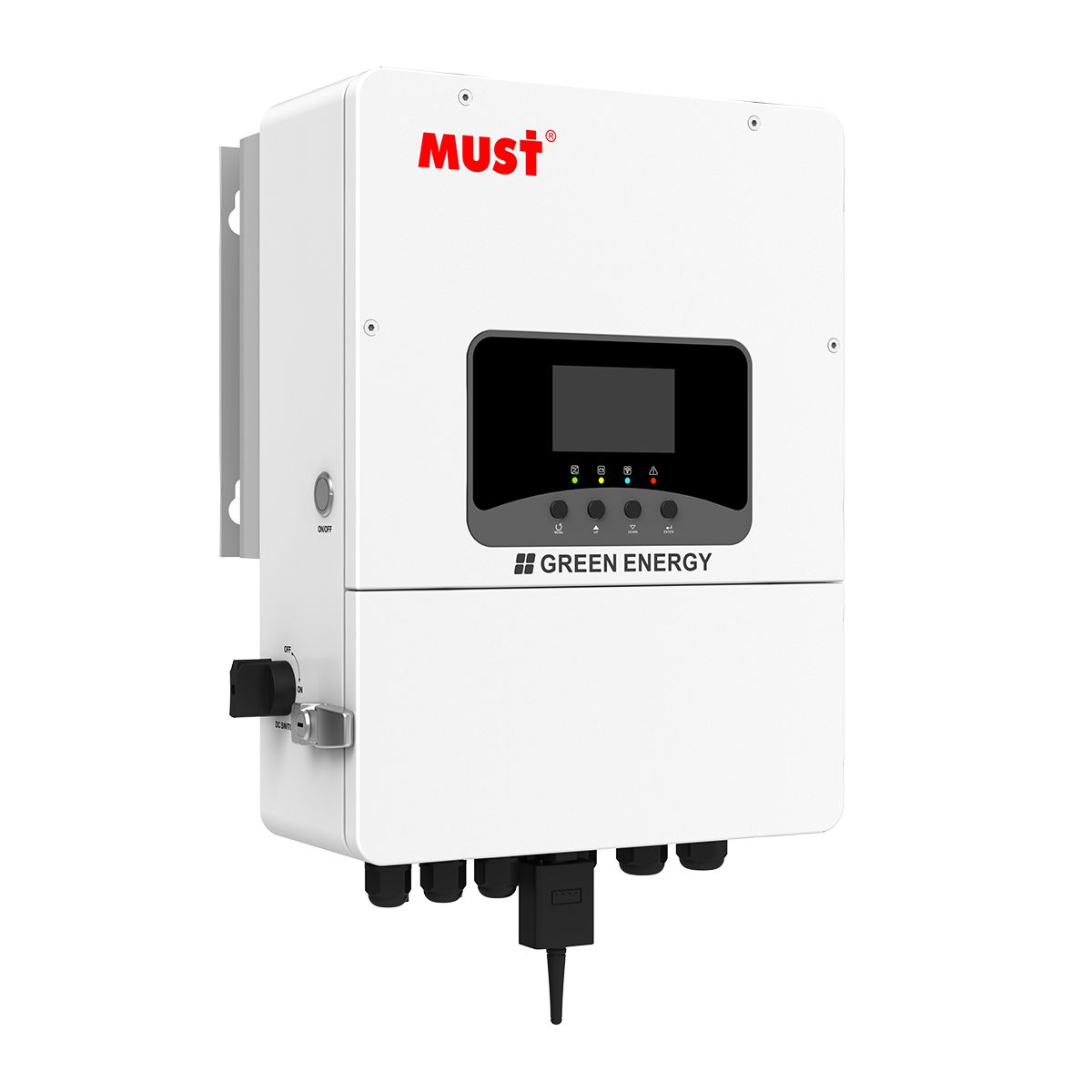

Description Key Features Smart Touch Interface: Equipped with a large 4.3-inch Touch Screen LED indicators, providing an intuitive, smartphone-like experience for monitoring and configuration. Massive Scalability: Supports Parallel operation for up to 9 units, offering significantly higher expansion capability than standard models, perfect for growing energy needs. High-Current Charging: Delivers powerful battery charging/discharging currents up to 190A (on 7.6K/8K models), ensuring batteries are topped up quickly even during short windows of sunlight. IP66 Outdoor Ready: Rugged IP66-rated enclosure completely seals against dust and high-pressure water jets, allowing for flexible installation on exterior walls. Optimized MPPT Performance: Features Dual MPPT Trackers (on 4KW models) with a wide voltage range (125~500V), compatible with high-power solar panels. Hybrid Versatility: Seamlessly manages energy between Solar, Battery, Grid, and Generator. Supports AC Coupling to retrograde existing on-grid solar systems into energy storage systems. Applications Smart Villas: The sleek design and touch screen fit perfectly in modern high-end homes. Outdoor Installations: Reliable operation in rain, snow, or dusty environments thanks to IP66 protection. Energy Storage Upgrades: Easily expand existing solar setups with AC coupling or parallel more units for increased power. Core Specifications Table Model PH11-3KL1 PH11-4KL1 PH11-5KL1 PH11-6KL1 PH11-7KL1 PH11-8KL1 AC Rated Power 3000W 4000W 5000W 6000W 7000W 8000W Battery Power 3600W 4000W 5000W 6000W 7000W 8000W Battery Voltage 48VDC 48VDC 48VDC 48VDC 48VDC 48VDC Max PV Voltage 550V 550V 550V 550V 550V 550V MPPT Trackers 1 2 2 2 2 2 Max PV Input 5400W 6000W 7500W 9000W 10500W 12000W Max Charge Current 90A 100A 120A 135A 175A 190A Dimensions (mm) 360*500*238 360*500*238 360*500*238 360*500*238 360*500*238 360*500*238 Net Weight 22 kg 22 kg 22 kg 22 kg 22 kg 22 kg Protection IP66 IP66 IP66 IP66 IP66 IP66 (Note: The series also includes a 7.6KW model with specs similar to the 7KW/8KW versions, excluded here for table brevity.)
