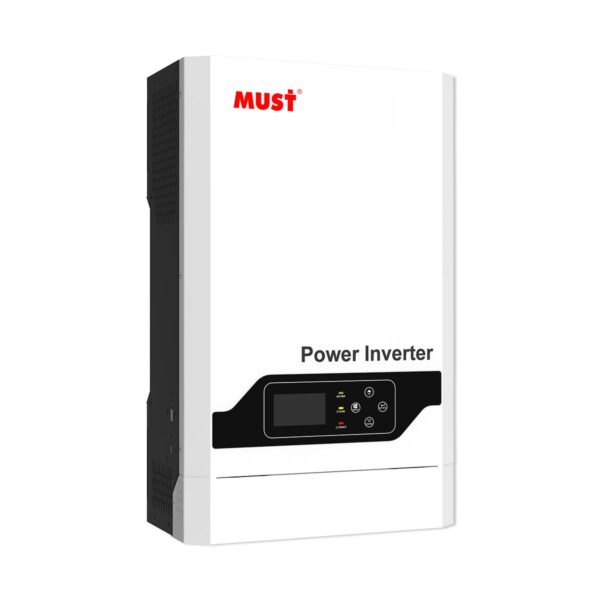

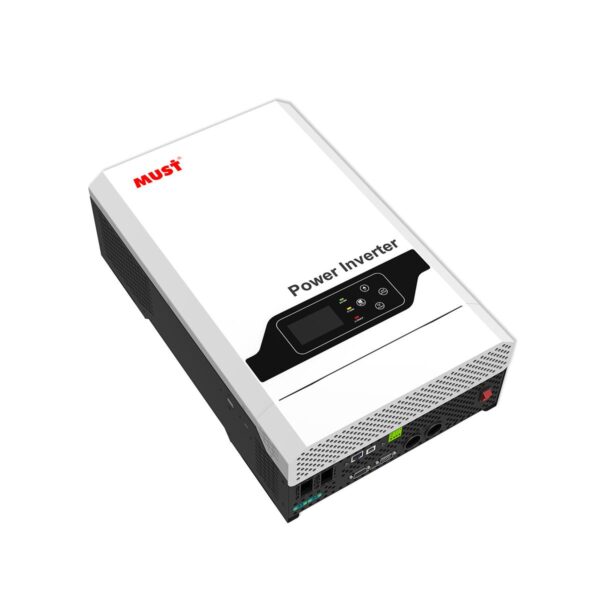

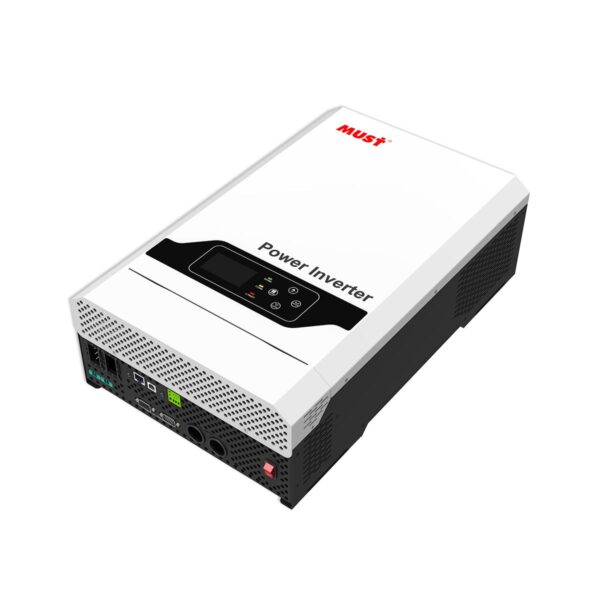

■ Pure sine wave inverter ■ Configurable input voltage range for home appliances and personal computers via LCD setting ■ Configurable battery charging current based on applications via LCD setting ■ Configurable AC Charger via LCD setting ■ Compatible to mains voltage or generator power ■ Auto restart while AC is recovering ■ Overload/ Over temperature/ short circuit protection ■ Smart battery charger design for optimized battery performance ■ Acid or Lithium select ■ Parallel operation with up to 3 units ■ WIFI remote monitoring (optional) ■ With BMS lithium battery communication function (CAN port) MODEL EP18-5248 PRO Rated output power 5200VA/5200W Surge Power 10400W AC INPUT Nominal Input Voltage 230Vac±5% Selectable Voltage range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) Frequency Range 50Hz/60Hz (Auto sensing) Inverter Efficiency(Peak) 90% INVERTER OUTPUT Output voltage waveform Pure sine wave Output Voltage Regulation 230Vac ± 5% Output Frequency 50Hz / 60Hz(Auto sensing) Power Factor ≈1 Transfer Time 10ms (UPS / VDE4105) / 20ms (APL) <50ms(For parallel operation) Nominal DC Input Voltage 48VDC Cold Start Voltage 46VDC Output Short Circuit Protection Line mode Circuit Breaker Battery mode Electronic Circuits BATTERY Battery voltage 48VDC Floating voltage 54.8V Overcharge Protection 60V CHARGER Charging Current(UPS) @Nominal Input Voltage Default:30A; MAX:80A Bulk Charging Voltage 56.4Vdc Floating Charging Voltage 54Vdc Charging Algorithm 3-Step GENERAL Mounting Wall mount Display LED LCD Parallel operation 3 units Operation Temperature Range -10℃ to 50℃ Storage Temperature -15℃ to 60℃ Standard Warranty 1 year MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D) 297.5*468*125mm CERTIFICATION & STANDARDS CE
