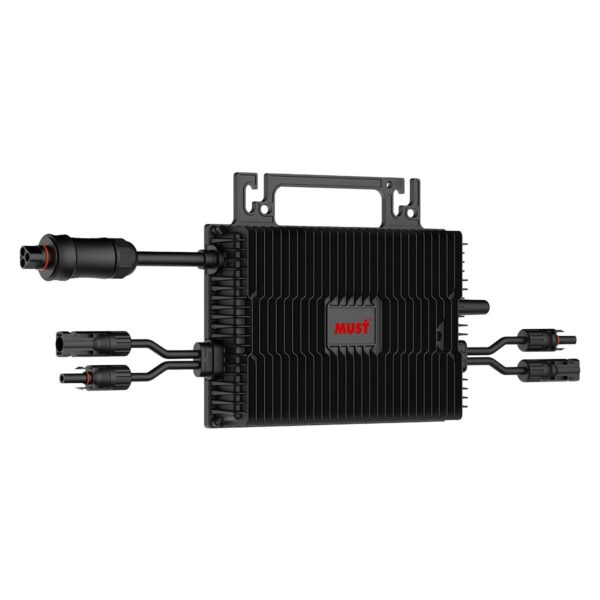

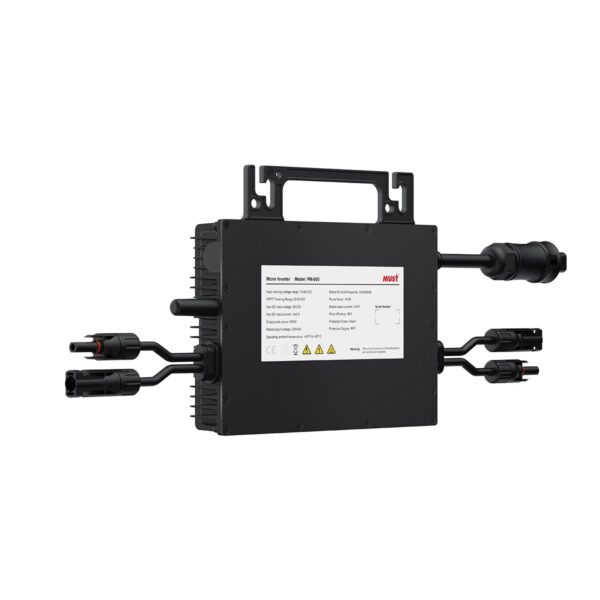

Inverter 600/800/1600/2000W IP67 waterproof Aluminum alloy body in high pressure oxidation process with good corrosion and oxidation resistance. The micro inverter waterproof according to IP67 to prevent rain drops from entering. Ultimate craftsmanship and comfortable installation design Inverter balcony power station is plug and play, so it can be installed without professional training or electrician. Connect the solar model to the MC-4 cable with two branch outputs. Intelligent Online Monitoring PV inverter has MPPT function, intelligent WiFi module and is equipped with a new generation of smart home WiFi monitoring system that can achieve intelligent online surveillance. Model PM-600 PM-800 PM-1600 PM-2000 Input Data(DC) Recommended solar panel input power 200-430W × 2 275-530W× 2 275-530W× 4 275-530W× 4 Number of DC input connections MC4 × 2 MC4 × 4 Max. input voltage 60V 60V PV Operating voltage 16-60V 16-60V Start-up voltage 22V 22V MPPT tracking range 22-55V 22-55V MPPT tracking accuracy >99.5% >99.5% Max. continuous input current 10A*2 14A*2 14A*4 17A*4 Output Data(AC) Max. continuous output power 600W 800W 1600W 2000W Nominal output voltage 230V 230V 230V 230V Operating voltage range 190-270V 190-270V 190-270V 190-270V Max. continuous output current 2.6A 3.47A 6.95A 8.69A Nominal output frequency 50Hz/60Hz Output frequency range 47.5-50.5Hz/58.9-61.9Hz Maximum units per branch 8set 6set 2set 2set THD <5% Power factor >0.99 Peak efficiency 96% Protective class Class I Protection Function Over/under voltage protection Yes Over/under frequency protection Yes Anti-islanding protection Yes Over current protection Yes Over load protection Yes Over temperature protection Yes Type of enclosure IP67 Operating ambient temp. -40℃ to 65℃ Indication light quantity Working status: Led light Wi-Fi Signal Led light Communication connection mode Wi-Fi / 2.4G Cooling method Natural cooling(no fan) Working environment Indoor and Outdoor Weight 2.5Kg 4.5Kg Size (L*W*H)mm 315*226*45 342*205*45 Standards VDE：VDE-AR-N 4105 CE-LVD：EN62109-1, EN62109-2 Rohs：IEC62321
