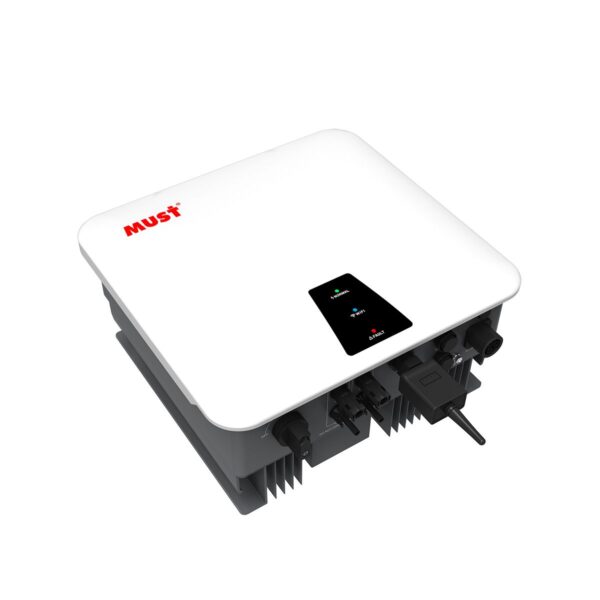

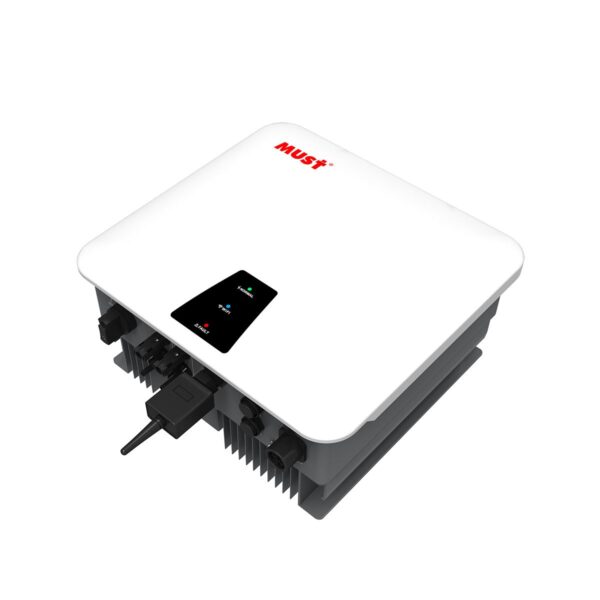

Features: • High Frequency On Grid Solar Inverter • MPPT efficiency up to 99.50% • Multiple communications: USB,WIFI etc • Monitoring inverters freely via mobile phone APP • Fanless low-noise design • IP66 water-proof and dust-proof MODEL PH59-3000M PH59-3600M PH59-4200M PH59-4600M PH59-5000M PH59-6000M Rated AC output power 3000W 3600W 4200W 4600W 5000W 6000W PV INPUT(DC) Maximum recommended DC power 3600W 4320W 5040W 5520W 6000W 7200W Nominal DC operating voltage 360V Maximum DC voltage 550V Start voltage 50V MPPT voltage range 40~550V Maximum input current 16A/16A No.of MPP tracker/ strings per MPP tracker 2/1 DC connection H4/MC4 GRID OUTPUT(AC) Nominal AC output power 3000W 3600W 4200W 4600W 5000W 6000W Max. AC output power 3000VA 3600VA 4200VA 4600VA 5000VA 6000VA AC grid frequency 50/60Hz ±5Hz Maximum output current 13.6A 16A 19A 20.9A 22.7A 27.2A AC nominal voltage 220V/230V AC voltage range 180-280V Total harmonic distortion (THDi) <3% Rate power factor 1 Power factor adjustable range 0.8 leading ~ 0.8 lagging AC grid connection type L N PE EFFICIENCY Maximum efficiency 98.0% 98.0% 98.1% 98.1% 98.2% 98.2% Euro-efficiency 96.8% 96.8% 97.0% 97.0% 97.2% 97.2% MPPT efficiency 99.5% Self-Consumption night <1W PROTECTION DEVICES Output over current protection Yes Output AC overvoltage protection Yes DC reverse polarity protection Yes DC switch Yes Ground fault monitoring Yes Integrated all-pole sensitive leakage current monitoring unit Yes PHYSICAL Machine Dimension (W*H*D)(mm) 402*378*195 Package Dimension (W*H*D)(mm) 493*315*468 N.W(kg) 15.5 G.W(kg) 19.1 INTERFACE DC connection H4/MC4 AC connection Connector Display LED Communication interfaces WIFI/RS485/GPRS(opt) ENVIRONMENT Ingress protection rating IP66 Humidity 0-100% Operating temperature range -25°C~ 60°C With derating above 45°C Cooling concept Natural Noise emission(typical)[dB] ≤35dB(A) Self-consumption night <1W Topology Transformerless Altitude 4000m OTHERS Topology transformerless Warranty Standard 5years/10 years(opt.) CERTIFICATION & STANDARDS CE-EMC LVD(EN6100-6-3, 2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011) IEC60529; EN50549-1:2019; RD1699, UNE206006:2011, UNE206007:2013 Poland Type A (NC RfG:2016, PSE:2018, PTPiREE:2021) G98, G99
